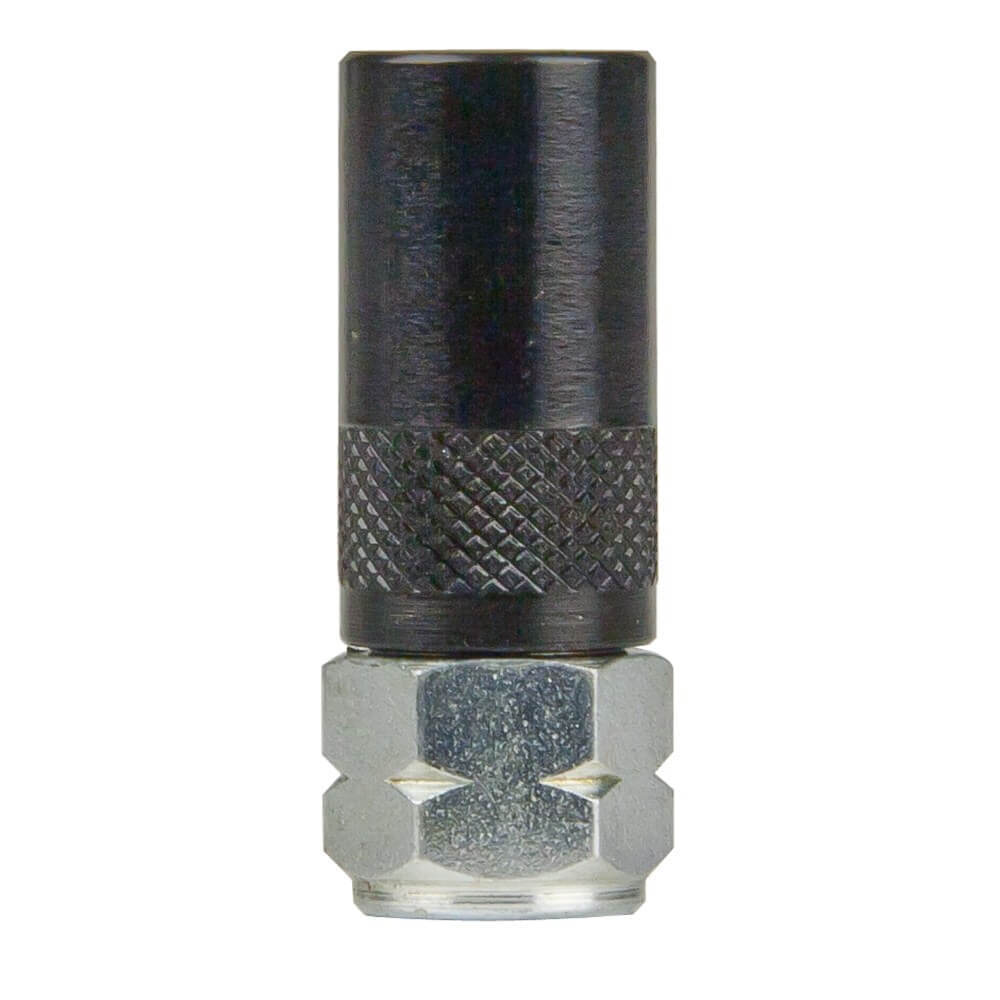

Macnaught 1/8" BSP SUPERGRIP Hydraulic Coupler KY

The Macnaught KY SUPERGRIP is the standard coupler supplied with Macnaught grease guns. It snaps onto a grease nipple, grips with its jaws and twists and pulls off when the job is done. It is designed to fit most grease nipples and it suits any greasing system.

BSP is the British pipe thread used on most Australian and NZ equipment. The inlet is female, which means the thread is inside the coupler and it screws onto the end of your grease gun or hose. How to pick the right KY: choose the KY with a 1/8" BSP inlet for a 1/8" BSP gun, the KY-N for a 1/8" NPT gun, or the KY-M for an M10X1 gun. If you want a coupler that releases with one hand and has a built-in pressure relief, look at the KY+ safety coupler.

Where this product is used

• Replacing a worn or lost coupler on a Macnaught grease gun
• Greasing machinery fitted with standard grease nipples
• Hand and air-operated greasing equipment

Features

• Snaps onto the grease nipple and twists and pulls off
• Superior jaw design for maximum grip
• Robust, compact body
• Reliable unblocking with a leak-free seal
• Up to 12,000psi
• 1/8" BSP female inlet
• Suitable for use with any greasing system
• Designed to fit most grease nipples and grease guns
• Seals are replaceable: KY3S SUPERGRIP seals come in a pack of eight

Key specifications

Supplied with

• 1 x KY SUPERGRIP coupler, 1/8" BSP female inlet
