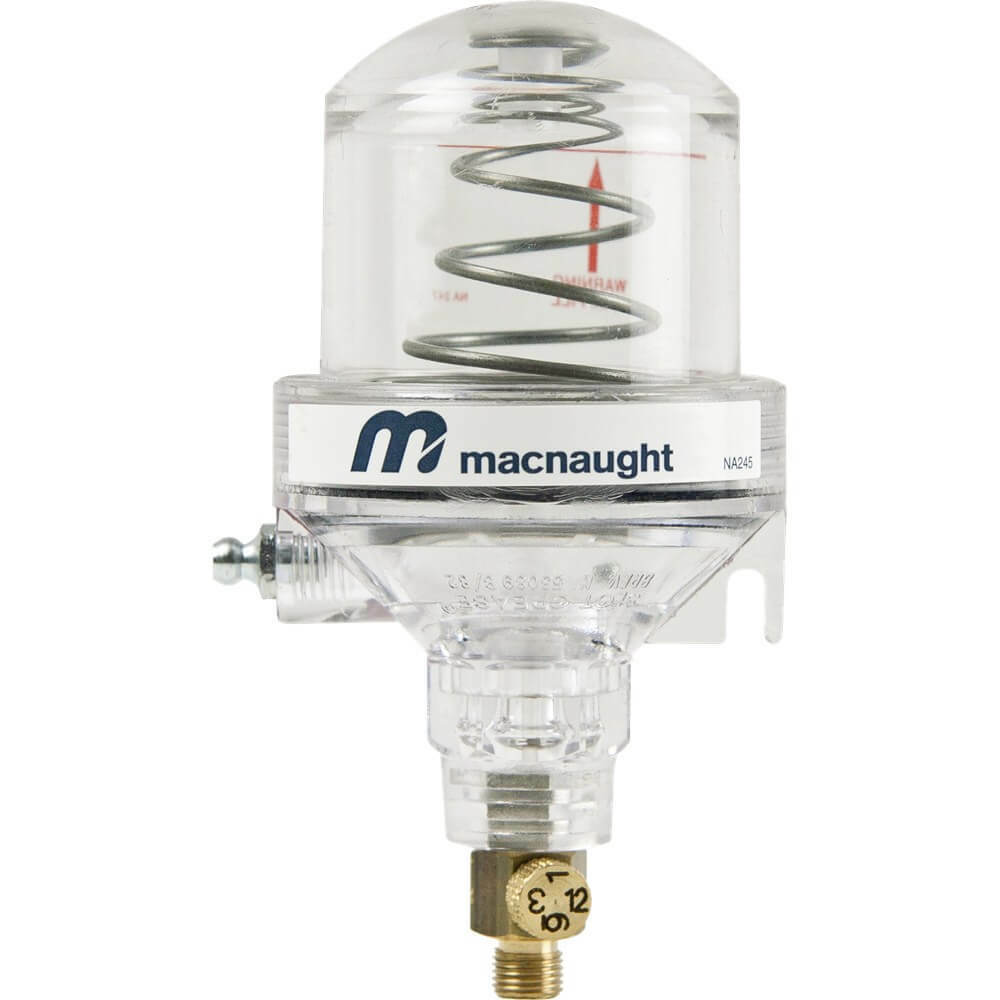

Macnaught 100ml Refillable Bearing Lubricator MCGL100-01

Designed to provide consistent lubrication in hard to reach, hidden, or easy to forget greasing points on fixed plant machinery, conveyor systems, process machinery, block bearings, bushings and joints. The lubricators are supplied with a timing dial adjustable between 1, 3, 6 or 12 months to set dispense rate as well as two silver pressure springs to accurately adjust for grease viscosity and temperature. The lubricators can be easily filled through the grease nipple located on the side of the lubricators. Made from UV stable, impact resistant Lexen® these continuous bearing lubricators can be mounted in any orientation and provide refillable longevity in temperatures from -23ºC to 132ºC.Package includes: Automatic lubricator; Two silver pressure springs.

Where this product is used

• Bearing and fitting lubrication on plant, trucks and trailers
• Workshop grease gun service applications

Key specifications

Technical specifications

• 100ml capacity
• Compatible with grease viscosities up to NLGI 2
• Temperature range: -23ºC to 132ºC
• Outlet thread: 1/8” BSP with an adaptor to M10x1
• Spring-actuated allows use in many varying situations
• The lubricators are supplied with a timing dial adjustable between 1, 3, 6 or 12 months

Product features

• Strong Transparent Lexen® - Easy to see grease level
• Grease Nipple (Filling Point) - Easy filling using standard grease gun
• Flow Adjustment Screw
• Supplied with 2 Springs - Heavy gauge spring - Strong tension Lighter
• 100ml Capacity - For greases up to NLGI No.2
• 1/8" BSP Adaptor - Fitted at the bottom of the M10X1 thread

Selecting the right option

Choose a grease gun or dispensing system to match your cartridge/bulk format and the pressure your application needs, and match spares and seal kits to the exact model they're built for.
