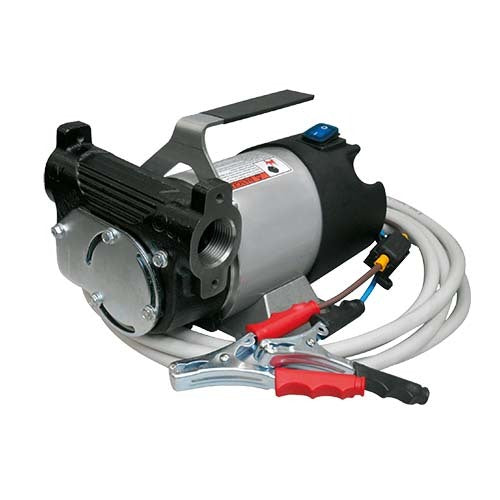

Macnaught 12V High Flow Diesel Pump Only 85L/min Flow Range
Available
It is built for performance and reliability in harsh Australian conditions, and moves diesel from bulk tanks, service trucks, utes, 205 L drums and IBCs. Flow is 85 L/min free flow. Free flow means nothing is holding the fluid back, so expect less in real use.
The fuse is 40 A and the duty cycle is 30 minutes. It is a self-priming vane pump with a built-in poppet bypass and a built-in strainer. Inlet and outlet are 1" BSPP (female). BSPP is a parallel pipe thread and female means the thread is on the inside. How to choose: the 40 L/min pumps (AFP12-40LP) are lighter duty. If you want hoses and a nozzle in the box, the AHFP85L-12A is the 85 LPM kit.
Where this product is used
- Diesel transfer from bulk tanks
- Diesel transfer from service trucks and utes
- Pumping diesel from 205 L drums
- Pumping diesel from IBCs
Features
- Flow of 85 L/min (free flow)
- 12V DC with a 40 A fuse and a 30 minute duty cycle
- Self-priming vane pump with a built-in poppet bypass
- 1" BSPP (female) inlet and outlet
- Built-in strainer for protection
- Quiet motor operation
- Wetted materials are cast iron, sintered steel, acetal and NBR rubber
- Supplied as the pump only with a 4 m power cable and alligator clips
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | AHFP12-85LP |
| Part number | AHFP12-85LP |
| Type | Self-priming vane pump, pump only |
| Voltage | 12V DC |
| Flow rate | 85 L/min (free flow) |
| Duty cycle | 30 minutes |
| Fuse | 40 A |
| Inlet and outlet | 1" BSPP (female) |
| Power cable | 4 m with alligator clips |
| Wetted materials | Cast iron, sintered steel, acetal, NBR rubber |
| Fluid | Diesel |
Supplied with
- 12V high flow pump
- 4 m power cable with alligator clips
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Macnaught 12V High Flow Diesel Pump Only 85L/min Flow Range
SKU: A0158233 | Model: AHFP12-85LP
The AHFP12-85LP is a 12V diesel pump only. It moves 85 L/min (free flow) with a 30 minute duty cycle and a 40 A fuse.
