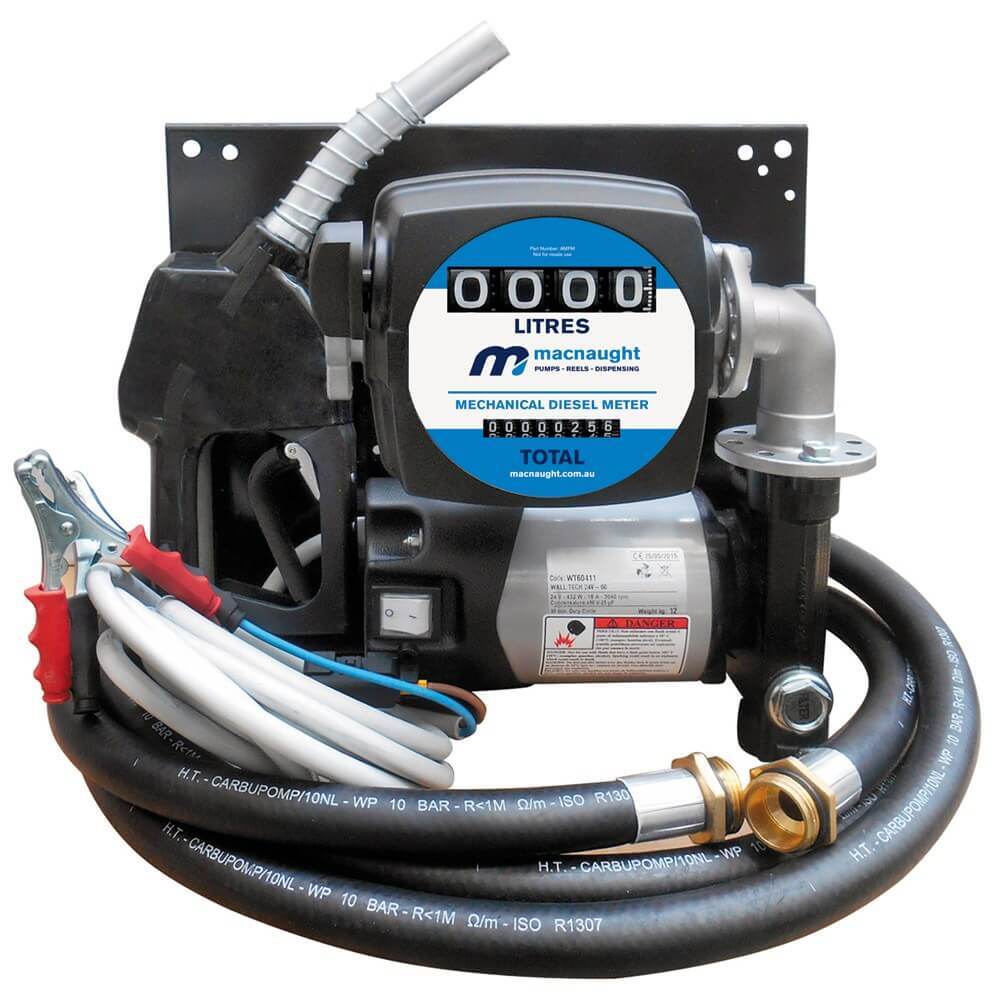

Macnaught 12V Wall Mount Diesel Pump Kit AHFP12A

The Macnaught AHFP12A is a 12V wall mount diesel pump kit that comes fully assembled with a mechanical flow meter and an automatic nozzle. It is a complete solution that mounts next to a bulk diesel tank, and it can also be mounted on a service truck. Flow is up to 60 LPM (litres per minute). It is for diesel only.

In the kit you get the 12V DC pump, the AMFM mechanical flow meter with a 4 digit display that can be reset and calibrated, a 19mm x 4m delivery hose, the automatic nozzle, a wall mount plate and a 4 m power cable with fuse holder and alligator clips. The inline fuse is 40 A and it must stay fitted. Inlet and outlet are 1" BSPP (female). BSPP is a parallel pipe thread and female means the thread is on the inside. How to choose: the AFP12 kits give up to 40 L/min with no meter. This kit gives up to 60 LPM with a meter and a wall mount.

Where this product is used

• Fixed diesel point next to a bulk tank
• Diesel transfer from a service truck
• Utility vehicle diesel transfer
• Metered diesel dispensing

Features

• Flow of up to 60 LPM
• 12V DC pump with a 30 minute duty cycle
• Comes fully assembled with a mechanical flow meter (AMFM) and an automatic nozzle
• Meter has a 4 digit display that can be reset and calibrated, with accuracy of plus or minus 1%
• 1" BSPP (female) inlet and outlet with a built-in strainer
• Diesel only, and the fluid should be no thicker than diesel
• Maximum prime height of 2 m, so the pump can lift fuel up to 2 m
• Do not run the pump dry or in bypass mode with the nozzle closed for more than 2 minutes

Key specifications

Supplied with

• 12V DC high flow pump
• AMFM mechanical flow meter
• 19mm x 4m delivery hose
• Automatic nozzle
• Wall mount plate
• 4 m power cable with fuse holder and alligator clips
• 25mm x 2m suction hose

Related Macnaught products

• Macnaught Pump Repair Kit AHFP12A-1K: Pump repair kit
• Macnaught Poppet Valve Kit AHFP12A-2K: Poppet valve kit
