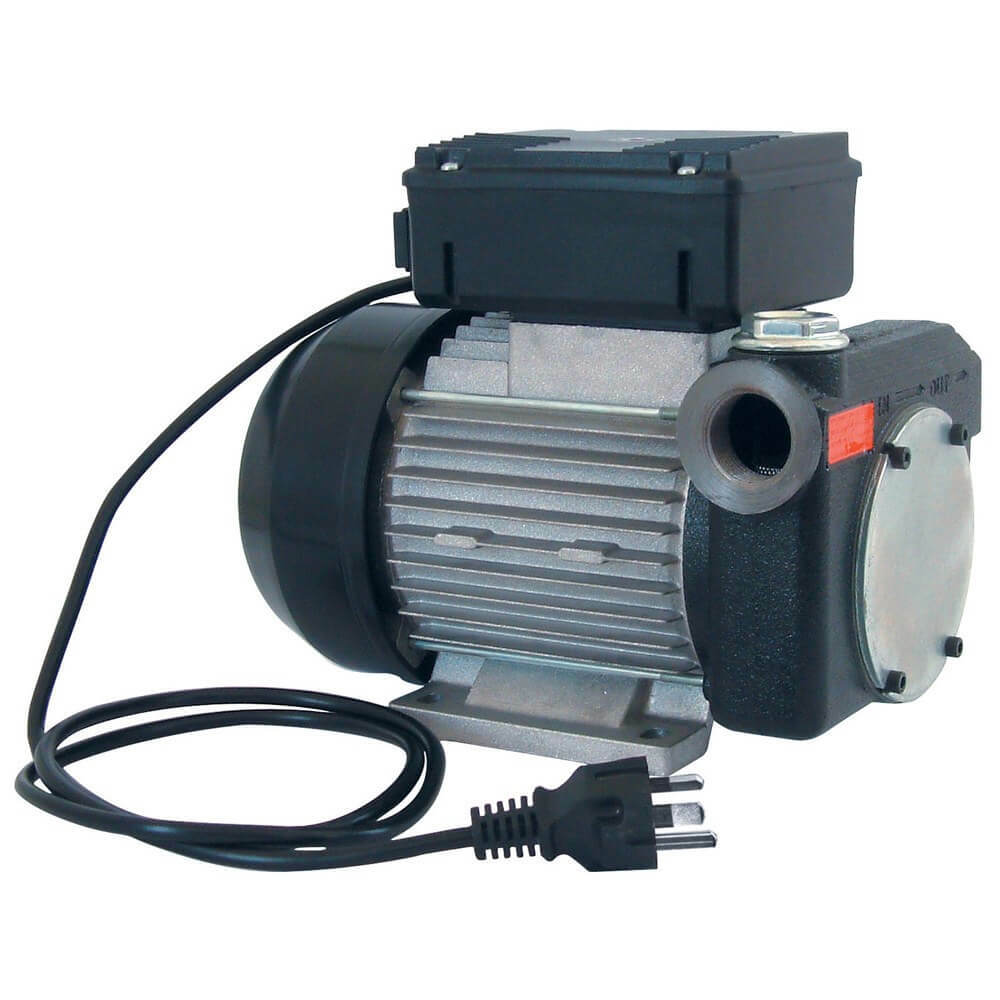

Macnaught 240V High flow Diesel Pump - 150LPM AHFP150LPM

The Macnaught AHFP150LPM is a 240V electric diesel transfer pump rated at 150 LPM (litres per minute). It runs on 240V mains power instead of a 12V or 24V battery, so it suits sites with mains power at the tank. It is built as a self-priming rotary vane pump with a self-ventilated induction motor, a built-in bypass valve, a stainless steel filter and a cast iron body with an anti-corrosion coating. It is for diesel use only. It has a 30 minute duty cycle, and the pump must only run for 30 minutes before cooling.

This is the pump only. Inlet and outlet are 1" BSPP (female). BSPP is a parallel pipe thread and female means the thread is on the inside. Maximum current is 14.5 A. How to choose: the three 240V pumps move 70, 100 and 150 LPM and draw 2.3, 4.1 and 14.5 A. Pick the flow you need, then check your power supply can handle the current.

Where this product is used

• Refuelling from a bulk diesel tank where mains power is available
• High flow diesel transfer
• Fixed diesel transfer point set up with your own hose and nozzle

Features

• 150 LPM flow
• 240V AC with a maximum current draw of 14.5 A
• 30 minute duty cycle
• 1" BSPP (female) inlet and outlet with a built-in strainer
• Self-priming rotary vane pump with a built-in bypass valve, and the pump can lift fluid up to 2 m
• Cast iron body with anti-corrosion coating and a stainless steel filter
• IP55 motor protection rating
• Diesel use only
• Fit a 30mA safety device, not to use a patch cord to extend the power cable. Do not run the pump dry for more than 3 minutes

Key specifications

Supplied with

• Pump only
• Not included: hose, nozzle or filter (nozzles are as accessories)
