Macnaught 24V Electric Diesel Pump Kit - Manual Nozzle AFP24M
Available
The Macnaught AFP24M is a 24V electric diesel pump kit with a manual nozzle. It is a ready-to-use kit for moving diesel out of a drum, a bulk tank, a service truck or a ute. It is an economical alternative to a hand pump, with flow of up to 40 L/min (free flow). Free flow means the pump is moving fluid with nothing holding it back, so expect less in real use. It runs off a 24V battery using the 4 m power cable with alligator clips.
In the kit you get the pump, a 2 m suction hose with strainer, a 19mm x 4m delivery hose, the manual nozzle, a hose tail and clamp, and the 4 m power cable with fuse holder and alligator clips. No meter or filter is included. Add the Macnaught digital diesel meter and a filter for best control and accuracy. The pump is for diesel only. How to choose: the AFP12 kits run on 12V and the AFP24 kits on 24V. For more than 40 L/min, look at the AHFP12A wall mount kit (up to 60 LPM) or the 85 LPM kits.
Where this product is used
- Moving diesel from a bulk tank
- Moving diesel from a drum
- Diesel transfer from a service truck
- Diesel transfer from a utility vehicle
Features
- Flow of up to 40 L/min (free flow)
- 24V DC pump, drawing 12 A through an inline 15 A fuse. The fuse must stay fitted
- Self-priming vane pump with a built-in bypass valve. Self-priming means it can draw fuel up from a drum or tank by itself, up to 2 m
- 30 minute duty cycle, which is the longest it should run at one go
- Diesel only, and the fluid should be no thicker than diesel
- 3/4" BSP (female) inlet and outlet. BSP is a standard pipe thread and (female) means the thread is on the inside of the port.
- Remote mount design, suited to use with drums or bulk tanks
- Maximum pressure of 1.3 bar (18 psi), held by the built-in bypass valve
- The motor is not explosion proof
- Do not run the pump with the nozzle closed, or dry, for more than 2 minutes
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | AFP24M |
| Part number | AFP24M |
| Type | Self-priming rotary vane pump kit |
| Voltage | 24V DC |
| Current | 12 A |
| Inline fuse | 15 A |
| Nozzle | Manual |
| Flow rate | Up to 40 L/min (free flow) |
| Duty cycle | 30 minutes |
| Maximum pressure | 1.3 bar (18 psi) |
| Inlet and outlet | 3/4" BSP (female) |
| Fluid | Diesel only |
| Maximum suction distance | 2 m |
| Delivery hose | 19mm x 4m |
| Suction hose length | 2 m |
| Power cable | 4 m with alligator clips |
| Motor protection | IP55 |
| Operating temperature | -20 degC to +50 degC |
| Wetted materials | Cast iron, sintered steel, POM, NBR |

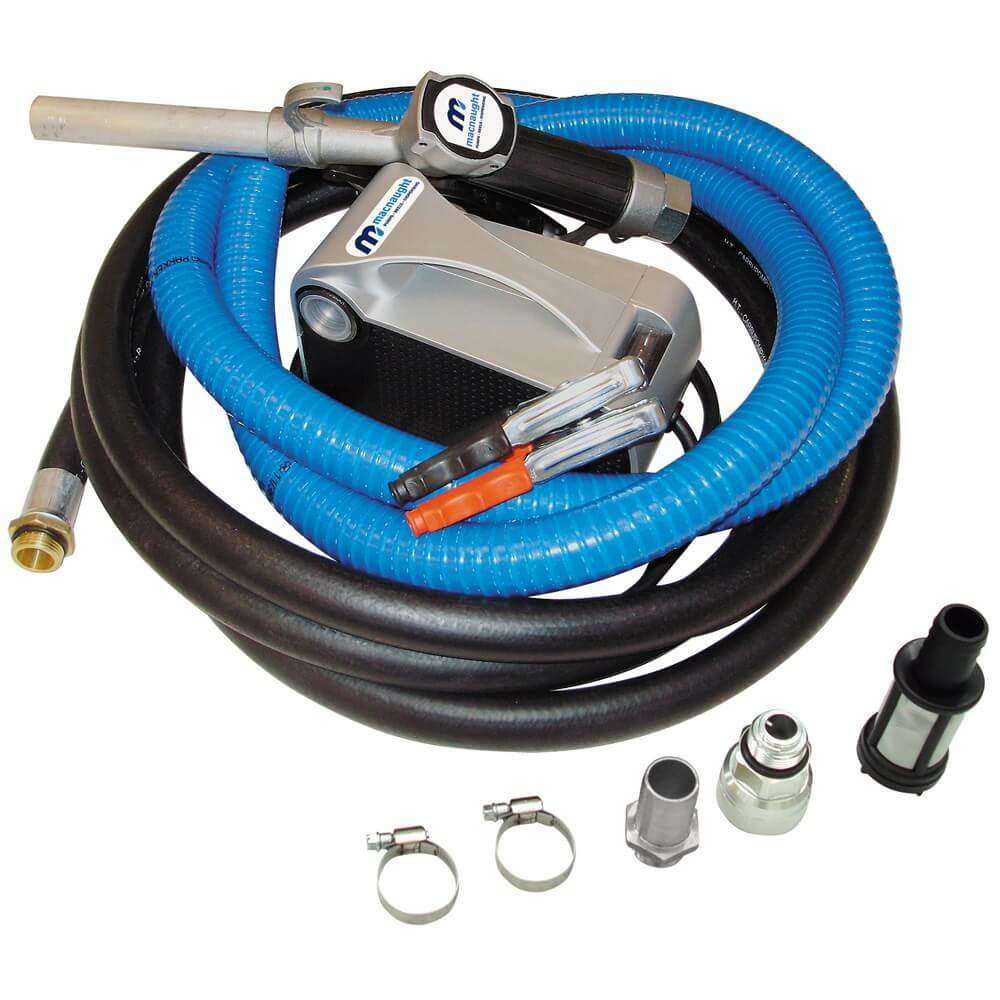

Supplied with
- Pump
- 2 m suction hose with strainer
- 19mm x 4m delivery hose
- Manual nozzle
- Hose tail and hose clamp
- 4 m power cable with fuse holder and alligator clips
Related Macnaught products
- Macnaught 12V Electric Diesel Pump Kit - Manual Nozzle AFP12M: Other size or version
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Macnaught 24V Electric Diesel Pump Kit - Manual Nozzle AFP24M
SKU: A0082597 | Model: AFP24M
The AFP24M is the 24V kit with the manual nozzle. It gives up to 40 L/min (free flow) for diesel only and comes with a 2 m suction hose, a 19mm x 4m delivery hose and a 4 m power cable with alligator clips. The AFP24A is the same kit with the automatic nozzle and the AFP12M is the 12V version.
