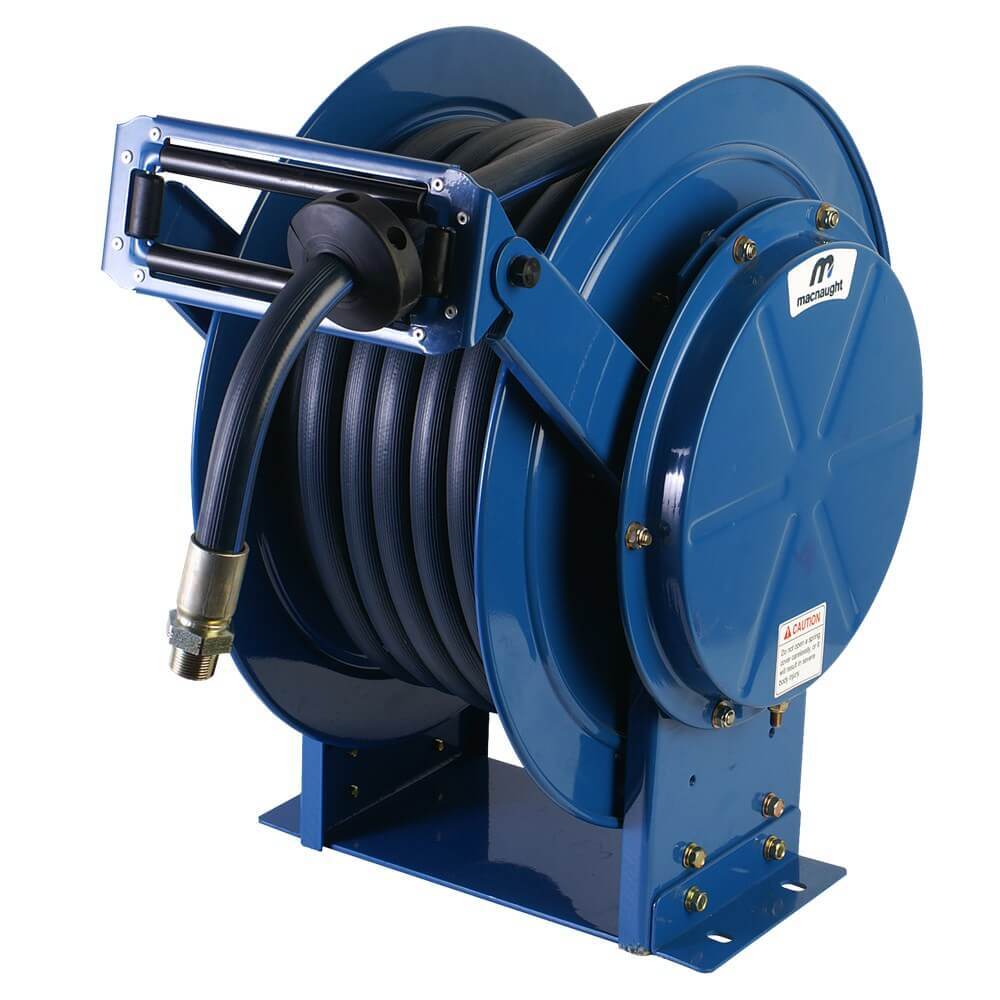

Macnaught MDTP2520-01 Twin Pedestal Diesel Reel, 20m
Available
The Macnaught MDTP2520-01 is a heavy-duty, spring-rewind diesel hose reel. It comes fitted with 20m of 25mm (inside diameter) steel wire braided rubber hose and has 1" BSP connections. It is suited to truck mount and mine applications. Maximum operating temperature is 60°C.
Twin pedestal means the reel drum is carried on two supports. BSP is the British Standard Pipe thread. (F) means female and (M) means male. It weighs 44kg. The feed hose that connects the reel to your supply, and its inlet fitting, are not included. If 10m of hose is enough, the MDTP2510-01 is the shorter version. If you want to fit your own hose, look at the bare MRTP2520N-01.
Where this product is used
- Diesel transfer on trucks, plant and fuel trailers
- Mine site fuel points that need a long, large-bore hose
- Fuel bays where the hose has to reach vehicles on both sides
Features
- Fitted with 20m x 25mm i.d. Steel wire braided rubber hose
- Maximum operating temperature of 60°C
- 1" BSP reel inlet and 1" BSP hose outlet
- Heavy-duty spring-rewind design
- Wall and floor mounting bracket built into the reel
- Feed hose and feed hose inlet are not included
- Weight of 44kg
- Skin contact with pressurised air or fluid could result in severe bodily injury
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | MDTP2520-01 |
| Part number | MDTP2520-01 |
| Type | Twin pedestal, spring-rewind, heavy duty |
| Fluid | Diesel |
| Hose | 20m x 25mm i.d. Steel wire braided rubber |
| Maximum temperature | 60°C |
| Reel inlet | 1" BSP (F) |
| Hose outlet | 1" BSP (M) |
| Weight | 44kg |
Supplied with
- Reel with 20m x 25mm i.d. Hose assembly
- Built-in wall and floor mounting bracket
- Feed hose and feed hose inlet are not included
