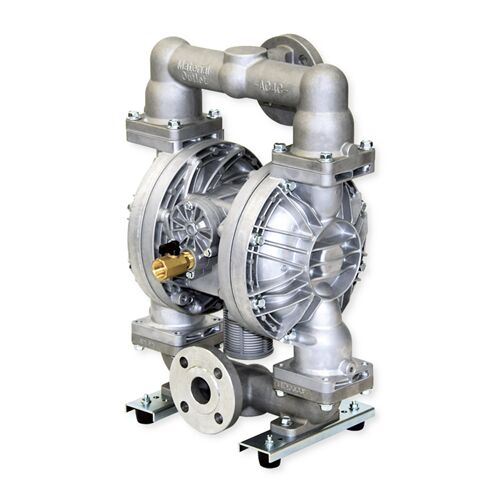

Macnaught Air Operated Double Diaphragm Pump - 1 1/2"1

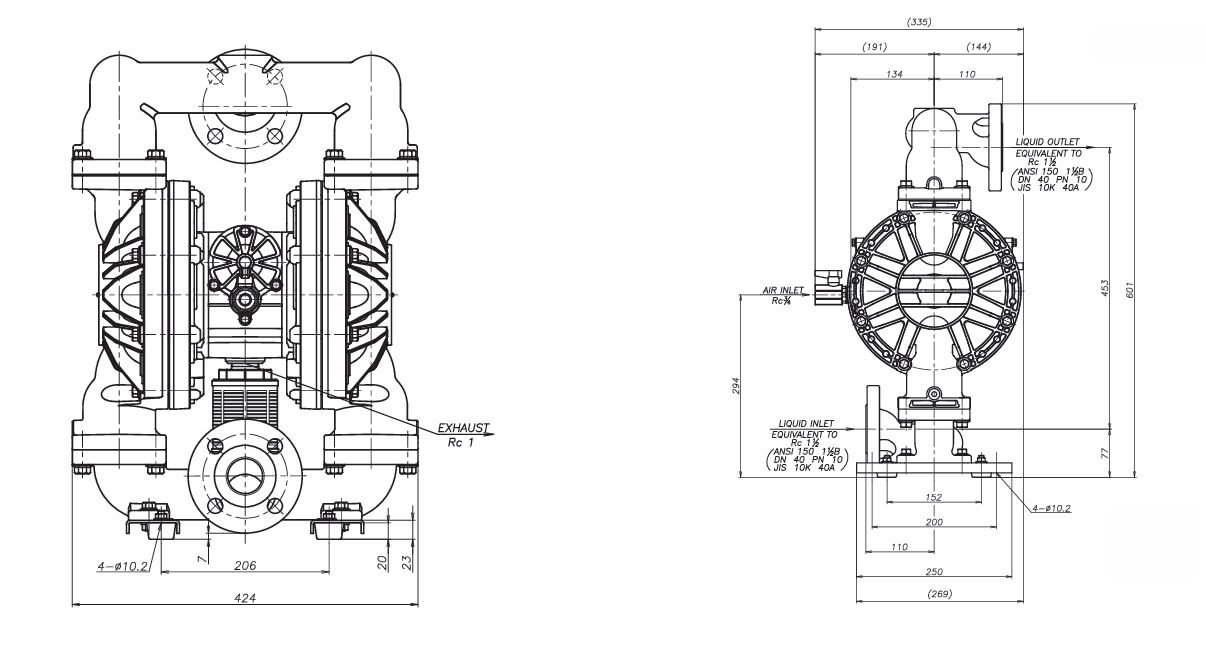

Macnaught Air Operated Double Diaphragm Pump - 1 1/2"2

Specifications +

Technical Specifications

Max air pressure: 20 to 101 PSI or 1.37 to 6.96 bar
Port Definition: Center Port
Inlet/outlet: 1½" BSPT (F) & 1½" DIN
Air inlet: 3/4" BSPT (F)
Max flow rate: 600LPM (158 GPM)
Suction lift : 5.5m (dry)
Suction lift: 8m (Wet)
Max solids handling: 8mm
Fluid temperature: 0ºC – 70ºC & (32ºF - 158ºF)
Wetted Parts (Diaphragm/Balls/Seats): Aluminium, SUS (Cast Iron), NBR
Height: 60.1cm, Width: 42.4cm, Depth: 33.5cm
Air Motor: Aluminum

Features & Benefits +

Features & Benefits

Handles Slurries: Transfers high-viscosity, abrasive slurries.
Effortless Maintenance: Easily accessible air motor for quick and hassle-free servicing.
Dry-Run Safe: No overheating, runs without liquid.
Deadhead Resistant: Withstands closed discharge without damage.
Self-Priming: Eliminates the need for manual priming.
No inline lubrication required: Reduces maintenance and operational costs.
Diaphragm: Nitrile Buna-N (NBR).
Pump Wetted Parts: Aluminium and Nitrile Buna-N (NBR).
Threaded Flange Manifolds: Provides a wider option of both flange and threaded connection availability.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Macnaught Air Operated Double Diaphragm Pump - 1 1/2"

SKU: A0210546

Type: Diaphragm Pump

$3,031.88

Inc. GST

💧Professional Grade Construction

⚙Air Operated Double Diaphragm

📐1/2" Sizing

🔩Fuel & Fluid Transfer

🏗Workshop & Fleet Maintenance

☑10 Year Performance Warranty

Available

Product Highlights −

Macnaught Air Operated Double Diaphragm Pump - 3/4"

Experience the next level of fluid transfer efficiency with our Max Flow Series Double Diaphragm Pump.
Made in Japan for precision and durability, these pumps operate at a 1:1 ratio with a 600 LPM flow rate, making them ideal for high-volume, low air consumption across industries.
Dependable, low-maintenance, and versatile.
Designed to keep your operations running smoothly.

Package Includes

1 unit of Diaphragm Pump

Note: Recommended fluids (Oils and Engine Coolants (new & used), Oily water, Antifreeze, Diesel, Paints, Mild Adhesives)
