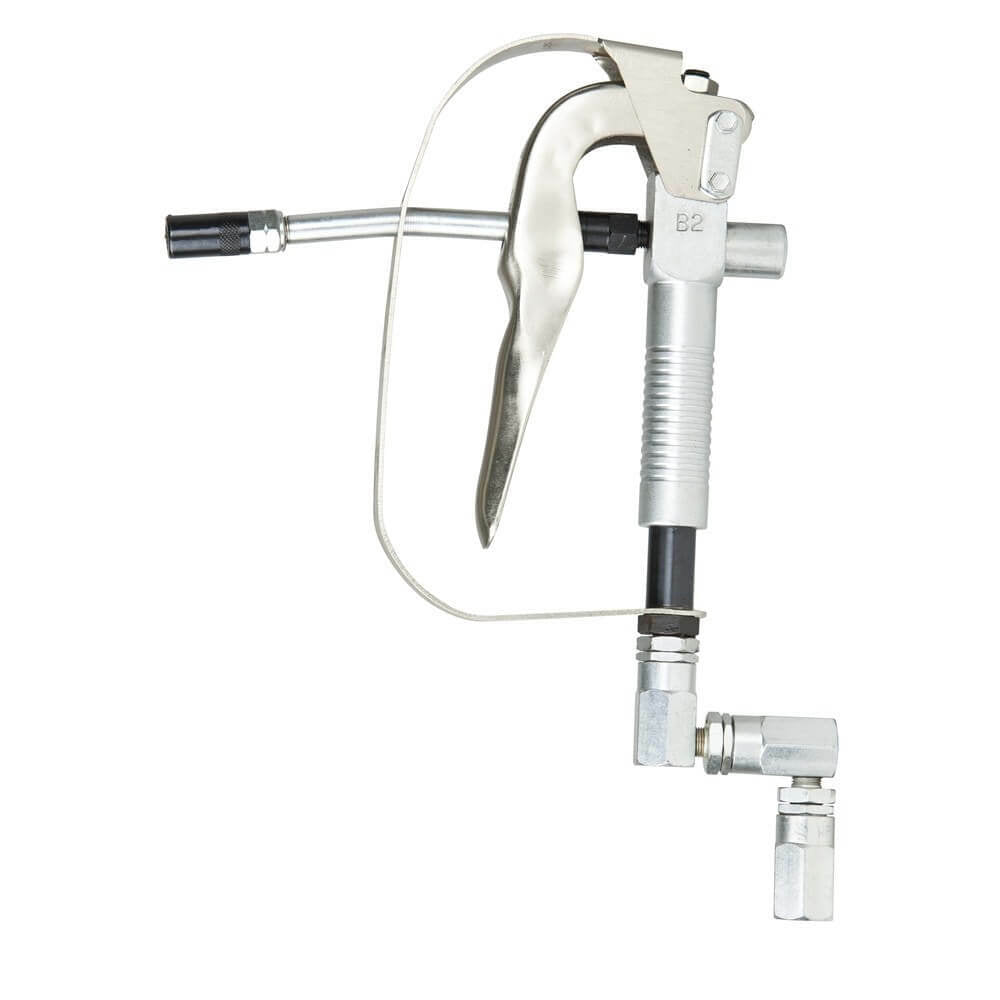

Macnaught B2 Grease Booster Gun with Safety Guard

The Macnaught B2-SG is a booster gun for air-powered grease pumps with a trigger hand guard fitted to protect the operator. It boosts the grease pressure at the nipple.

A booster gun is not a hand-filled grease gun. It has no barrel or cartridge. It connects by a hose to an air-powered grease pump and boosts the grease pressure at the nipple. When a nipple is seized and no grease flows, you pull the trigger several times and each squeeze boosts the pressure until grease flows. The inlet is 1/4" NPT(F), an American pipe thread (female). It suits grease up to NLGI 2. NLGI 2 is the common general-purpose grease grade. Choose the B2-SG if you want the hand guard on the trigger. Choose the plain B2-01 if you do not need the guard.

Where this product is used

• Clearing seized or blocked grease nipples on plant fed by an air-powered grease pump
• Fitting to a P3 POWERLUBE, P6 or P8-11 MAXILUBE greasing system
• Mine site, fleet and heavy equipment greasing

Features

• Boosts the grease pressure from an air-powered pump to overcome line resistance or nipple blockages
• 1/4" NPT(F) inlet
• Fitted as standard to the P3 POWERLUBE, P6 and P8-11 MAXILUBE greasing systems
• Suits grease up to NLGI 2
• Each trigger squeeze boosts the pressure until grease flows
• Service kit B2-1K available
• Fitted with a trigger hand guard to protect the operator
• Keep your hands away from the nipple and coupler connection at all times
• Use away from heat, fire or explosive atmospheres, and disconnect the air supply before servicing

Key specifications

Supplied with

• B2-SG booster gun with trigger hand guard
• ZSB high-pressure grease swivel

Related Macnaught products

• Macnaught Service Kit For B2-1K: Service kit for B2 and B3 guns
• Macnaught Inlet Body/Guard Set For B2-1SGK: Trigger guard kit and inlet body for the B2 booster gun
