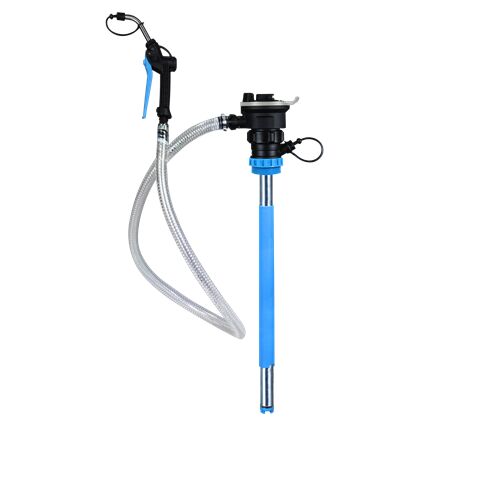

Macnaught BP205X-DUNA BOP DEF/Urea Stem Kit

The Macnaught BP205X-DUNA is the DEF/urea pump stem kit for the Macnaught BOP (battery operated pump) range. It has a stainless steel pump stem for 60 to 205 L drums, an Easy Control gun and a 2 m reinforced hose. It does not include the power head, battery or charger, so it swaps onto a BOP power head you already own.

It pumps DEF/urea at up to 7.23 L/min, and also engine oil, gear oil, hydraulic oil up to SAE140, ATF and engine coolant. If you do not own a BOP power head, the BP205S-DUNA starter kit is the one to choose. Flush the pump with water after using DEF/urea to prevent crystallisation. Do not use flammable fluids in the BOP pump and do not let it run dry.

Where this product is used

• Transferring DEF/urea from 60 to 205 L drums
• Pumping engine oil, gear oil and hydraulic oil from 60 to 205 L drums
• Dispensing ATF and engine coolant

Features

• Stainless steel suction tube resists corrosion caused by urea and its by-products
• Flow rates: DEF/urea up to 7.23 L/min, lubricating oils up to 4.5 L/min (SAE40 at 20-25°C), heavy oils up to 2.4 L/min (SAE140 at 20-25°C), ATF up to 6 L/min and coolant up to 6.2 L/min
• Does not include the power head, battery or charger
• Needs a BOP power head (BP20-PH), battery (BPB-20AH) and charger (BPC-A) to run
• Sealed wetted parts for zero contamination
• Easy Control gun gives simple single-handed on-demand flow
• Adjustable suction tube length suits different drum sizes
• Drain-back valve and nozzle holder catch gun residue
• Comes with a 2 m hose, and a 3 m hose kit is available as an accessory
• Flush with water after using DEF/urea to prevent crystallisation

Key specifications

Supplied with

• Stainless steel pump stem for 60 to 205 L drums
• Easy Control dispensing gun
• 2 m reinforced hose
• Power head, battery and charger are not included
