Macnaught BOP205L Universal Pump Starter Kit W/ Inline Meter Ver. AU/NZ
Available
The Macnaught BP205S-UNA-IM is a BOP (battery operated pump) starter kit for 60 to 205 L drums with a BOP inline meter. The pump runs on an 18V rechargeable battery and pumps engine oil, gear oil, hydraulic oil (up to SAE 140), ATF and engine coolant. It is designed and made in Australia.
The kit has the modular power head, a multi-purpose pump stem for 60 to 205 L drums, an Easy Control single-handed dispensing gun, a 2 m reinforced hose and the inline meter. The meter (IM012EB-01) shows how much you dispense. It reads up to 10 L/min with accuracy of +/-2% of reading. The BOP range runs on an 18V rechargeable lithium-ion battery (BPB-20AH, 2.0Ah) with the BPC-A cradle charger, which fast charges in about 1 hour.
Where this product is used
- Measuring oil dispensed from 60 to 205 L drums
- Dispensing ATF, hydraulic oil and engine coolant
- Workshop and fleet jobs where you need to record the quantity
Features
- Starter kit for 60 to 205 L drums with an inline meter
- Modular power head that moves between BOP pump stems
- Easy Control single-handed dispensing gun with a 2 m reinforced hose
- Pumps engine oil, gear oil, hydraulic oil (up to SAE 140), ATF and engine coolant
- Up to 200 L per charge
- Inline meter IM012EB-01 reads up to 10 L/min, accuracy +/-2% of reading, with a four-digit backlit display and a 360 degree swivel
- Meter has a 1/2" inlet connector, a 1/2" BSPP female outlet and an IP65 rating, and fits existing and new BOP guns
- Do not use flammable fluids in it, and do not let it run dry. Use it upright with the gun facing up
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | BP205S-UNA-IM BOP205L starter kit universal with inline meter AU/NZ |
| Part number | BP205S-UNA-IM |
| Type | Battery operated pump starter kit with inline meter |
| Drum size | 60 to 205 L |
| Hose | 2 m reinforced |
| Gun | Easy Control single-handed dispensing gun |
| Meter | IM012EB-01 BOP inline meter |
| Meter flow range | Up to 10 L/min |
| Meter accuracy | +/-2% of reading |
| Meter connections | 1/2" inlet connector supplied, 1/2" BSPP female outlet |
| Meter protection | IP65 |
| Lubricating oil flow | Up to 4.5 L/min |
| Heavy oil flow | Up to 2.4 L/min |
| ATF flow | Up to 6 L/min |
| Coolant flow | Up to 6.2 L/min |
| Per charge | Up to 200 L |

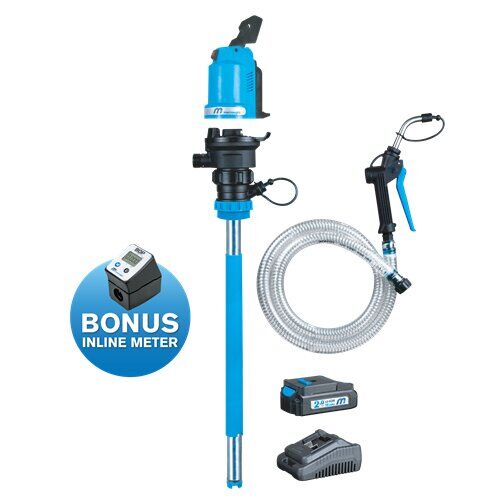

Supplied with
- Modular power head
- Multi-purpose pump stem for 60 to 205 L drums
- Easy Control dispensing gun
- 2 m reinforced hose
- BOP inline meter IM012EB-01
Related Macnaught products
- Macnaught BOP20L Universal Pump Starter Kit W/ Inline Meter Ver. AU/NZ: Other size or version
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Macnaught BOP205L Universal Pump Starter Kit W/ Inline Meter Ver. AU/NZ
SKU: A0209965 | Model: BP205S-UNA-IM
The BP205S-UNA-IM is the Macnaught BOP starter kit for 60 to 205 L drums with the IM012EB-01 inline meter. It has a modular power head, a pump stem, an Easy Control gun and a 2 m reinforced hose.
