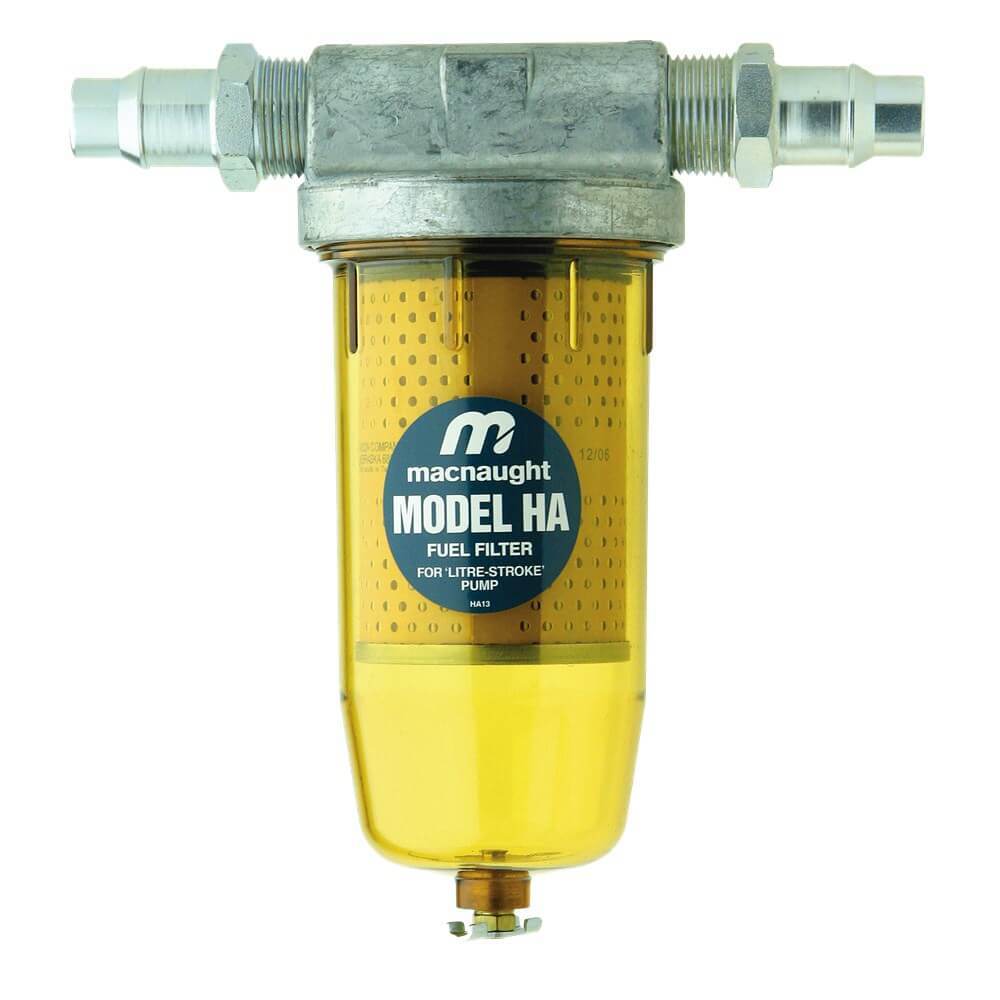

Macnaught Fuel Filter Kit (LITRESTROKE) HA-01
Available
The Macnaught HA-01 is a 10 micron fuel filter kit for the LITRESTROKE hand pump. It filters the fuel before it goes through the pump. It suits the HP LITRESTROKE.
The kit includes a 10 micron filter and the fittings to connect it to the pump. The filter has a clear bowl with a drain tap and a replaceable paper element. The inlet and outlet are 1" BSP female (BSP is a common pipe thread standard) and it is rated to 1033 kPa (150 psi). It suits diesel, petrol and methanol. Choose the HA-01 only for a LITRESTROKE. The GB-01 is for the GP RAPIDFLO and the VA-01 is for the GT RAPIDFLO and RVP pumps.
Where this product is used
- Filtering fuel on a LITRESTROKE pump
- Fuel transfer setups built around the pump
Features
- Replaceable 10 micron paper filter element
- Supplied with the fittings to connect it to the pump
- Transparent polycarbonate bowl with a drain tap
- Zinc die-cast body with a nitrile rubber gasket
- 1" BSP female inlet and outlet
- Working pressure up to 1033 kPa (150 psi)
- Suits diesel, petrol and methanol
- Replacement element is the HA7S, a 10 micron element that fits GB, HA, VA and HA1S filters
- Hand tighten the bowl only and do not use Teflon tape on the filter assembly
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | HA-01 |
| Part number | HA-01 |
| Type | Fuel filter kit with fittings |
| Fits | HP LITRESTROKE pump |
| Filter element | 10 micron, replaceable paper |
| Inlet and outlet | 1" BSP female |
| Maximum working pressure | 1033 kPa (150 psi) |
| Bowl | Transparent polycarbonate with drain tap |
| Body | Zinc die-cast, nitrile rubber gasket |
| Suitable fuels | Diesel, petrol, methanol |
| Replacement element | HA7S (10 micron) |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Macnaught Fuel Filter Kit (LITRESTROKE) HA-01
SKU: A0082675 | Model: HA-01
The HA-01 is a 10 micron fuel filter kit with the fittings to connect it to an HP LITRESTROKE pump. It has 1" BSP female ports, a clear bowl with a drain tap and a replaceable paper element.
