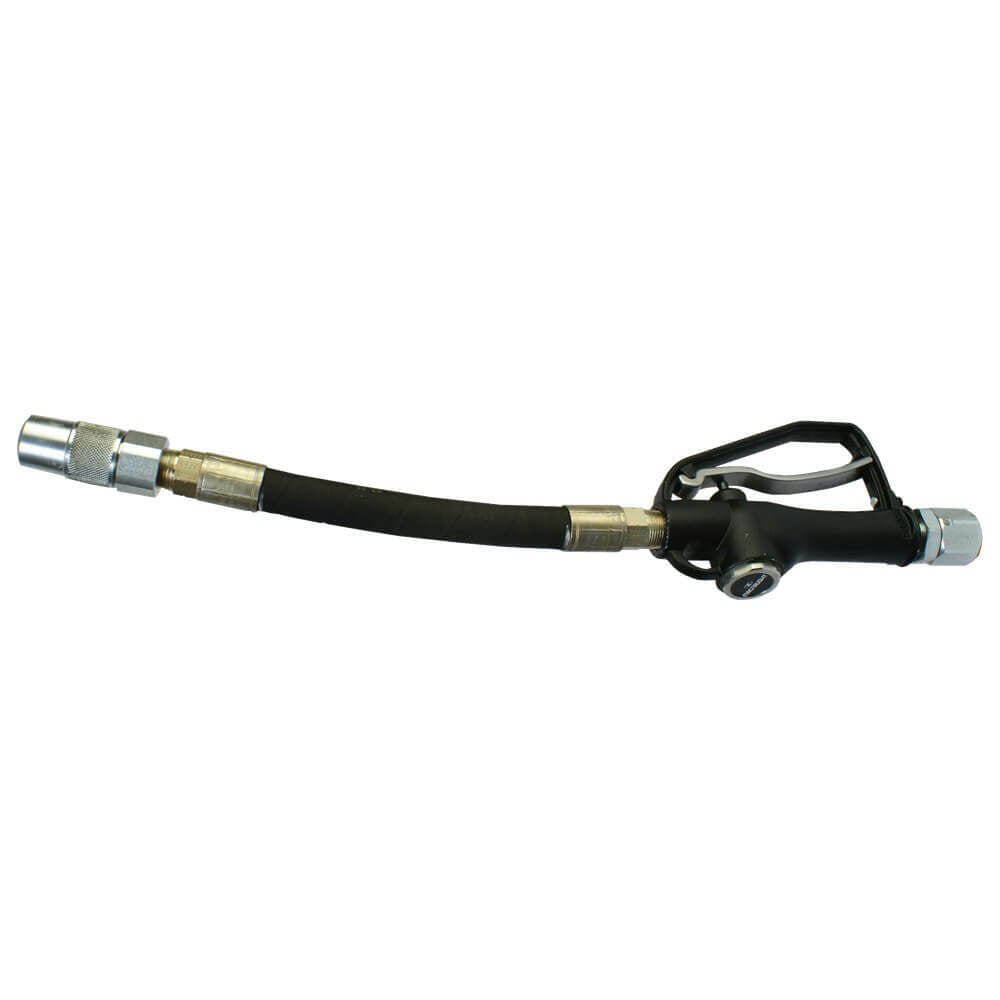

Macnaught High flow Oil Control Gun - Underground Mining HG100-01-11
Available
It is un-metered, so it switches oil on and off and does not measure it. This listing is the Macnaught High flow Oil Control Gun - Underground Mining HG100-01-11: type High volume oil control gun, un-metered, suitable fluids Oils up to SAE 140, maximum pressure 1500 psi, brand Macnaught.
A metered gun has a meter built in that measures how much goes out. An un-metered gun only switches the flow on and off. If you need a measured fill, look at the HG100-019E-01. Do not exceed the maximum working pressure of 1500 psi. Use thread tape or a suitable sealant when connecting the gun to an oil hose.
Where this product is used
- Bulk oil dispensing on mine sites
- Large workshops with high volume oil lines
- Dispensing oils up to SAE 140
Features
- Un-metered high volume oil control gun
- Full-flow 3/4" inlet swivel included
- Flexible extension and manual non-drip nozzle
- Trigger guard and latching trigger
- Maximum working pressure 1500 psi
- Suitable for oils up to SAE 140
- Maximum operating temperature 70 deg C
- Weight 1.8kg
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | HG100-01-11 |
| Part number | HG100-01-11 |
| Type | High volume oil control gun, un-metered |
| Extension | Flexible, with manual non-drip nozzle |
| Trigger | Latching, with trigger guard |
| Inlet | 3/4" swivel inlet, BSP thread |
| Outlet | 3/4" NPT |
| Maximum pressure | 1500 psi |
| Wetted parts | Aluminium, mild steel, nitrile rubber |
| Suitable fluids | Oils up to SAE 140; transmission fluid, anti-freeze/anti-boil, engine oil, diesel oil |
| Maximum operating temperature | 70 deg C |
| Weight | 1.8kg |
| Overhaul kit | HG100-1K |
Supplied with
- HG100-01-11 oil control gun with flexible extension and manual non-drip nozzle
- Not included: hose or pump
Related Macnaught products
- Macnaught Seal Kit HG100 HG100-1K: Seal kit (overhaul kit)
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Macnaught High flow Oil Control Gun - Underground Mining HG100-01-11
SKU: A0082683 | Model: HG100-01-11
The HG100-01-11 is Macnaught's underground mining version of the HG100 high flow oil control gun. It is un-metered, with a full-flow 3/4" inlet swivel, a flexible extension and a manual non-drip nozzle.
