Macnaught IBC Mounted Oil System OS400B-01

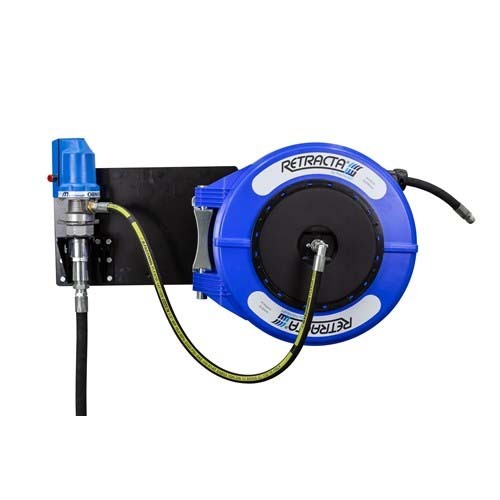

The Macnaught OS400B-01 is a ready-made oil dispensing system for mounting on an IBC or a wall. It has an air-operated pump and a hose reel on a mounting plate, with suction and feeder hoses, so you can pump oil out of a bulk container. It is the no-gun version, so no gun is included.

The pump is an OilMaster T312, a 3:1 T-series pump. It has a free flow of up to 13 L/min and is rated for oils and coolants up to SAE140. OilMaster T-series pumps have a polymer air motor and a built-in pressure relief valve. The ratio is how much the pump multiplies your air pressure at the oil outlet. A higher ratio gives more push for long hose runs and thick oil, but usually less oil per minute. A lower ratio usually moves more oil with less push. The OS400 is the same system as the OS500, except that the OS500 has the R300 pump. The R300S-01 pump has a free flow of up to 23 L/min. Choose the OS400 for the T-series pump, or the OS500 for more oil per minute. In Macnaught part numbers, B means no gun, G means an unmetered gun, GE means a metered gun (the meter is built into the gun) and IM means an in-line meter (the meter is fitted in the hose line).

Where this product is used

• Pumping oil from an IBC or bulk container to a workshop
• Wall mounted oil dispensing where you want a ready-made set
• Pumping oils and coolants up to SAE140

Features

• Ready-made oil system for IBC or wall mounting
• T312 3:1 OilMaster air-operated pump, free flow up to 13 L/min
• Hose reel and mounting plate included, with suction and feeder hoses
• No gun is included
• The only difference to the OS500B-01 is the pump
• How to choose: OS400B-01 has the T312 pump with no gun, OS400G-01 adds a gun and OS500B-01 has the higher-flow R300 pump

Key specifications
