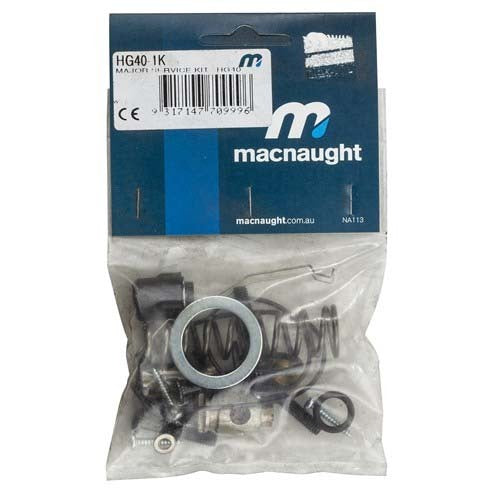

Macnaught Major Service Kit For HG40 Oil Control Gun Spare Part
Available
The Macnaught HG40-1K is the major service kit (Kit A) for the HG40 mechanical oil control gun.
The gun body, register assembly, boot and swivel are not in the kit.
Where this product is used
- Overhauling an HG40 oil control gun
- Replacing worn seals and O-rings on a gun in regular service
Features
- Major service kit (Kit A) for the HG40 gun
- Parts marked Kit A include O-rings BS035, BS029, BS007V, BS111, BS113 and BS117
- Also marked Kit A: back up ring, plunger, seal, valve spring, valve cam, button spring and strainer
- Not in the kit: gun body, register assembly, boot and swivel
- Not for in-line installations or use with a manual shut off nozzle. Safe operating pressure of the nozzle is 500 psi
- The line pressure between the pump and the gun trigger valve must not exceed 1500 psi (103 bar)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Part number | HG40-1K |
| Part type | Major service kit |
| Fits | HG40 oil control guns (HG40-01, HG40-03, HG40R-02, HG40F-02) |
| Kit | Kit A, major service kit |
Supplied with
- Kit A items
- Gun body, register assembly, boot and swivel are not included
