Macnaught Oil Control Gun - Electronic - High Volume HG100-019E-01
Available

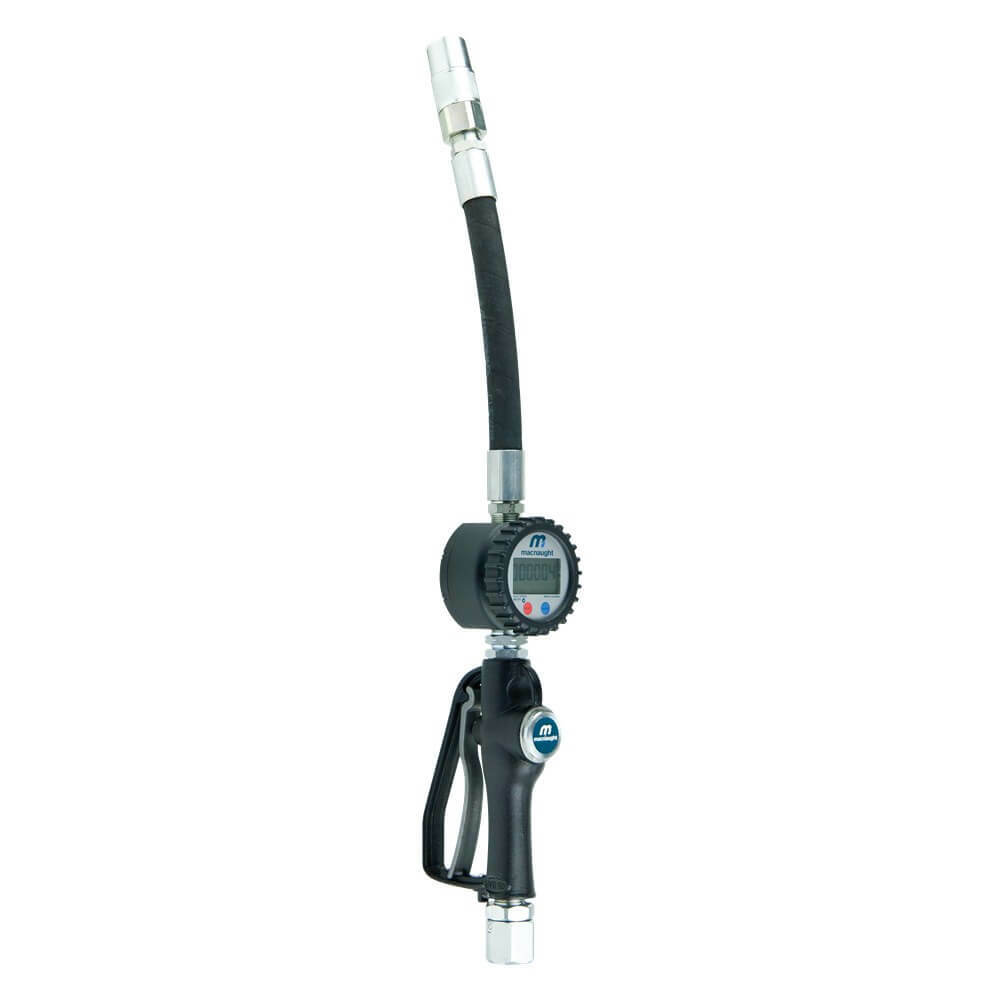

The Macnaught HG100-019E-01 is a metered high volume oil control gun with a digital oil meter. It measures bulk oil deliveries through a full-flow 3/4" inlet swivel. It is a high-volume gun with a flexible extension and a manual non-drip nozzle, with accuracy of +/- 0.5% for oils up to SAE 140. It suits large workshops, fleets and mine sites that need to record bulk oil use.
The meter shows resettable and non-resettable totals, up to 99999.9 and 999999. You can pick the unit (L, GAL, Qt, Pt, Oz or dL). It runs on a CR2450 lithium battery. The maximum operating temperature is 55 deg C. A metered gun has a meter built in that measures how much goes out. An un-metered gun only switches the flow on and off. Choose this over the HG100-01 if you need to measure the oil. Choose an HG20 electronic gun for lighter 1/2" work. Do not exceed the maximum working pressure of 1500 psi. Use thread tape or a suitable sealant when connecting the gun to an oil hose.
Where this product is used
- Measured bulk oil dispensing in large workshops
- Fleet and mine site service oil lines that need a record of oil used
- Oils up to SAE 140
Features
- Metered high volume oil control gun with a digital oil meter
- Accuracy of +/- 0.5% of reading
- Resettable batch total up to 99999.9 and non-resettable total up to 999999
- Full-flow 3/4" inlet swivel included
- Flexible extension and manual non-drip nozzle
- CR2450 lithium battery, with a low battery warning at 5% power left
- Maximum working pressure 1500 psi
- Maximum operating temperature 55 deg C
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | HG100-019E-01 |
| Part number | HG100-019E-01 |
| Type | High volume oil control gun with digital meter |
| Extension | Flexible, with manual non-drip nozzle |
| Accuracy | +/- 0.5% of reading |
| Batch total (resettable) | Up to 99999.9 |
| Running total (non-resettable) | Up to 999999 |
| Units | L, GAL, Qt, Pt, Oz, dL |
| Battery | CR2450 lithium |
| Maximum viscosity | 1000 cP |
| Maximum operating temperature | 55 deg C |
| Inlet | 3/4" swivel inlet, BSP thread |
| Outlet | 3/4" NPT |
| Maximum pressure | 1500 psi |
| Wetted parts | Aluminium, mild steel, nitrile rubber |
| Suitable fluids | Oils up to SAE 140; transmission fluid, anti-freeze/anti-boil, engine oil |
| Overhaul kit | HG100-1K |
| Electronic module | DKIT-IM019-MC |
Supplied with
- HG100-019E-01 oil control gun with digital meter
- Not included: hose or pump
Related Macnaught products
- Macnaught Seal Kit HG100 HG100-1K: Seal kit (overhaul kit)
