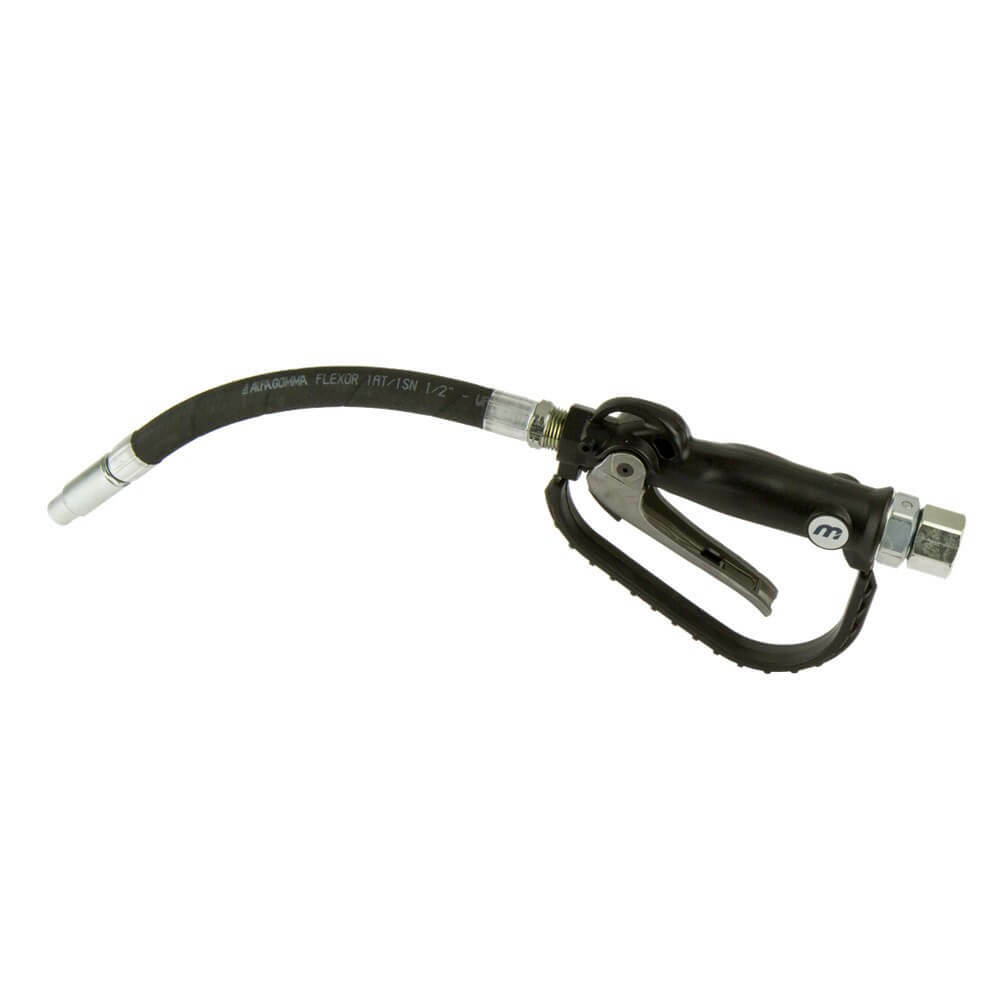

Macnaught Oil Control Gun - Flexible Extension HG20F-01

The Macnaught HG20F-01 is an oil control gun with a flexible extension. It is un-metered, so it switches oil on and off but does not measure it. It is a 1/2" gun for workshops and service bays that dispense oil from a pump and hose.

The outlet is an automatic non-drip nozzle. It opens when oil flows and shuts when the flow stops. The trigger latches, so you can lock it on for longer fills. A metered gun has a meter built in that measures how much goes out. An un-metered gun only switches the flow on and off. The flexible extension is a bendable hose-style extension for awkward reach. Macnaught also makes this gun as the HG20R-01 (rigid extension). If you need a reading of how much oil went out, choose the metered HG20F-012E-01. For big bulk fills at 3/4", look at the HG100 guns.

Where this product is used

• Workshop and service bay oil dispensing from a pump and hose
• Dispensing oils up to SAE 140
• Engine oil, diesel oil, automatic transmission fluid and anti-freeze/anti-boil mixes
• Replacing a worn or damaged control gun on an oil line

Features

• Un-metered oil control gun with a flexible extension
• Automatic non-drip nozzle opens with flow and shuts when flow stops
• Latching trigger and trigger guard
• Maximum working pressure 6,900 kPa (1,000 psi)
• Suitable for oils up to SAE 140
• 1/2" swivel inlet, BSP thread (BSP is a standard pipe thread)
• Wetted parts are aluminium, mild steel and nitrile rubber
• Weight 0.8kg

Key specifications

Supplied with

• Flexible oil control gun
• Not included: hose, pump or meter

Related Macnaught products

• Macnaught Seal Kit for HG20R, HG20F HG20-1K: Seal kit
