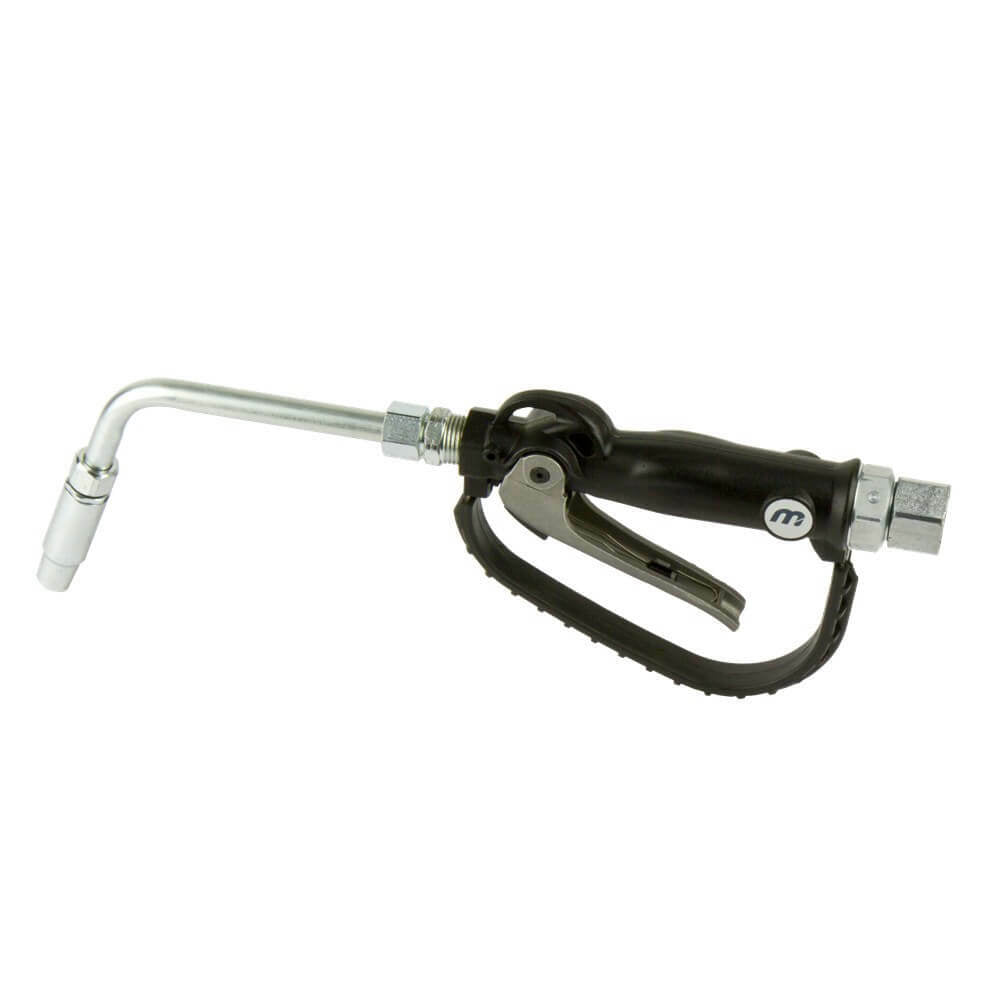

Macnaught Oil Control Gun - Rigid Extension HG20R-01
Available
The Macnaught HG20R-01 is an oil control gun with a rigid extension. It is un-metered, so it switches oil on and off but does not measure it. It is a 1/2" gun for workshops and service bays that dispense oil from a pump and hose.
The outlet is an automatic non-drip nozzle. It opens when oil flows and shuts when the flow stops. The trigger latches, so you can lock it on for longer fills. A metered gun has a meter built in that measures how much goes out. An un-metered gun only switches the flow on and off. The rigid extension is a straight tube for a firm, direct reach. Macnaught also makes this gun as the HG20F-01 (flexible extension). If you need a reading of how much oil went out, choose the metered HG20R-012E-01. For big bulk fills at 3/4", look at the HG100 guns.
Where this product is used
- Workshop and service bay oil dispensing from a pump and hose
- Dispensing oils up to SAE 140
- Engine oil, diesel oil, automatic transmission fluid and anti-freeze/anti-boil mixes
- Replacing a worn or damaged control gun on an oil line
Features
- Un-metered oil control gun with a rigid extension
- Automatic non-drip nozzle opens with flow and shuts when flow stops
- Latching trigger and trigger guard
- Maximum working pressure 6,900 kPa (1,000 psi)
- Suitable for oils up to SAE 140
- 1/2" swivel inlet, BSP thread (BSP is a standard pipe thread)
- Wetted parts are aluminium, mild steel and nitrile rubber
- Weight 0.8kg
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | HG20R-01 |
| Part number | HG20R-01 |
| Type | Oil control gun, un-metered |
| Extension | Rigid, with automatic non-drip nozzle |
| Trigger | Latching, with trigger guard |
| Maximum working pressure | 6,900 kPa (1,000 psi) |
| Suitable fluids | Oils up to SAE 140; engine oil, diesel oil, automatic transmission fluid, anti-freeze/anti-boil |
| Inlet | 1/2" swivel inlet |
| Outlet | 1/2" NPT |
| Wetted parts | Aluminium, mild steel, nitrile rubber |
| Weight | 0.8kg |
| Seal kit | HG20-1K |
Supplied with
- Rigid oil control gun
- Not included: hose, pump or meter
