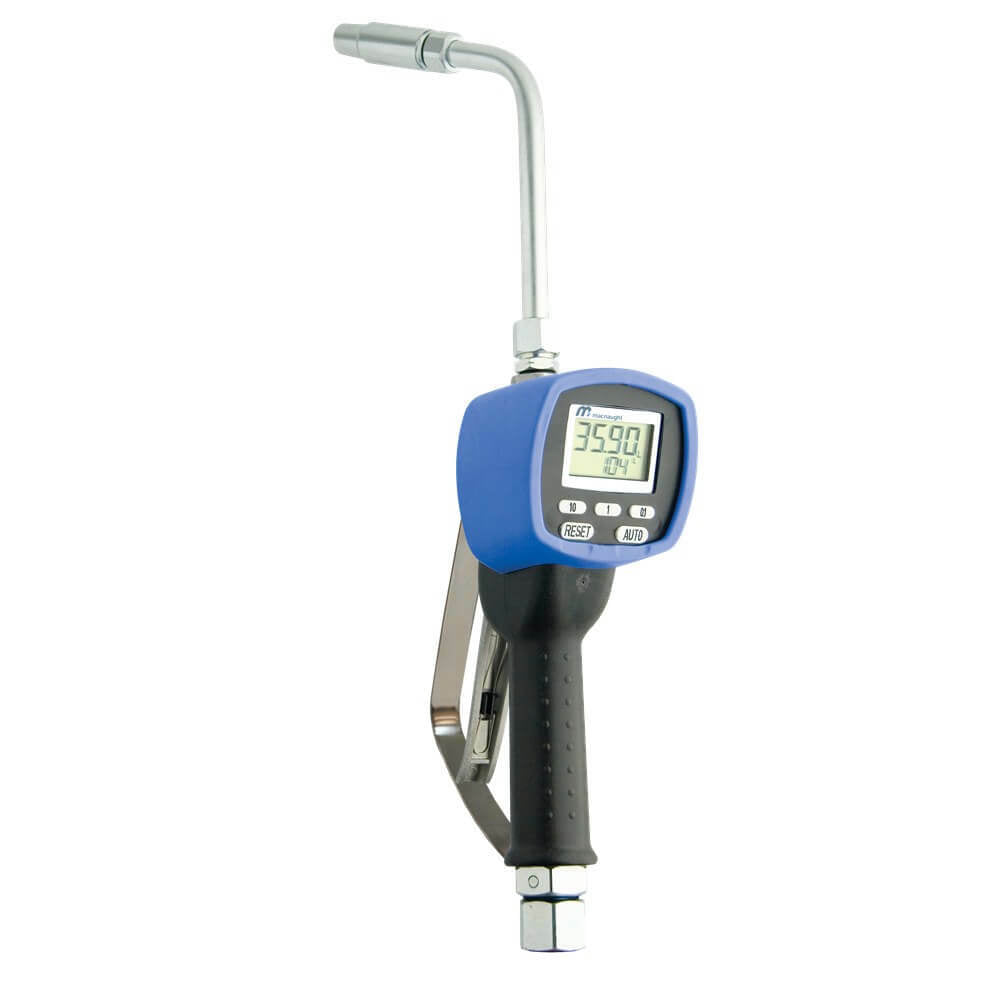

Macnaught HG60-01 Preset Oil Control Gun
Available
The Macnaught HG60-01 is a metered oil control gun with a preset digital display and a rigid extension. You set the volume you want and the gun shuts off by itself at that volume. It has accuracy of +/- 0.5% on lube oils, a preset limit of 99.9 L and 5 dispense memory settings for common delivery volumes. It suits workshops and fleets that fill the same measured amounts again and again.
It also has a 5-digit resettable batch total and a 6-digit running total, and it works in manual mode as well as auto mode. It has a flow range of 1 to 30 L/min and a maximum supply pressure of 1500 psi. It runs on 2 x AA alkaline batteries. If the battery gets low, auto mode stops working but you can still use the gun in manual mode. The safe operating pressure of the nozzle is 500 psi, that line pressure between the pump and the gun must not exceed 1,500 psi (103 bar), and the gun should not be used for in-line installations or with a manual shut-off nozzle. Choose the HG60 if you want preset auto shut-off. Choose the HG55 if you only need to measure and read the total.
Where this product is used
- Repeat fills of a set volume, such as a standard sump or gearbox fill
- Workshops and fleets that need measured oil fills
- Engine oil, diesel oil, automatic transmission fluid and anti-freeze/anti-boil mixes
Features
- Preset digital display with automatic shut-off at the volume you set
- Presettable up to 99.9 L, with 5 dispense memory settings
- Accuracy of +/- 0.5% on lube oils
- 5-digit resettable batch total and 6-digit running total
- Flow range 1 to 30 L/min, maximum supply pressure 1500 psi
- Runs on 2 x AA alkaline batteries, manual mode still works if the battery is low
- Units: litre, pint, quart or gallon
- Field calibration allows a +/- 5% adjustment
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | HG60-01 |
| Part number | HG60-01 |
| Type | Preset metered oil control gun, digital display |
| Extension | Rigid, with locking trigger and non-drip nozzle |
| Preset limit | Up to 99.9 L |
| Dispense memory settings | 5 |
| Batch total | 5-digit, resettable |
| Running total | 6-digit, non-resettable |
| Flow range | 1 to 30 L/min |
| Accuracy | +/- 0.5% of reading (ISO100 at 10 L/min) |
| Maximum supply pressure | 10350 kPa (1500 psi, 103.50 bar) |
| Nozzle safe operating pressure | 500 psi |
| Pressure loss | 1 bar (100 kPa, 14.4 psi) at 12 L/min |
| Battery | 2 x 1.5V AA, alkaline |
| Units | Litre, pint, quart, gallon |
| Swivel inlet | 1/2" BSPT or 1/2" NPT |
| Outlet | 3/8" NPT |
| Wetted parts | Aluminium, acetal, steel, nitrile rubber |
| Weight | 1.16kg |
| Size without extension | 25.8cm long x 9.5cm high x 11cm wide |
| Suitable fluids | Engine oil, diesel oil, automatic transmission fluid, anti-freeze/anti-boil mixture (max viscosity SAE 140) |
| Spare preset module | HG370AS |
Supplied with
- HG60-01 preset metered oil control gun
- Not included: hose, pump or batteries
