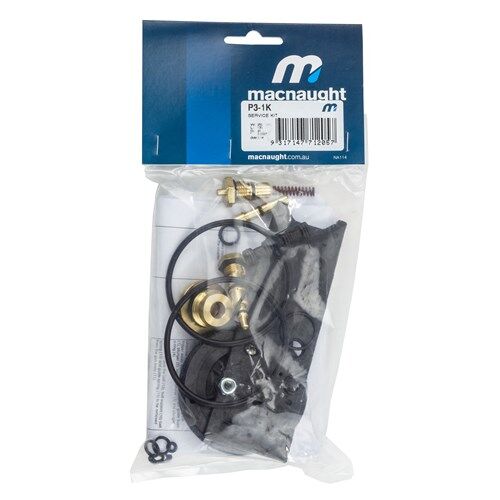

Macnaught P3 Air Motor Seal Kit

The Macnaught P3-1K is an air motor seal kit for the Powerlube P3 air-operated grease pump. It is a repair kit. It replaces the seals and valve parts in the air motor, the part driven by your compressed air.

The piston rod is a separate part. The lower grease pump seals are in the P3-5K kit, and the P3-3K is a seal kit that covers seals from both ends.

Where this product is used

• Air motor service on a P3 Powerlube grease pump
• Air motor service on P6 and P8 Maxilube pumps
• Keeping a service kit on the shelf for planned pump maintenance

Features

• Air motor seal kit for the Powerlube P3 pump
• Also is a repair kit for the P6 and P8 Maxilube pumps
• Parts marked in the kit include O-rings, poppet springs, cup seals, air piston, piston rod seal, valve spool and reset button
• The P3, P6 and P8 all use a 70mm (2 3/4") air motor
• Lower pump seals are in the P3-5K kit, and the P3-3K covers seals from both ends
• Maximum air inlet pressure is 1035 kPa / 150 psi / 10.3 bar. Never exceed the pressure rating of any part in the system
• Before any service, disconnect the air supply and squeeze the gun trigger to release pressure

Key specifications

Supplied with

• Air motor seal kit

Related Macnaught products

• Macnaught P6 MAXILUBE 55kg Air-operated Grease Pump: Suits this product
• Macnaught P8 MAXILUBE 180kg Air-operated Grease Pump: Suits this product
