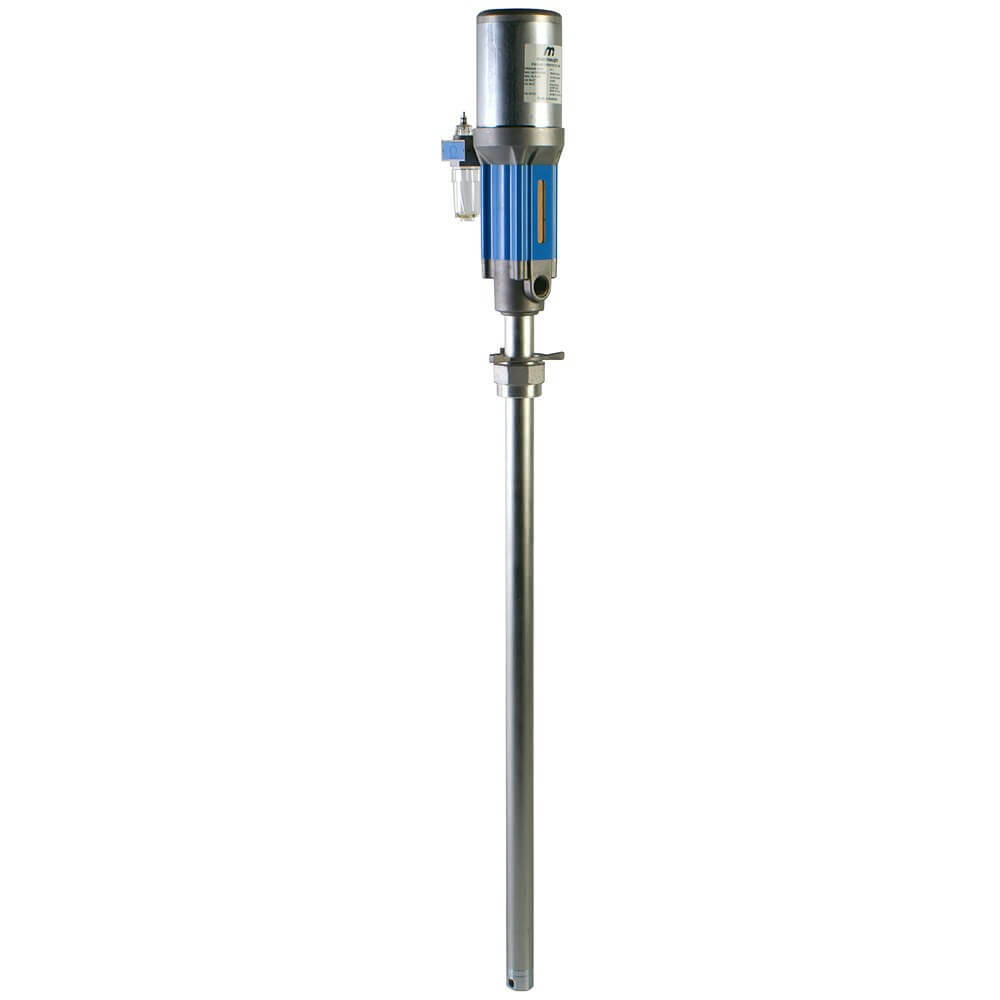

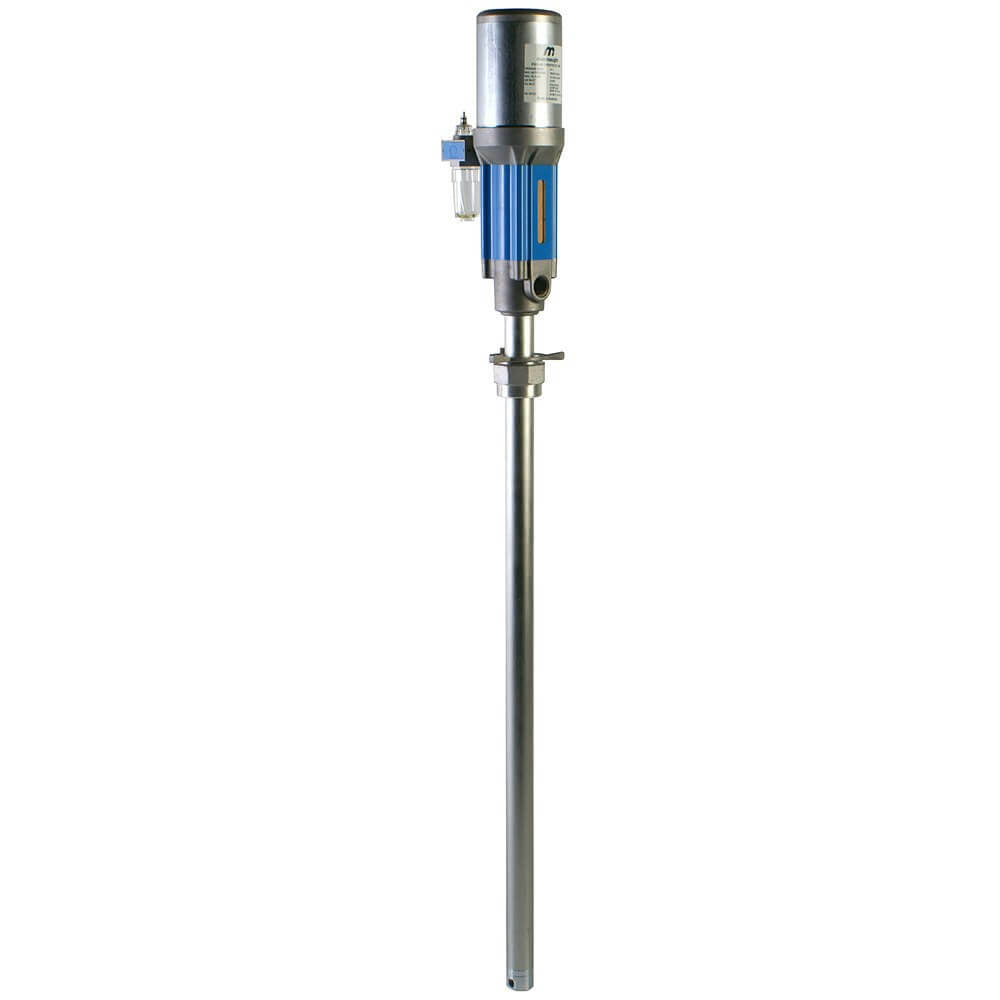

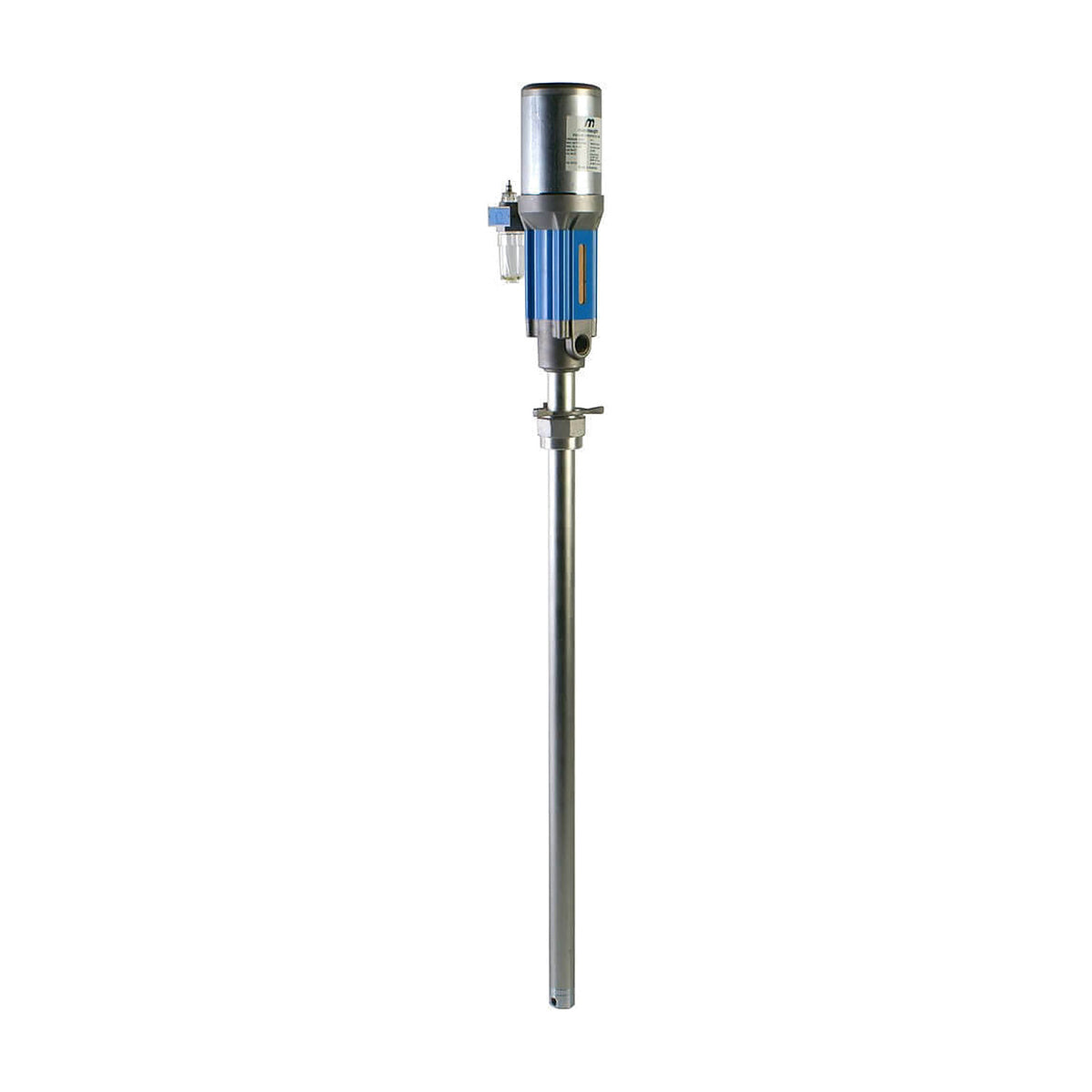

Macnaught R-SERIES 10:1 Drum Pump (200L drum) R1000T-01

The Macnaught R1000T-01 is a 10:1 air-operated drum oil pump for pumping oil straight out of a 205 L drum over a long distance. It has the most push in the R-series. It is the choice for medium flow over long distances, with a free flow of up to 18 L/min. It is rated for oils up to SAE140, coolants, kerosene and diesel.

The R-series is Macnaught's heavier-duty air-operated oil pump range. It has a heavy-duty aluminium and steel air motor with large exhaust ports to prevent icing, and it comes with an airline lubricator and a 2" bung adaptor. The ratio is how much the pump multiplies your air pressure at the oil outlet. A higher ratio gives more push for long hose runs and thick oil, but usually less oil per minute. A lower ratio usually moves more oil with less push. At 10:1 this pump pushes hard, so it suits long hose runs, but it moves less oil than the 5:1 and 3:1 models. This is the drum version. It includes the extended suction tube, suits 205 L drums and performs the same as the matching stub pump. Choose the 10:1 only if your hose run is long or you need the extra push. For more oil per minute on shorter runs, the 5:1 R500T moves up to 32 L/min.

Where this product is used

• Dispensing oil from a 205 L drum over long distances
• Medium to large workshops with long oil lines
• Pumping oils up to SAE140, coolants, kerosene and diesel

Features

• 10:1 ratio for long hose runs and thick oil
• Free flow of up to 18 L/min
• Extended suction tube included for 205 L drums
• Handles oils up to SAE140, coolants, kerosene and diesel
• Heavy-duty aluminium and steel air motor with large exhaust ports to prevent icing
• Maximum air inlet pressure of 1035 kPa (150 psi), with 6.9 bar recommended
• Minimum air compressor size of 0.5 m3/min (18 cfm)
• Maximum static head of 100 m (328 ft)
• Supplied with an airline lubricator and a 2" bung adaptor
• Service parts from Macnaught: R1000-1K major service kit and R1000-2K seal kit

Key specifications

Supplied with

• Pump with airline lubricator
• 2" bung adaptor
• Extended suction tube

Related Macnaught products

• Macnaught R1000 Major Service Kit: Major service kit
• Macnaught R1000 Seal Kit: Seal kit
