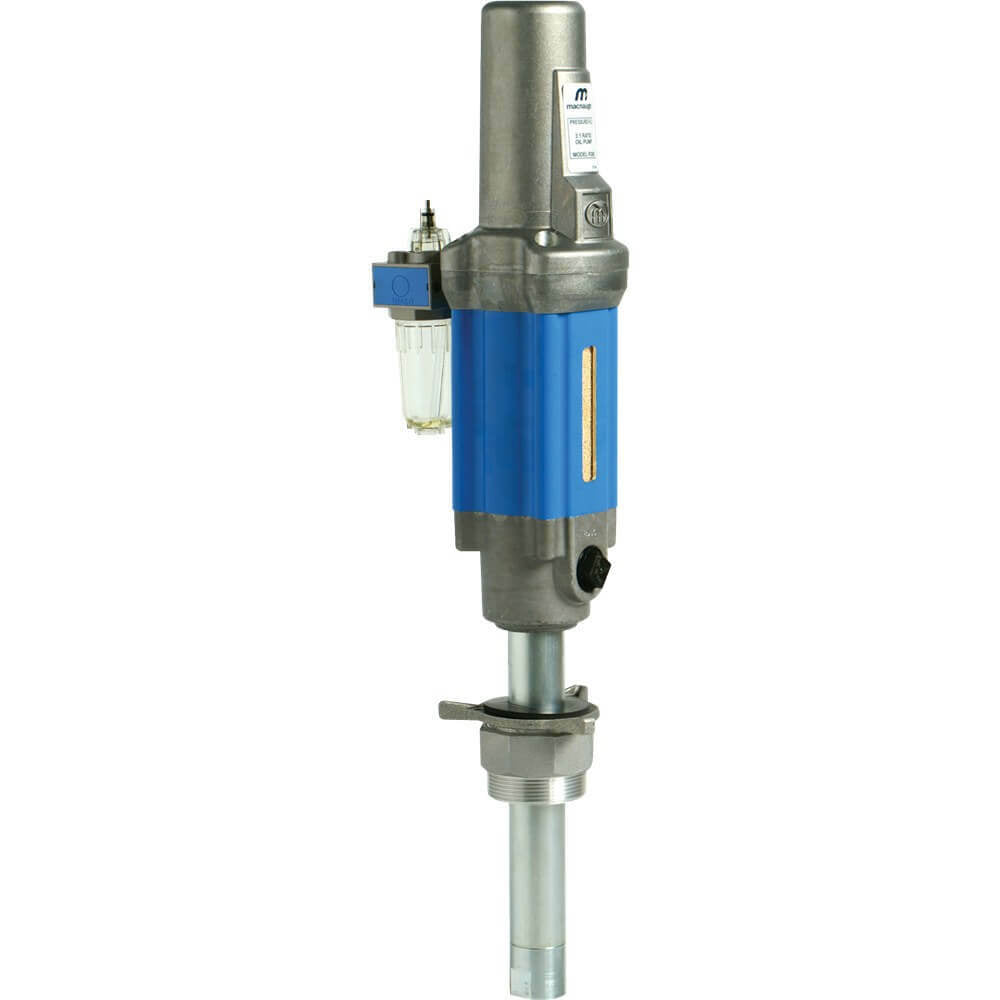

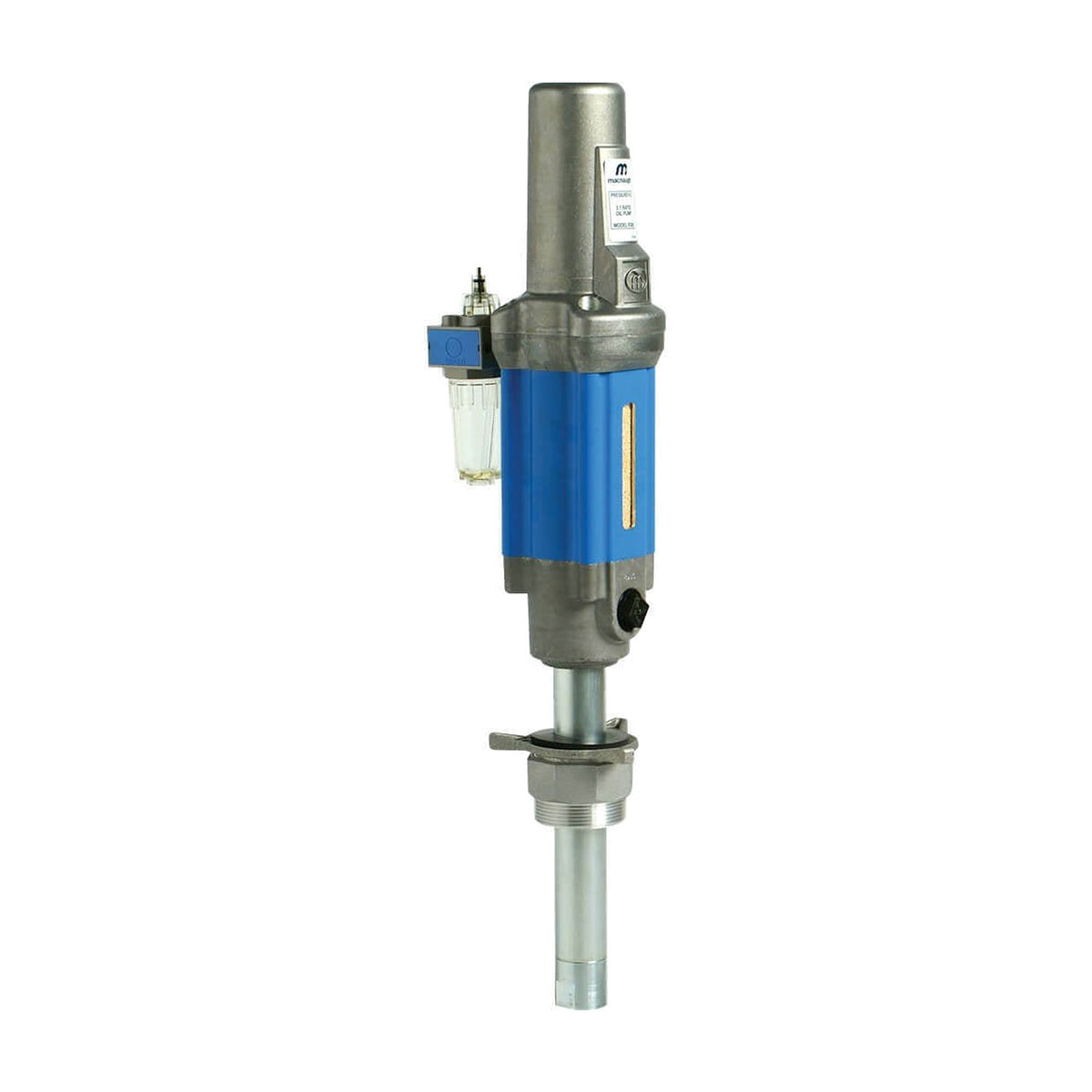

Macnaught R-SERIES 3:1 Stub Pump R300S-01
Available
The Macnaught R300S-01 is a 3:1 air-operated stub oil pump for medium to large workshops and mobile applications. It has a free flow of up to 23 L/min and is rated for oils up to SAE140, coolants, kerosene and diesel.
The R-series is Macnaught's heavier-duty air-operated oil pump range. It has a heavy-duty aluminium and steel air motor with large exhaust ports to prevent icing, and it comes with an airline lubricator and a 2" bung adaptor. The ratio is how much the pump multiplies your air pressure at the oil outlet. A higher ratio gives more push for long hose runs and thick oil, but usually less oil per minute. A lower ratio usually moves more oil with less push. At 3:1 this pump balances flow and push. It handles thicker oil and longer hoses than the 1:1 R100T. This is the stub version. It is the pump only, with no drum suction tube, and it is best for wall or remote mounting. The ST003AS suction tube set is sold separately. If your hose run is longer, step up to the 5:1 R500S, rated for up to 32 L/min free flow.
Where this product is used
- Wall or remote mounted oil pumping in medium to large workshops
- Mobile applications that need an air-operated oil pump
- Pumping oils up to SAE140, coolants, kerosene and diesel
Features
- 3:1 ratio, a middle choice for flow and push
- Free flow of up to 23 L/min on SAE10 oil, 19 L/min on 15W-40 and 18 L/min on SAE90
- Handles oils up to SAE140, coolants, kerosene and diesel
- Heavy-duty aluminium and steel air motor with large exhaust ports to prevent icing
- Maximum air inlet pressure of 1035 kPa (150 psi), with 690 kPa (100 psi) recommended
- Maximum static head of 30 m (98 ft)
- Supplied with an airline lubricator and a 2" bung adaptor
- Service parts from Macnaught: R300-2K major service kit and R300-3K seal kit
- Recommended with the TD20-BLACKS wall bracket, an HG Series oil control gun and the TB25S telescopic suction tube
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | R300S-01 |
| Part number | R300S-01 |
| Range | R-SERIES |
| Type | Air-operated ratio piston pump |
| Ratio | 3:1 |
| Version | Stub pump, no suction tube |
| Free flow | Up to 23 L/min |
| Free flow at SAE10 / 15W-40 / SAE90 | 23 / 19 / 18 L/min |
| Suitable fluids | Oils up to SAE140, coolants, kerosene, diesel |
| Maximum air inlet pressure | 1035 kPa (150 psi) |
| Minimum air pressure | 400 kPa |
| Recommended air pressure | 690 kPa (100 psi) |
| Air consumption | 13 cfm at 690 kPa |
| Noise level | 88 dB at 2 m |
| Maximum static head | 30 m (98 ft) |
| Air inlet | 1/4" female |
| Oil outlet | 3/4" female |
| Bung adaptor | 2" male |
| Wetted materials | Zinc, carbon steel, aluminium, brass, nitrile rubber |
| Drum size | 205 L drums (with a suction tube) |
Supplied with
- Pump with airline lubricator
- 2" bung adaptor
- No suction tube. The ST003AS suction tube set is sold separately
Related Macnaught products
- Macnaught R300 Major Service Kit: Major service kit
- Macnaught R300 Seal Kit: Seal kit
