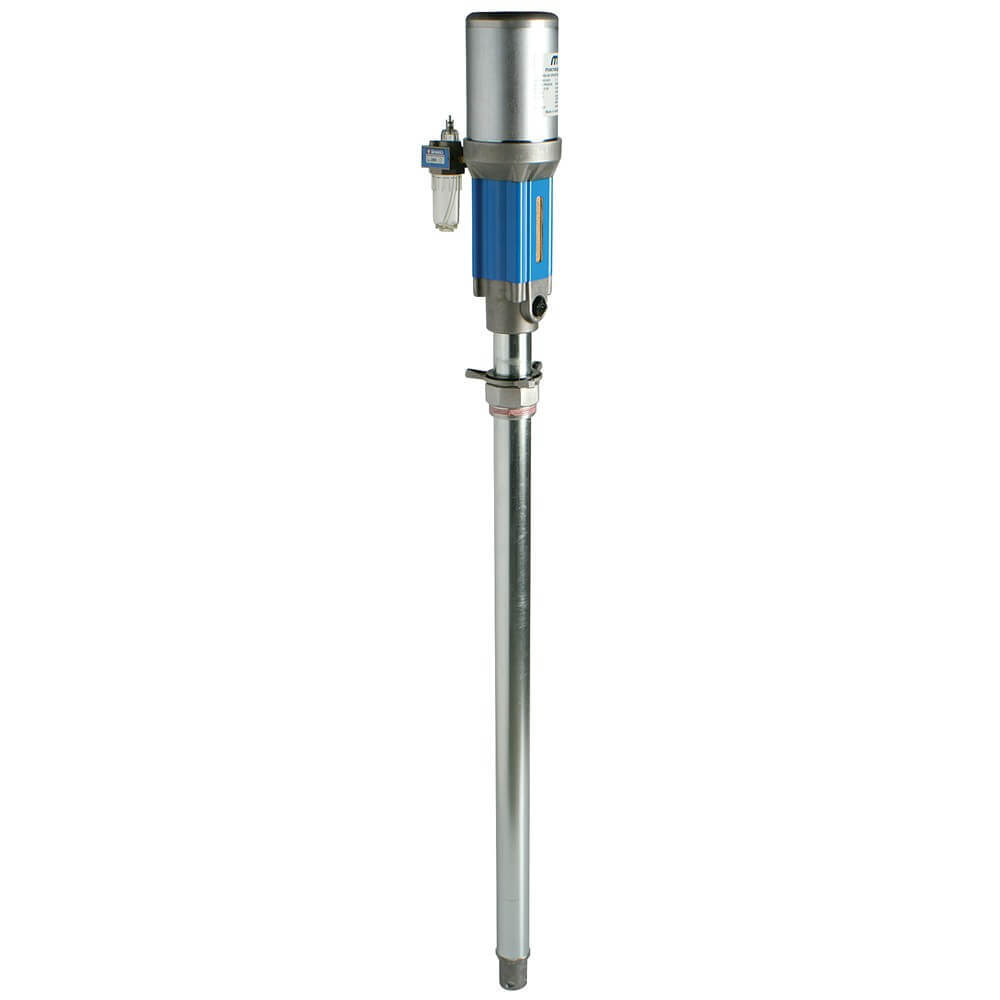

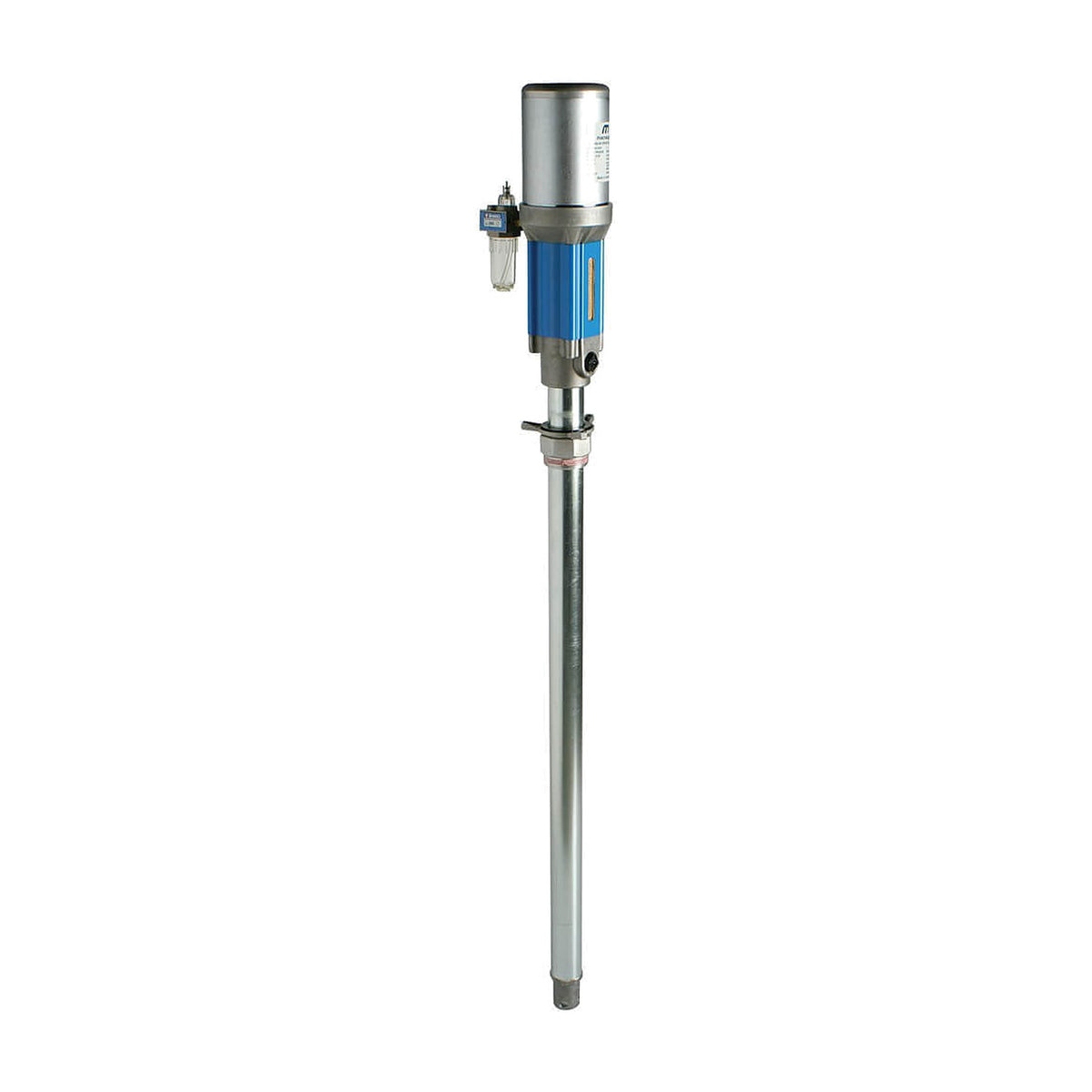

Macnaught R-SERIES 5:1 Drum Pump (200L Drum) R500T-01
Available
The Macnaught R500T-01 is a 5:1 air-operated drum oil pump for medium to large workshops and mobile applications. The 5:1 ratio is the choice for high flow rates over longer distances. It gives this pump a free flow of up to 32 L/min and is rated for oils up to SAE140, coolants, kerosene and diesel.
The R-series is Macnaught's heavier-duty air-operated oil pump range. It has a heavy-duty aluminium and steel air motor with large exhaust ports to prevent icing, and it comes with an airline lubricator and a 2" bung adaptor. The ratio is how much the pump multiplies your air pressure at the oil outlet. A higher ratio gives more push for long hose runs and thick oil, but usually less oil per minute. A lower ratio usually moves more oil with less push. At 5:1 this pump pushes oil through longer hoses and thicker oil than the 3:1 and 1:1 models while keeping a high flow. This is the drum version. It includes the extended suction tube, suits 205 L drums and performs the same as the matching stub pump. The drum pump suits dispensing from a drum into a workshop system that feeds several dispensing points. Go to the 10:1 R1000T only if your hose run is very long, as it moves less oil.
Where this product is used
- Dispensing oil from a 205 L drum into a workshop system with several dispensing points
- Mobile applications that need an air-operated oil pump
- Pumping oils up to SAE140, coolants, kerosene and diesel
Features
- 5:1 ratio for high flow over longer distances
- Free flow of up to 32 L/min
- Extended suction tube included for 205 L drums
- Handles oils up to SAE140, coolants, kerosene and diesel
- Heavy-duty aluminium and steel air motor with large exhaust ports to prevent icing
- Built-in pressure relief valve on the 5:1 ratio pumps
- Maximum air inlet pressure of 1035 kPa (150 psi), with 6.9 bar recommended
- Maximum static head of 50 m (164 ft)
- Supplied with an airline lubricator and a 2" bung adaptor
- Service parts from Macnaught: R500-2K major service kit and R500-3K seal kit
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | R500T-01 |
| Part number | R500T-01 |
| Range | R-SERIES |
| Type | Air-operated ratio piston pump |
| Ratio | 5:1 |
| Version | Drum pump with extended suction tube |
| Free flow | Up to 32 L/min |
| Suitable fluids | Oils up to SAE140, coolants, kerosene, diesel |
| Maximum air inlet pressure | 10.3 bar (1035 kPa, 150 psi) |
| Minimum air pressure | 4 bar (400 kPa) |
| Recommended air pressure | 6.9 bar |
| Air consumption | 18 cfm at 6.9 bar |
| Noise level | 88 dB at 2 m |
| Maximum static head | 50 m (164 ft) |
| Air inlet | 1/4" female |
| Oil outlet | 3/4" female |
| Bung adaptor | 2" male |
| Wetted materials | Zinc, carbon steel, aluminium, brass, nitrile rubber |
| Drum size | 205 L |
Supplied with
- Pump with airline lubricator
- 2" bung adaptor
- Extended suction tube
Related Macnaught products
- Macnaught R500 Major Service Kit: Major service kit
- Macnaught R500 Seal Kit: Seal kit
