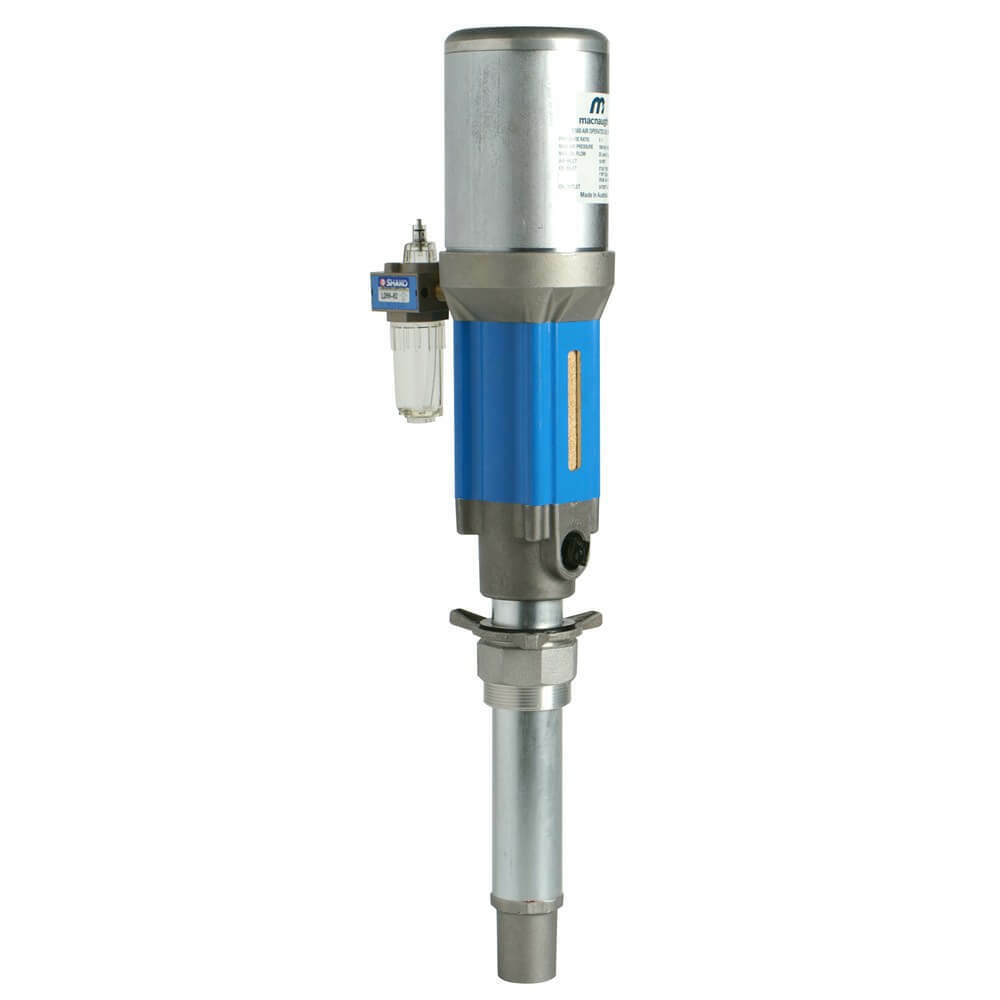

Macnaught R-SERIES 5:1 Stub Pump R500S-01
Available
The Macnaught R500S-01 is a 5:1 air-operated stub oil pump for medium to large workshops and mobile applications. The 5:1 ratio is the choice for high flow rates over longer distances. It gives this pump a free flow of up to 32 L/min and is rated for oils up to SAE140, coolants, kerosene and diesel.
The R-series is Macnaught's heavier-duty air-operated oil pump range. It has a heavy-duty aluminium and steel air motor with large exhaust ports to prevent icing, and it comes with an airline lubricator and a 2" bung adaptor. The ratio is how much the pump multiplies your air pressure at the oil outlet. A higher ratio gives more push for long hose runs and thick oil, but usually less oil per minute. A lower ratio usually moves more oil with less push. At 5:1 this pump pushes oil through longer hoses and thicker oil than the 3:1 and 1:1 models while keeping a high flow. This is the stub version. It is the pump only, with no drum suction tube, and it is best for wall or remote mounting. The ST003AS suction tube set is sold separately. Go to the 10:1 R1000S only if your hose run is very long, as it moves less oil.
Where this product is used
- Wall or remote mounted oil pumping in medium to large workshops
- Mobile applications that need an air-operated oil pump
- Pumping oils up to SAE140, coolants, kerosene and diesel
Features
- 5:1 ratio for high flow over longer distances
- Free flow of up to 32 L/min on SAE10 oil, 30 L/min on 15W-40 and 28 L/min on SAE90
- Handles oils up to SAE140, coolants, kerosene and diesel
- Heavy-duty aluminium and steel air motor with large exhaust ports to prevent icing
- Built-in pressure relief valve on the 5:1 ratio pumps
- Maximum air inlet pressure of 1035 kPa (150 psi), with 6.9 bar recommended
- Maximum static head of 50 m (164 ft)
- Supplied with an airline lubricator and a 2" bung adaptor
- Service parts from Macnaught: R500-2K major service kit and R500-3K seal kit
- Recommended with the TD20-BLACKS wall bracket, an HG Series oil control gun and the TB25S telescopic suction tube
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | R500S-01 |
| Part number | R500S-01 |
| Range | R-SERIES |
| Type | Air-operated ratio piston pump |
| Ratio | 5:1 |
| Version | Stub pump, no suction tube |
| Free flow | Up to 32 L/min |
| Free flow at SAE10 / 15W-40 / SAE90 | 32 / 30 / 28 L/min |
| Suitable fluids | Oils up to SAE140, coolants, kerosene, diesel |
| Maximum air inlet pressure | 10.3 bar (1035 kPa, 150 psi) |
| Minimum air pressure | 4 bar (400 kPa, 60 psi) |
| Recommended air pressure | 6.9 bar (690 kPa, 100 psi) |
| Air consumption | 18 cfm at 6.9 bar |
| Noise level | 88 dB at 2 m |
| Maximum static head | 50 m (164 ft) |
| Air inlet | 1/4" female |
| Oil outlet | 3/4" female |
| Bung adaptor | 2" male |
| Wetted materials | Zinc, carbon steel, aluminium, brass, nitrile rubber |
| Drum size | 205 L drums (with a suction tube) |
Supplied with
- Pump with airline lubricator
- 2" bung adaptor
- No suction tube. The ST003AS suction tube set is sold separately
Related Macnaught products
- Macnaught R500 Major Service Kit: Major service kit
- Macnaught R500 Seal Kit: Seal kit
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

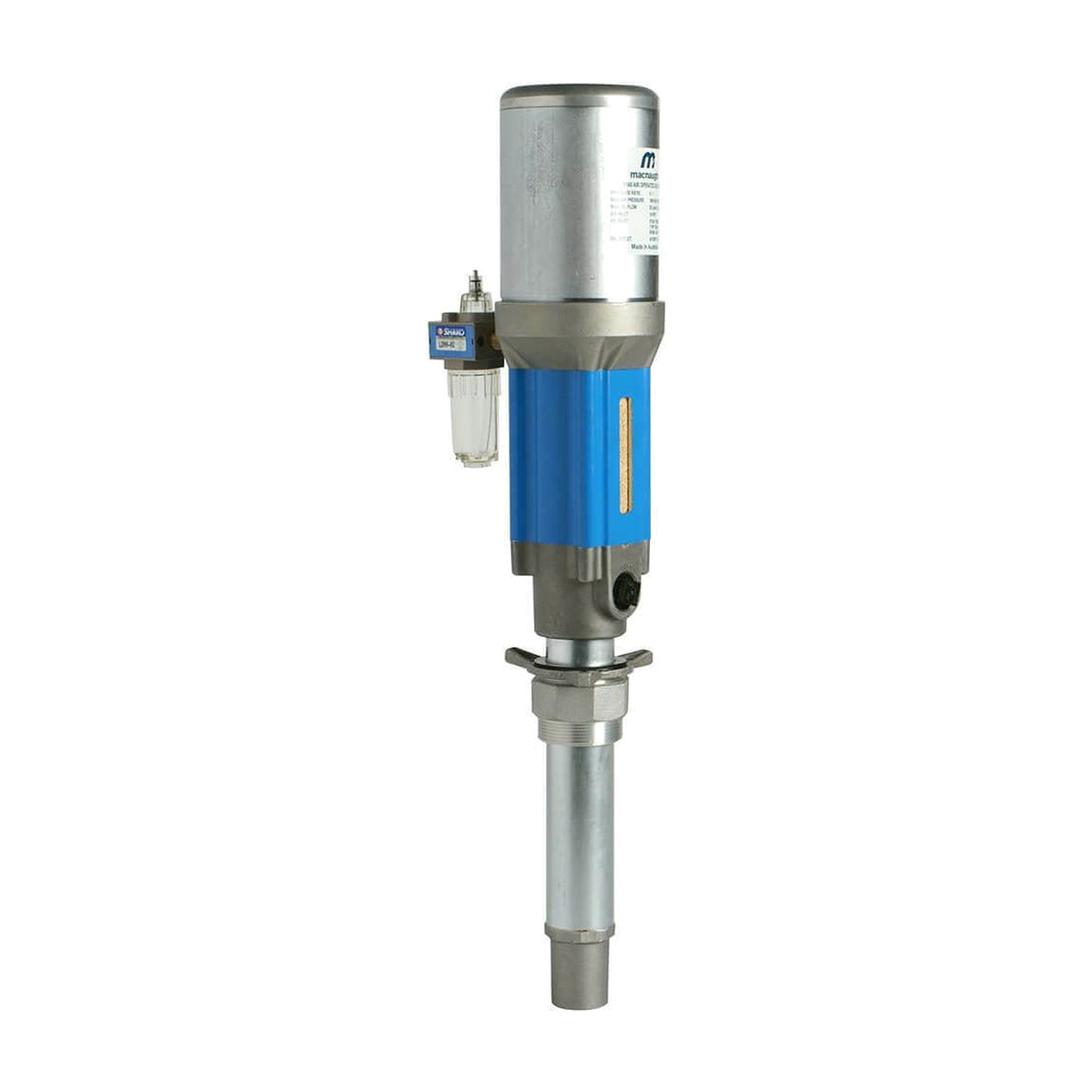

Macnaught R-SERIES 5:1 Stub Pump R500S-01
SKU: A0082866 | Model: R500S-01
The R500S-01 is the 5:1 stub pump in the R-series, for medium to large workshops and mobile applications. It has a free flow of up to 32 L/min, handles oils up to SAE140, and is supplied with an airline lubricator and a 2" bung adaptor. A suction tube is not included.
