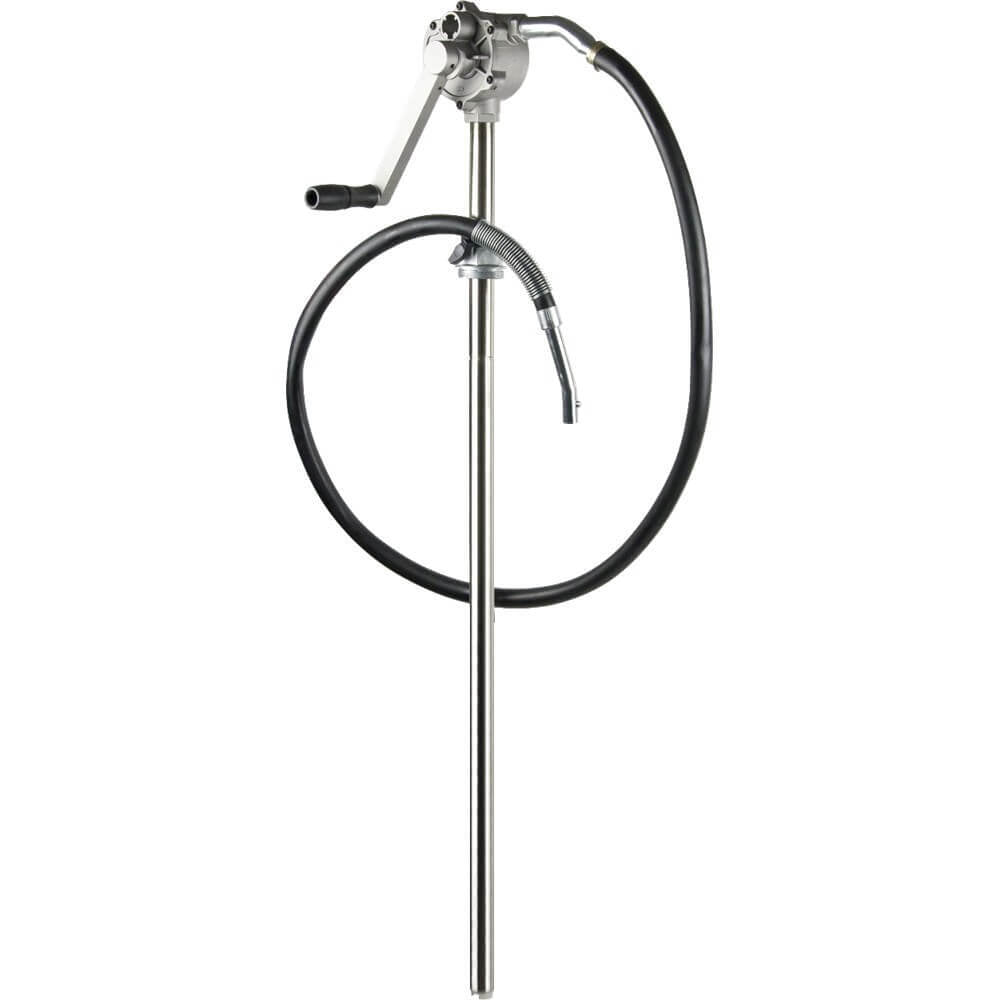

Macnaught Rotary Vane Pump RVP-01 (60 - 200L Drum)
Available
The Macnaught RVP-01 is a rotary vane pump for 60 L and 205 L drums. It moves diesel, kerosene and light oils up to SAE90, and it delivers up to 20 L/min. It is self-priming, so it gets itself going without you priming the pump first, and its rotary action pumps in both directions. It is not suitable for petrol.
It comes with a 1.8 m delivery hose and a standard nozzle, and a sliding 2" bung adaptor lets it suit both drum sizes. The in-built nozzle holder prevents siphoning.
Where this product is used
- Transferring diesel from 60 L and 205 L drums
- Moving kerosene and mineral-based engine and gear oils up to SAE90
- Dispensing from tanks up to 0.9 m deep
Features
- Self-priming, with a rotary action that pumps in both directions
- Delivers up to 20 L/min on diesel
- Suits 60 L and 205 L drums through a sliding 2" BSP bung adaptor
- Also suits tanks up to 0.9 m deep
- Supplied with a 1.8 m delivery hose and a standard nozzle
- In-built nozzle holder prevents siphoning
- Handles oils up to SAE90 at 20°C
- Wetted parts are aluminium, steel, zinc and nitrile rubber
- Optional VA-01 fuel filter kit and RVP-1K seal kit are available from Macnaught
- Not suitable for petrol. Chemicals, solvents and water cause premature failure of the seals
Key specifications
| Specification | Detail |
|---|---|
| Brand | Macnaught |
| Model | RVP-01 |
| Part number | RVP-01 |
| Type | Rotary vane drum pump |
| Flow | Up to 20 L/min |
| Suitable fluids | Diesel, kerosene, mineral-based engine and gear oils |
| Maximum viscosity | SAE90 at 20°C |
| Drum size | 60 L to 205 L |
| Bung adaptor | Sliding, 2" BSP |
| Maximum suction head | 1.2 m |
| Maximum discharge height | 2 m |
| Delivery hose | 1.8 m |
| Wetted materials | Aluminium, steel, zinc, nitrile rubber |
Supplied with
- Pump
- 1.8 m delivery hose
- Standard nozzle with in-built nozzle holder
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Macnaught Rotary Vane Pump RVP-01 (60 - 200L Drum)
SKU: A0082872 | Model: RVP-01
The RVP-01 is a self-priming rotary vane pump that moves diesel, kerosene and light oils up to SAE90 from 60 L and 205 L drums, at up to 20 L/min. It has a 1.8 m delivery hose, a standard nozzle and an in-built nozzle holder. It is not suitable for petrol.
