Mitutoyo 7010S-10 Magnetic Stand

Mitutoyo Series 7 magnetic stands clamp to iron or steel with a strong force. Machinists, fitters and toolroom staff use them to mount a dial test indicator or dial indicator on a machine tool or fixture for general alignment work. The holding force is approximately 600 N on all four models, measured as the force needed to pull the stand straight off a thick, flat steel object.

The four models differ in how the indicator is held. The 7010S-10 is the basic stand. The 7011S-10 adds fine adjustment. The 7012-10 takes 6mm, 8mm and 0.375" stems and suits a dial test indicator or a Series 1 compact or lightweight dial indicator. The 7033-10 is a universal stand with a mechanical locking system and a dovetail. A dial indicator is not included with any of them.

Where this product is used

• Mounting a dial indicator on a steel machine bed or fixture
• Alignment and setup work in machining
• Holding a dial test indicator at an awkward position with a universal stand

Features

• Approximately 600 N magnetic holding force on all four models
• Clamps to iron or steel surfaces
• Vertical and horizontal mounting holes with bushes for dial test indicators and dial indicators
• 7010S-10 and 7011S-10 hold 4mm, 8mm and 0.375" stems

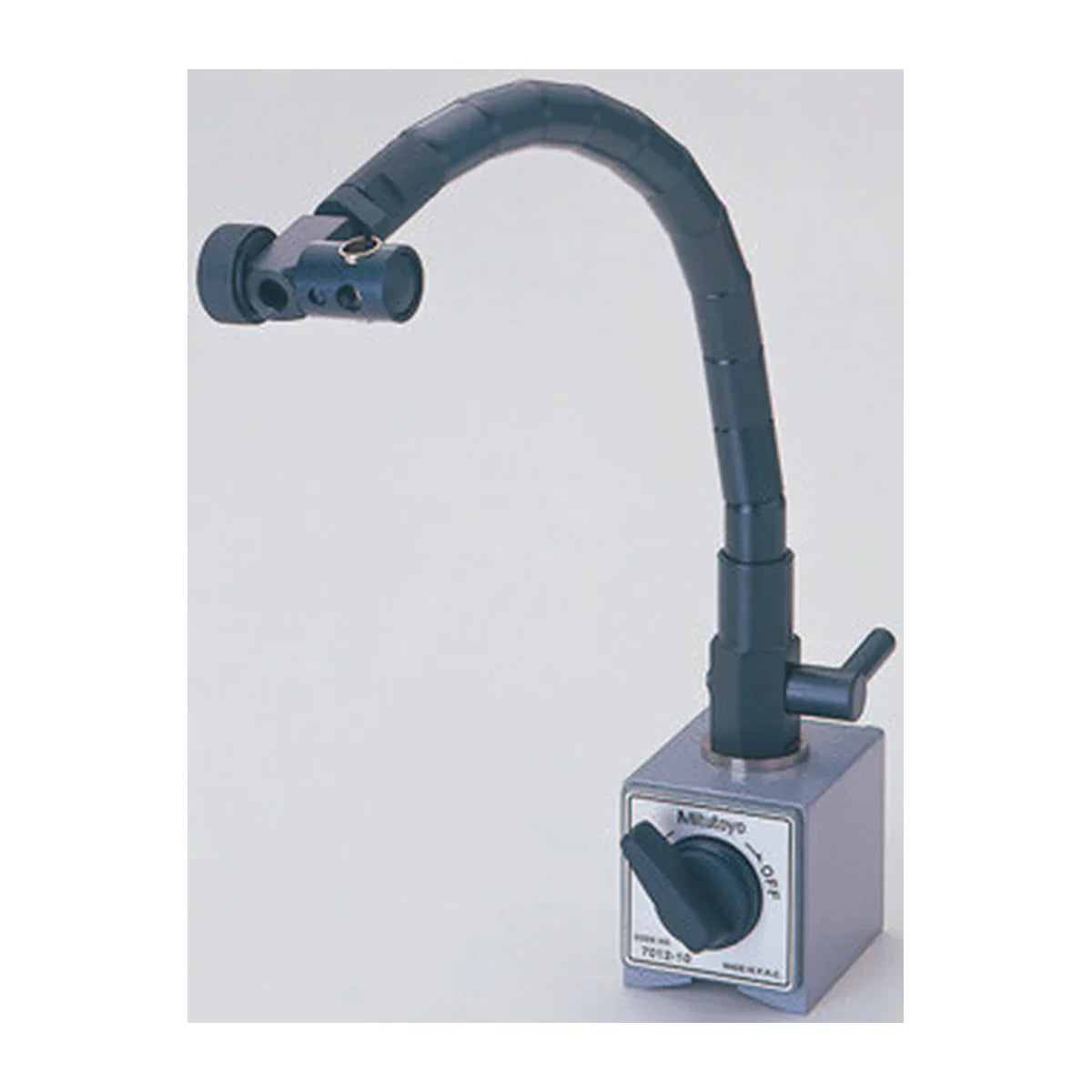

• 7012-10 and 7033-10 hold 6mm, 8mm and 0.375" stems

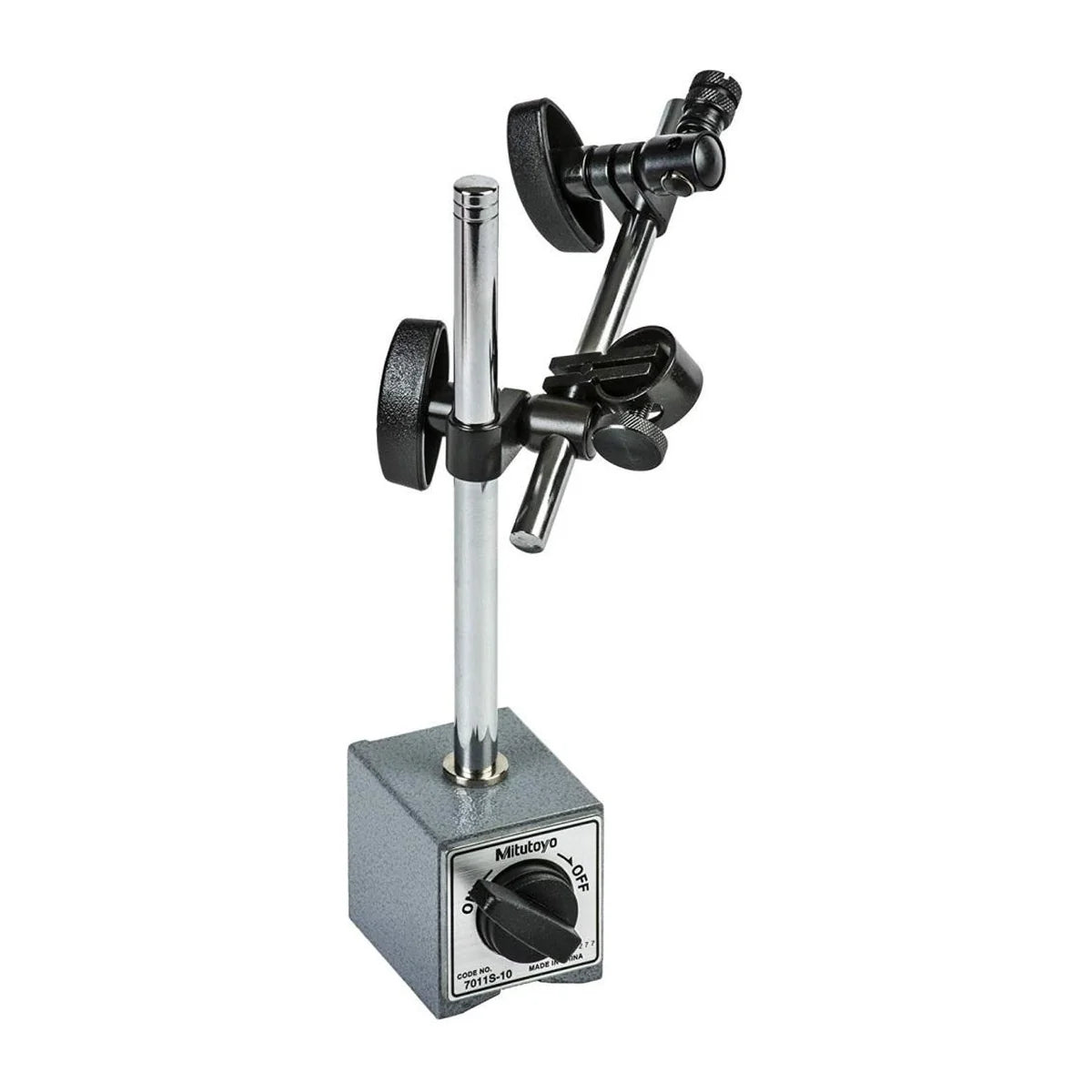

• 7011S-10 has fine adjustment

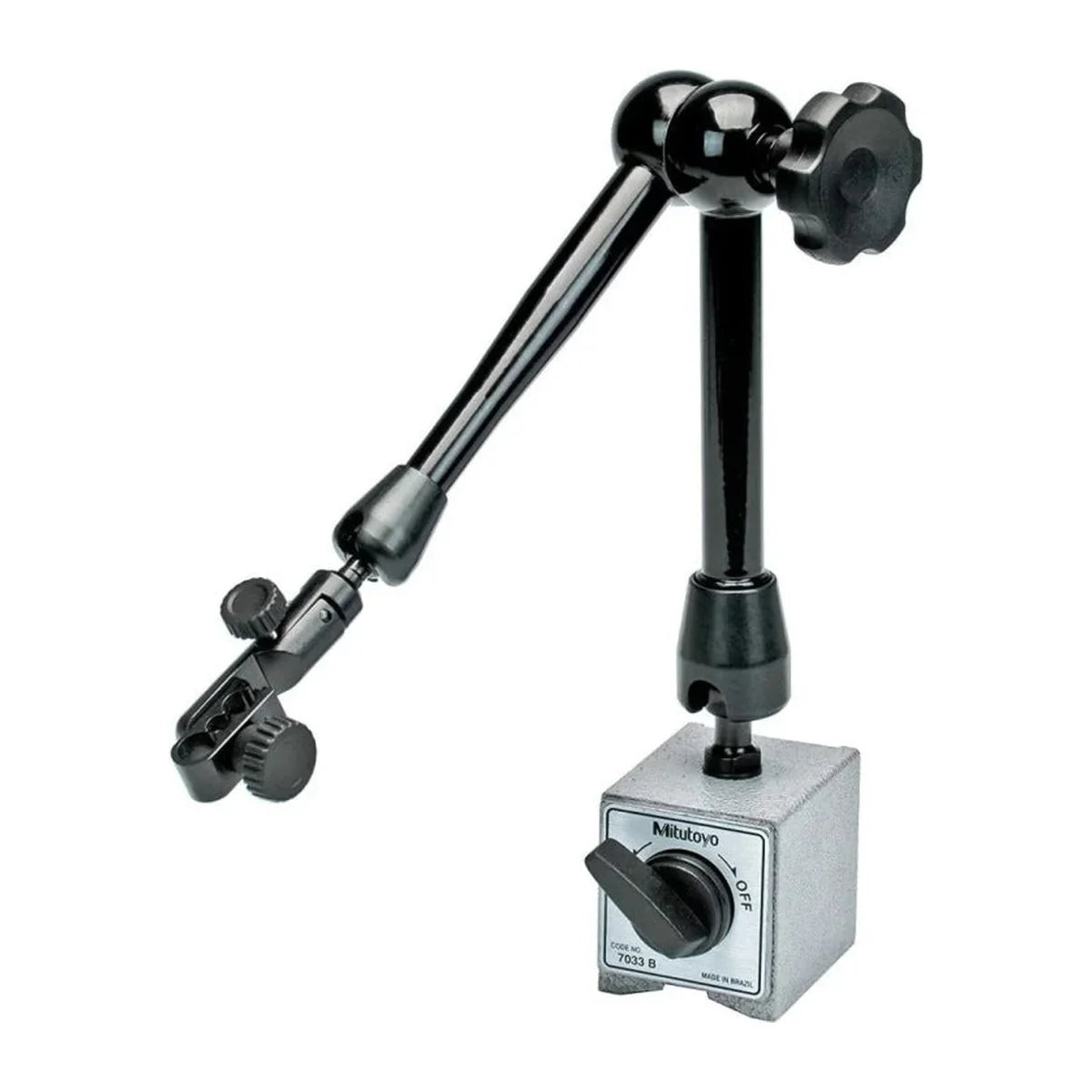

• 7033-10 has a mechanical locking system and a dovetail groove in the swivel holder
• 50mm x 59mm base

Key specifications

Supplied with

• One magnetic stand per option
• Not included with the stands: dial indicator
