Magswitch BoomerAngle adjustable magnetic welding angle, 150
Available

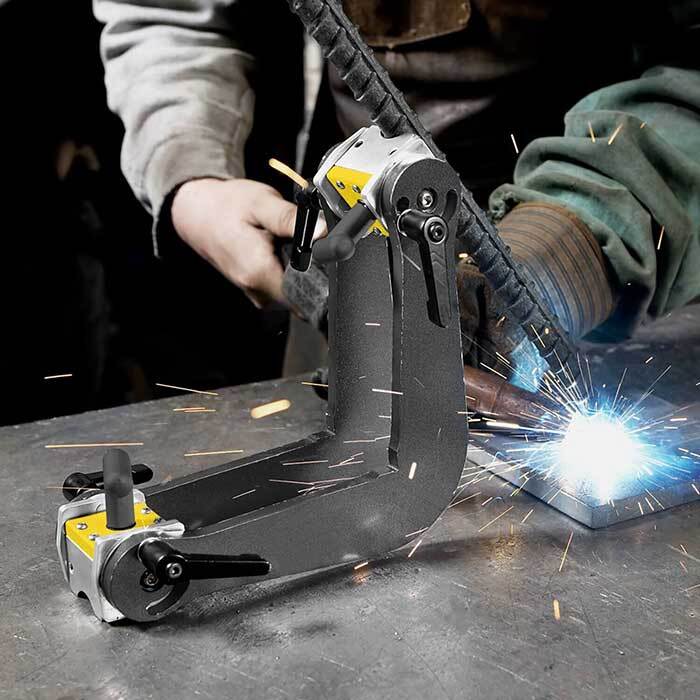

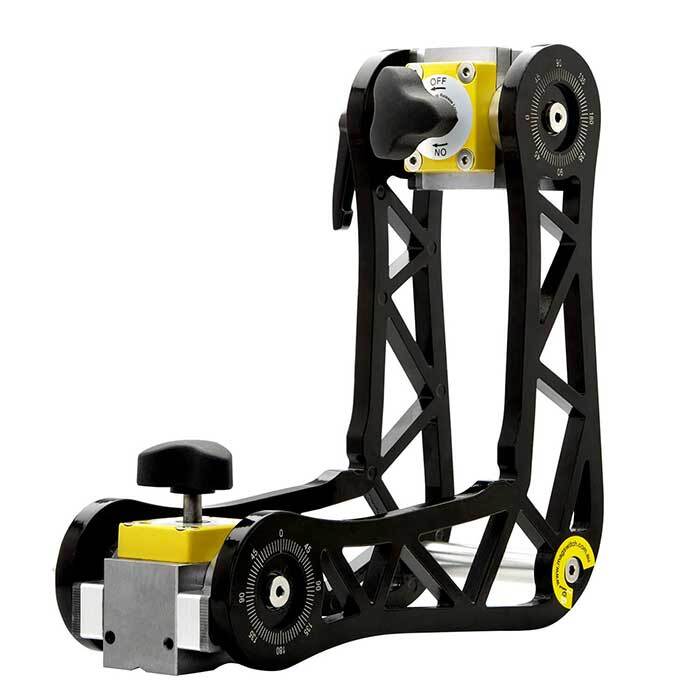

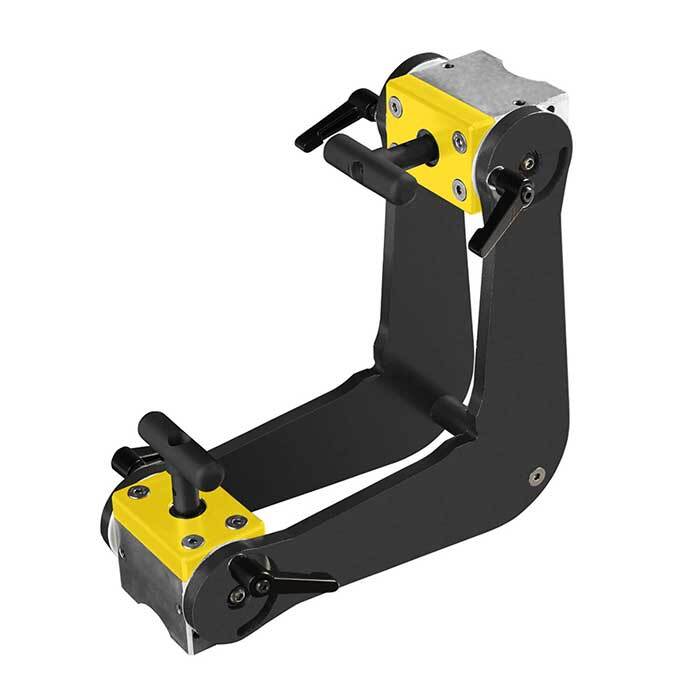

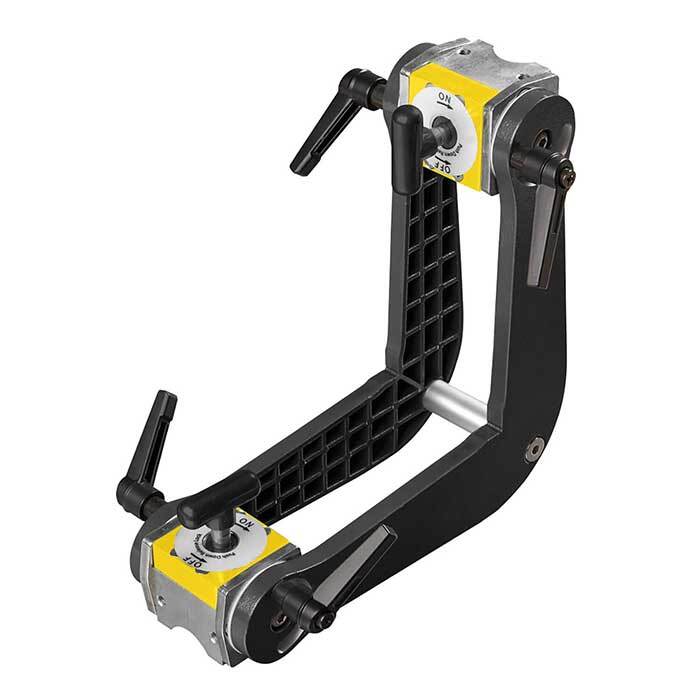

The Magswitch BoomerAngle is an adjustable magnetic angle for holding steel while you tack and weld. It has a fixed 90 degree angle on the inside and outside, plus adjustment to any angle in between. It provides virtually unlimited angles, including a pre-set for 90 degree holding. A rotating MagSquare sits at the end of each axis, giving strong, precise magnetic control.
It comes in three sizes: BoomerAngle 150, 400 and 600. It can handle larger, heavier steel as you go up in size. Maximum breakaway is the force needed to pull the magnet off clean, flat, thick steel. It is not a safe working load. To choose, start with the weight and thickness of the steel you are holding, and always test in your own application before use.
Where this product is used
- Holding steel at 90 degrees, inside or outside, for tacking and welding
- Holding steel at an angle other than 90 degrees
- Fabricating frames and fixtures with mixed angles
- Positioning larger and heavier steel with the 400 or 600 model
Features
- Fixed 90 degree angle on the inside and outside
- Adjusts to any angle in between

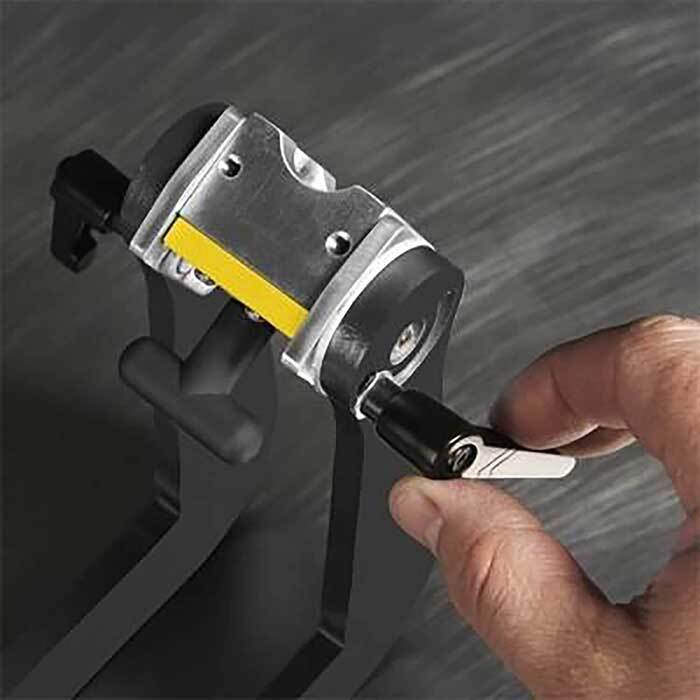

- Rotating MagSquare at the end of each axis
- Strong, precise magnetic control
- Can handle larger, heavier steel
- Three models from BoomerAngle 150 to BoomerAngle 600
- How to choose: the 150 suits lighter steel, the 400 is the mid size and the 600 holds the heaviest steel of the three
Key specifications
| Specification | Detail |
|---|---|
| Brand | Magswitch |
| Models and part numbers | BoomerAngle 150 (8100091), 400 (8100453), 600 (8100090) |
| Maximum breakaway | 150: 150 lb / 68kg. 400: 400 lb / 181kg. 600: 600 lb / 272kg |
| Full saturation thickness (steel thickness for full strength) | 150: 0.25" / 6mm. 600: 3/8" / 10mm |
| Shear holding (sideways load) | 150: maximum safe shear 14 lb / 6kg. 400: 20 lb / 9kg (2:1 working load). 600: 61 lb / 27kg (2:1 working load) |
| Pole footprint | 150: 40mm x 40mm. 400: 64mm x 41.26mm. 600: 75mm x 51.5mm |
| Net weight | 150: 2.9 lb / 1.3kg. 400: 6.6 lb / 3.0kg. 600: 9.7 lb / 4.4kg |
| Breakaway test | Lab test on 2" thick SAE1018 steel, 63 micro inch surface. Maximum breakaway is not a safe working load |
| Warning | Do Not Operate Unless In Contact With Ferrous Target |
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 150 | A0160201 | |
| 400 | A0160202 | |
| 600 | A0160203 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Magswitch BoomerAngle: 150
SKU: A0160201 | Model: 8100091
The option labelled 150 is the Magswitch BoomerAngle 150, part number 8100091. It is the smallest model, with a maximum breakaway of 150 lb / 68kg, a pole footprint of 40mm x 40mm and a net weight of 1.3kg. Steel 0.25" / 6mm thick gives it full strength.
