Magswitch Hand Lifter 60-CE (Cordless Electric) With Holster 8800487
Available

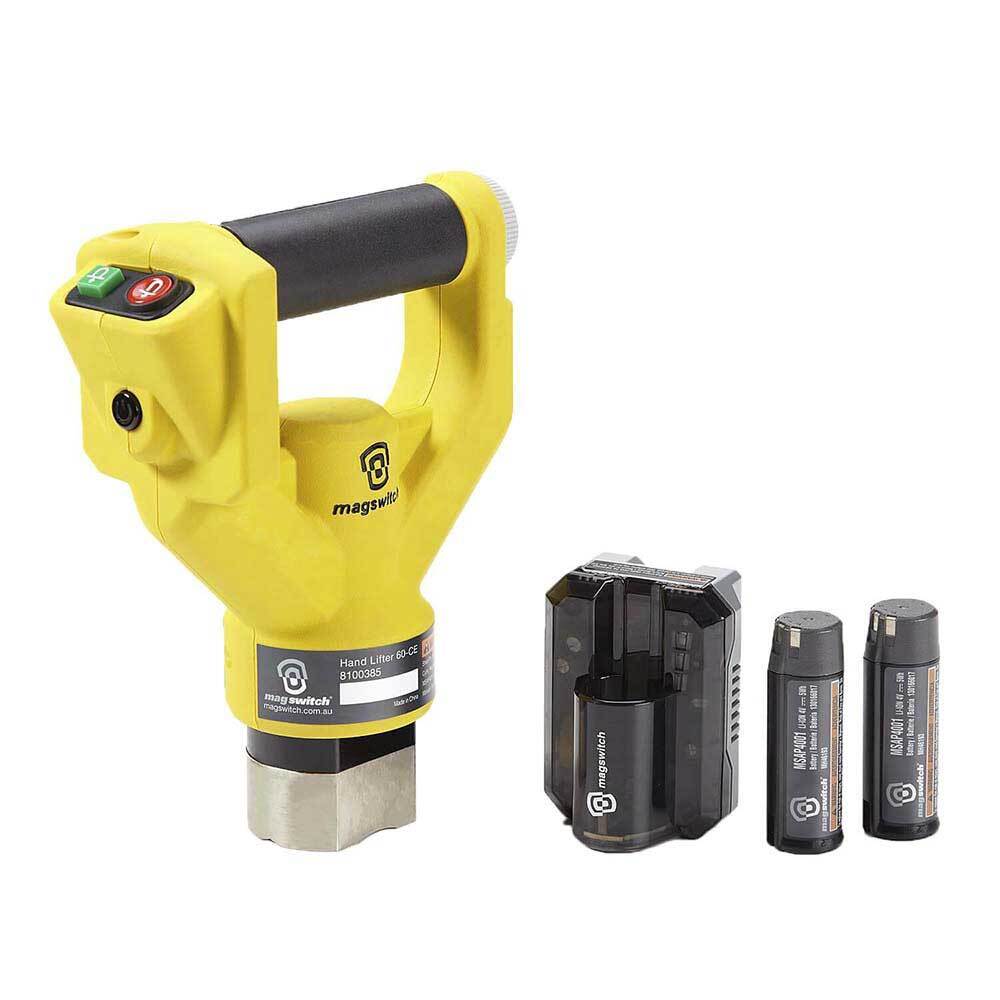

The Magswitch Hand Lifter 60-CE is a cordless electric hand lifter for steel. Push a button to switch the magnet on to lift and off to release. It holds flat and round steel surfaces and comes with two rechargeable 4V lithium-ion batteries, a charger and a holster.
Breakaway force is the force needed to pull the magnet straight off clean, flat, thick steel. It is a lab figure on ideal steel and is not a safe working load. If the power runs out while the unit is under load, the magnet stays on. Testing the magnet in your own application before use.
Where this product is used
- Welding and fabrication
- Lifting and moving steel in manufacturing
- Automation and robotics
- Material handling
Features
- Push-button switching to lift and release steel
- 100% duty cycle, so the magnet can stay on indefinitely
- Magnet stays on if the power runs out while the unit is under load
- Batteries give 2000 actuations per charge and recharge in 20 minutes, with a battery strength indicator light
- Maximum breakaway of 197lb (89.4kg) on thick, clean, flat steel, a lab figure and not a safe working load
- Safe working load of 66lb (30kg) at a 3:1 safety factor

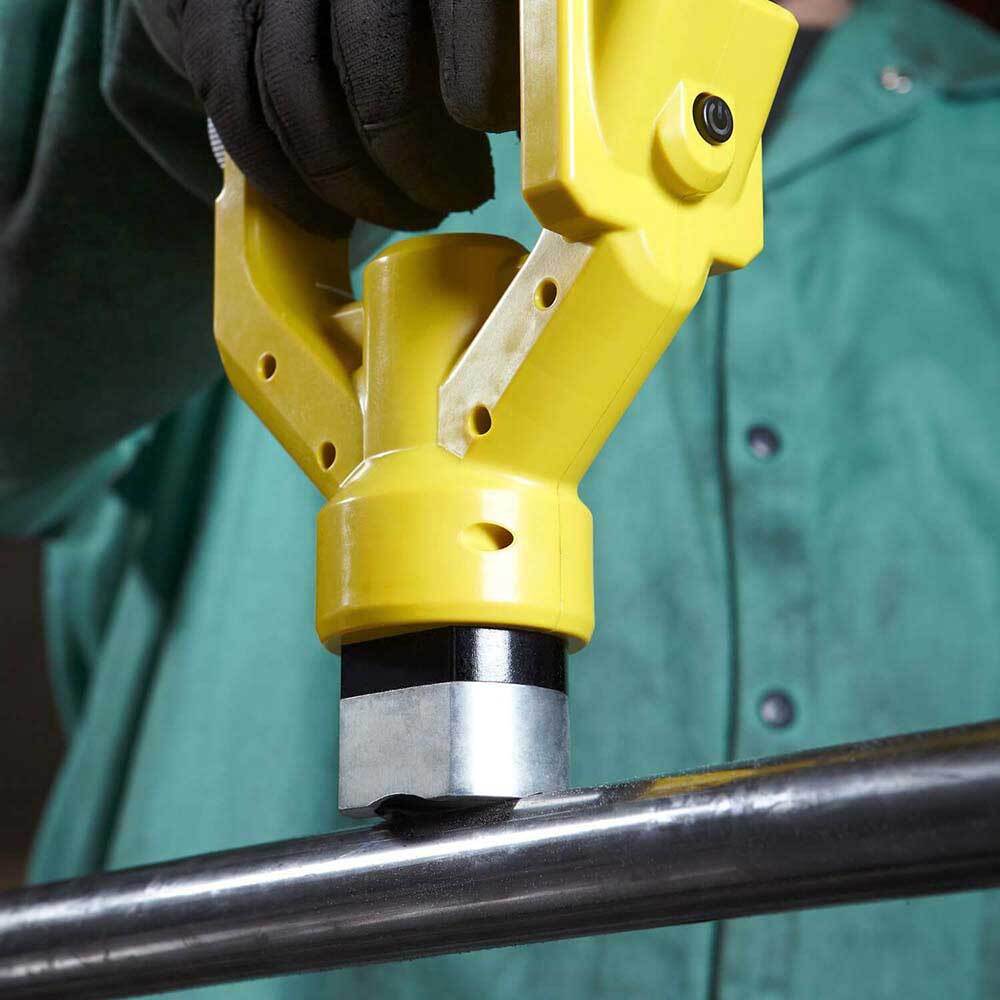

- Holds flat and round steel surfaces, and the magnet stays clean
- Warning: Do not operate unless in contact with a ferrous target (iron or steel)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Magswitch |
| Model | Hand Lifter 60-CE (cordless electric) with holster |
| Part number | 8800487 |
| Maximum breakaway (lab figure) | 197lb (89.4kg) |
| Safe working load | 66lb (30kg) at a 3:1 safety factor |
| Maximum safe shear (sideways load) | 45lb (20.4kg) |
| Full saturation thickness | 1/4" (6.35mm) |
| Minimum thickness for de-stacking | 1/4" (6.35mm) |
| Net weight | 1.1kg |
| Overall height | 209.3mm |
| Magnetic pole footprint | 56mm x 42mm |
| Batteries | Two rechargeable 4V lithium-ion |
| Recharge time | 20 minutes |
| Actuations per charge | 2000 |
| Breakaway test basis | Lab test on 2" thick SAE1018 steel, surface roughness 63 micro inches |
| Warning | Do not operate unless in contact with a ferrous target (iron or steel) |
Supplied with
- Two rechargeable 4V lithium-ion batteries
- Charger

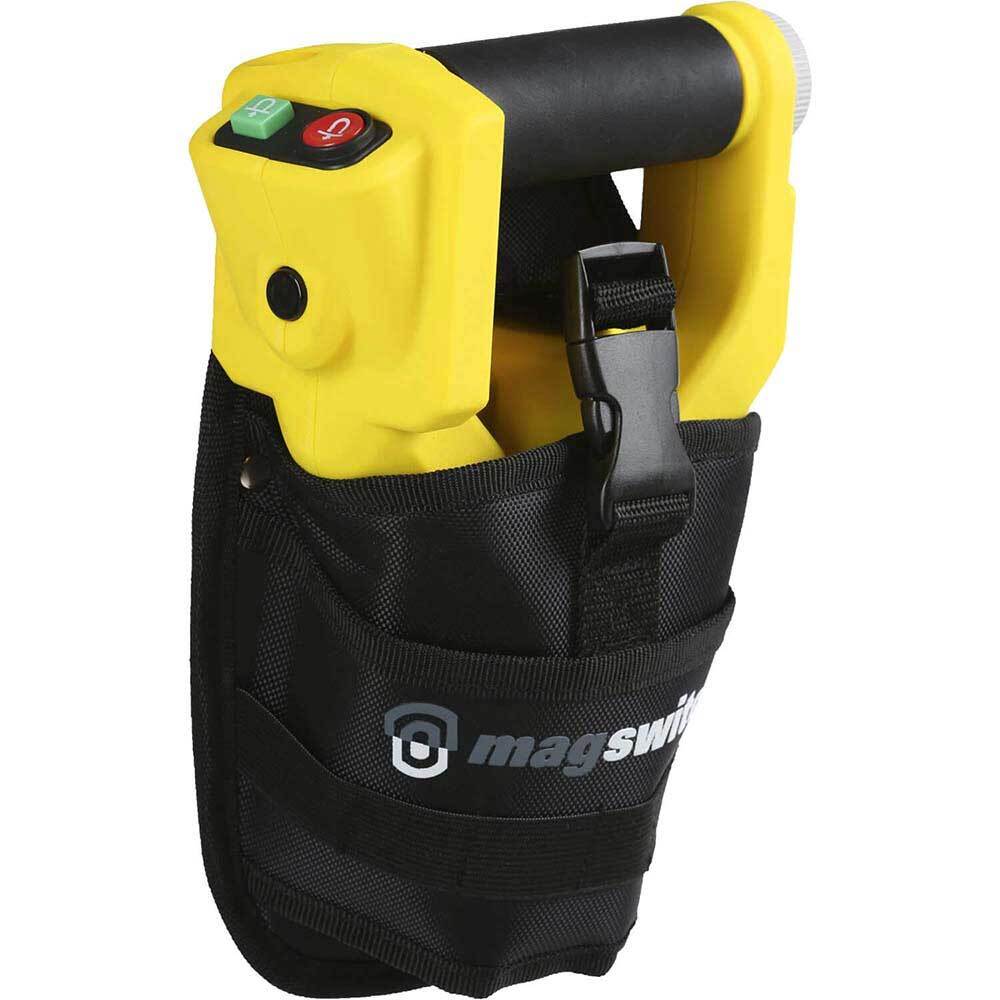

- Holster
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Magswitch Hand Lifter 60-CE (Cordless Electric) With Holster 8800487
SKU: A0171095 | Model: 8800487
The Magswitch Hand Lifter 60-CE is a cordless electric hand lifter you switch on and off with a push button. It includes two rechargeable 4V lithium-ion batteries, a charger and a holster, and the magnet stays on if the power runs out under load.
