Magswitch MagMount switchable top-mount magnet, 150
Available
The Magswitch MagMount is a switchable magnet with threaded holes on top, so you can mount tools, measuring gear, fixtures and security devices on steel. The magnetic field turns completely on and off mechanically and needs no electrical power. The magnet stays clean, and it holds flat and round steel. Use it in a fixed position or on items being moved.
It comes in five models: MagMount 150, 235, 300, 400 and 600. The model number is a name, not an exact pull rating. Maximum breakaway is the force needed to pull the magnet off clean, flat, thick steel. It is not a safe working load. To choose, start with the weight of what you are mounting and the thickness of the steel. Thin steel holds less than the figure shown. The 150 and 235 suit light fixtures, the 300 and 400 are the middle sizes, and the 600 is the strongest.
Where this product is used

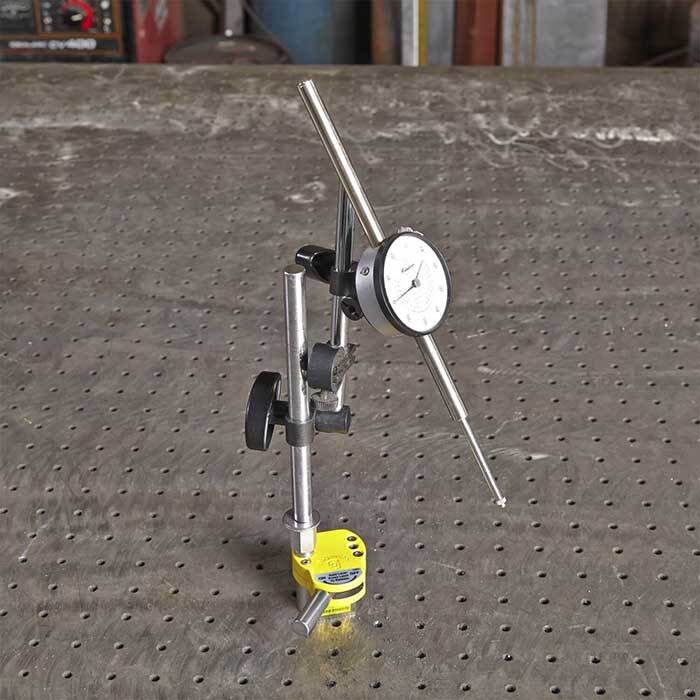

- Mounting measuring tools and gauges on steel
- Fixing security devices to steel
- Holding fixtures and top-mount tools in a fabrication shop
- Moving and placing tools or items held in position by the magnet
Features
- Magnetic field turns completely on and off mechanically, with no electrical power source
- Multiple threaded holes on the top for mounting tools and fixtures
- Magnet stays clean
- Holds flat and round surfaces of steel
- Fixed bar magnet for flat steel, swivel bar magnet for round or uneven shapes
- Use in a fixed position or for items being transported
- Five models from MagMount 150 to MagMount 600
- How to choose: match the model to the weight of the item and the steel thickness, because thin steel holds less than the maximum breakaway shown
Key specifications
| Specification | Detail |
|---|---|
| Brand | Magswitch |

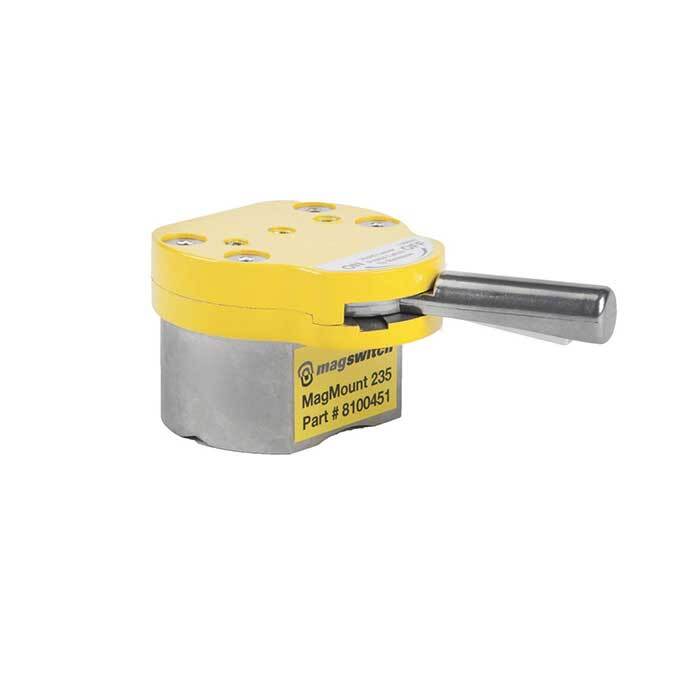

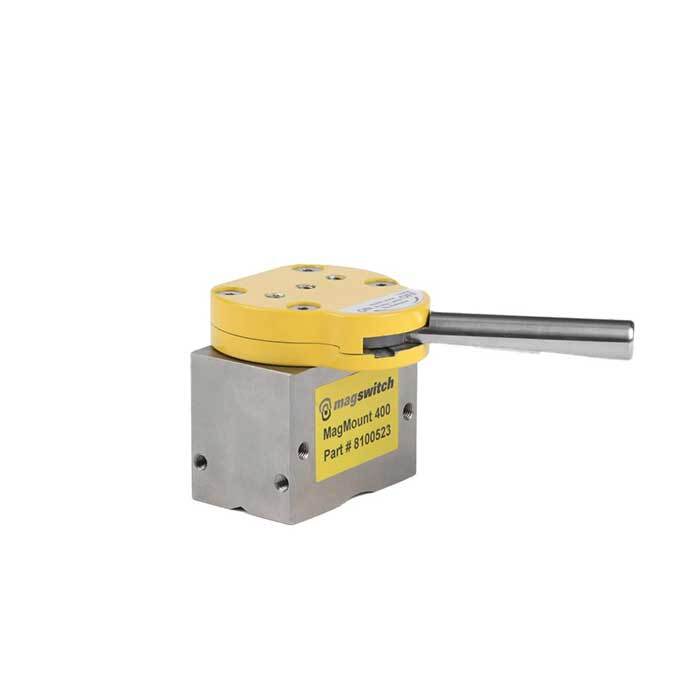

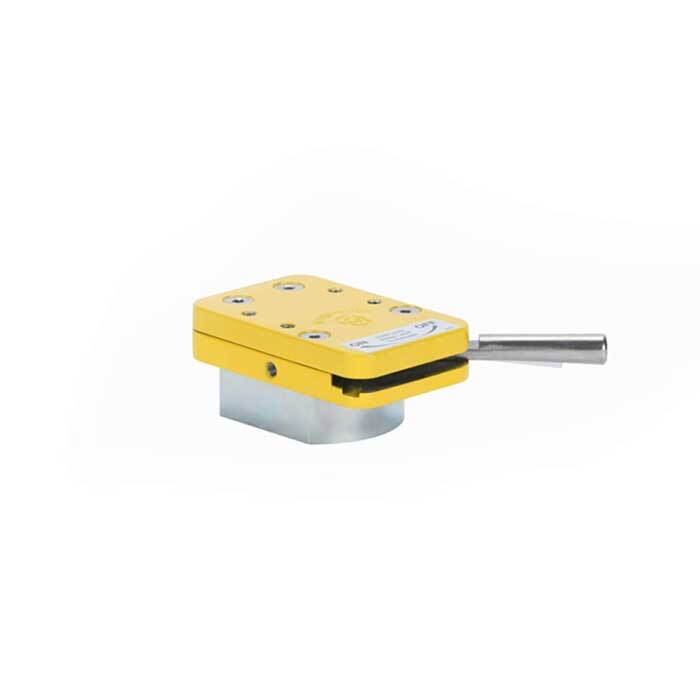

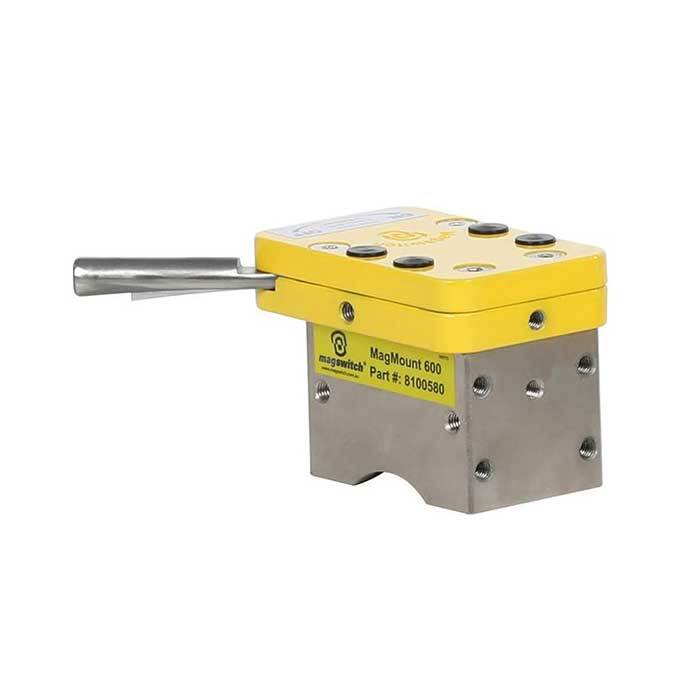

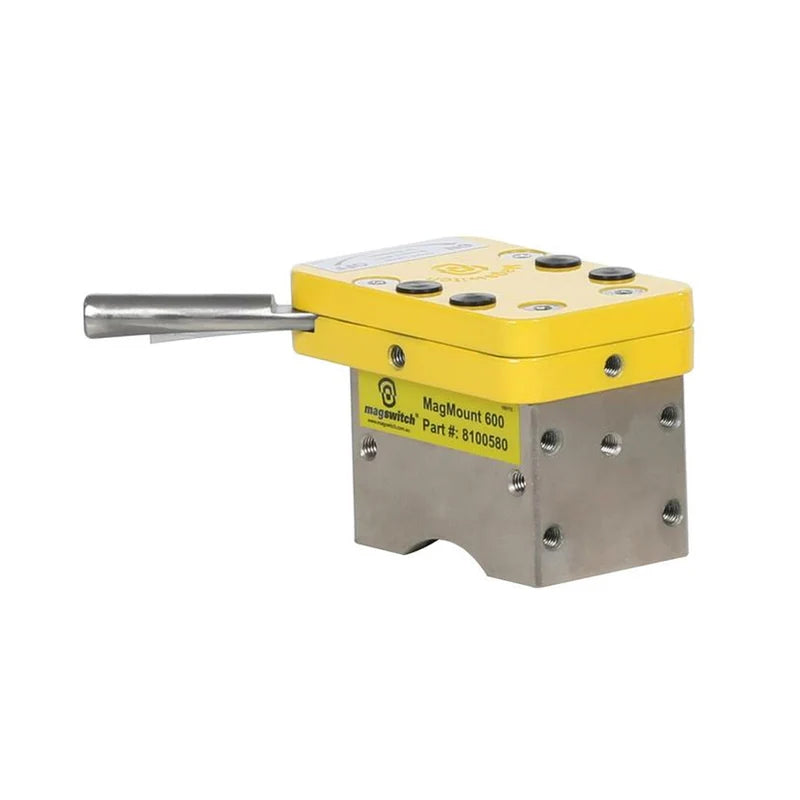

| Models and part numbers | MagMount 150 (8100579), 235 (8100451), 300 (8100595), 400 (8100523), 600 (8100580) |
| Maximum breakaway | 150: 150 lb / 68kg. 235: 235 lb / 106kg. 300: 246 lb / 111kg. 400: 400 lb / 182kg. 600: 521 lb / 236kg |
| Full saturation thickness (steel thickness for full strength) | 150: 10ga / 2.5mm. 235: 3/16" / 4.75mm. 300: 3/16" / 4.75mm. 400: 1/4" / 6mm. 600: 3/8" / 9.5mm |
| Shear holding (sideways load) | 150: 10.6 lb / 4.8kg (2:1 working load). 600: maximum 104 lb / 47kg |
| Pole footprint | 150: 40mm x 31.2mm. 235: 56mm x 42mm. 300: 71.8mm x 51.5mm. 400: 64mm x 41.26mm. 600: 75.0mm x 51.5mm |
| Net weight | 150: 0.4kg. 235: 0.5kg. 300: 0.5kg. 400: 0.5kg |
| Overall height | 150: 32mm. 300: 1.7 in / 43.8mm. 400: 65mm. 600: 72.0mm |
| Breakaway test | Lab test on 2" thick SAE1018 steel, 63 micro inch surface. Maximum breakaway is not a safe working load |
| Warning | Do Not Operate Unless In Contact With Ferrous Target |
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 150 | A0160207 | |
| 235 | A0160208 | |
| 246 | A0160209 | |
| 400 | A0160210 | |
| 600 | A0160211 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

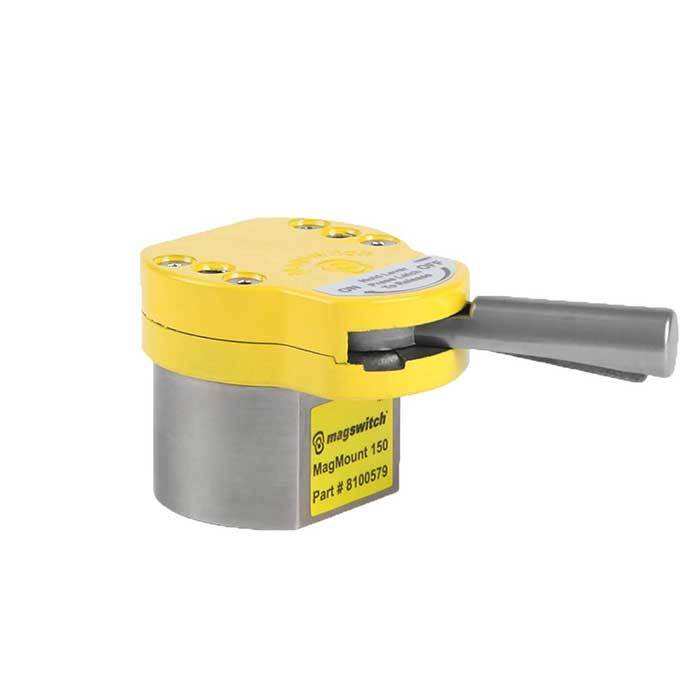

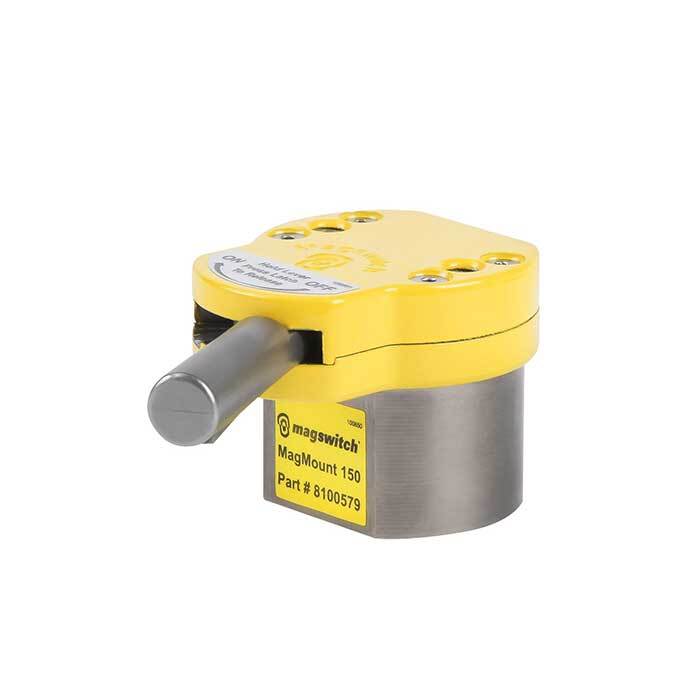

Magswitch MagMount: 150
SKU: A0160207 | Model: 8100579
The option labelled 150 is the Magswitch MagMount 150, part number 8100579. It is the smallest model, with a maximum breakaway of 150 lb / 68kg, a pole footprint of 40mm x 31.2mm and a net weight of 0.4kg. Steel 10ga / 2.5mm thick gives it full strength.
