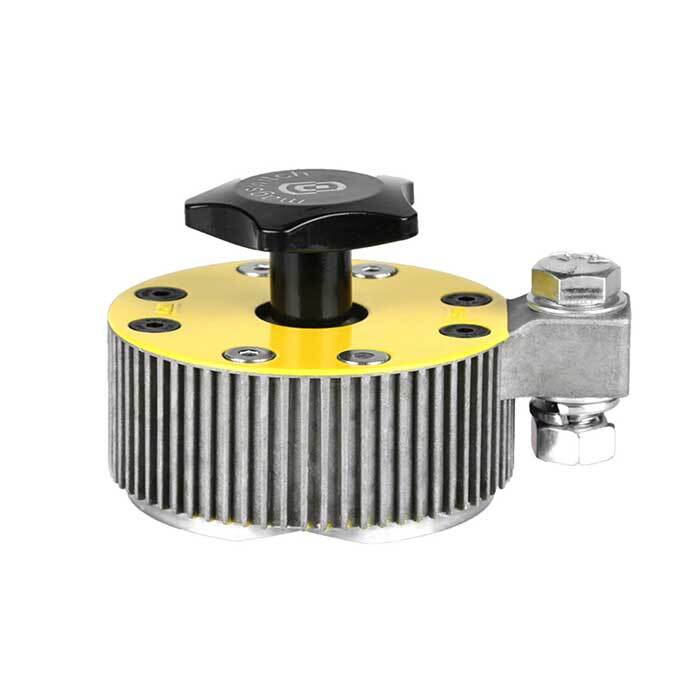

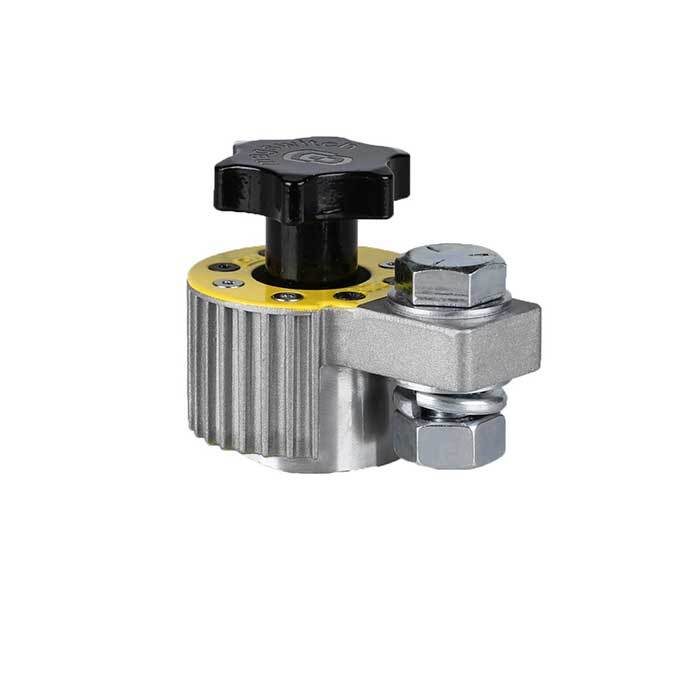

Magswitch finned magnetic ground clamp, 40
Available

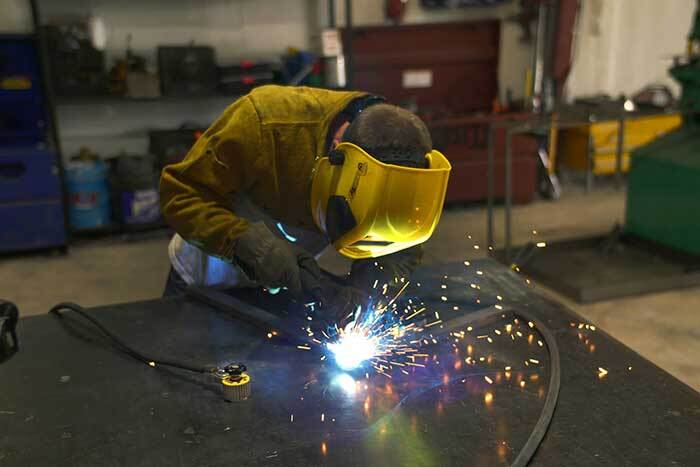

The Magswitch finned magnetic ground clamp gives a welder an instant ground on a flat surface or a pipe. To place it on a clean work surface, turn it on and start welding. There is no hunting for a ground point and no tacking on tabs for big sheet or pipe jobs.
It is sold as a 300 Amp, 600 Amp or 800 Amp model. The magnet is switched on and off by hand, needs no electrical power, and switching it off lets you wipe away metal shavings. The bigger the model, the stronger the hold: magnet strength is 40kg on the 300, 89kg on the 600 and 136kg on the 800. Magnet strength is the force needed to pull the magnet off clean, flat, thick steel. It is not a safe working load.
Where this product is used
- Grounding on large sheet-weld jobs without tacking on tabs
- Grounding on pipe work
- Moving a ground point quickly around a fabrication job
Features
- Instant ground on a flat surface or a pipe
- Place on a clean work surface, turn it on and start welding
- Magnetic field turns completely on and off mechanically, with no electrical power source
- Reusable, with quick and easy connect and disconnect
- Turn off to wipe away metal shavings
- Mounts to flat and round surfaces of steel
- Finned design, which lowers the temperature of the unit
- How to choose: the 300 Amp (40kg), 600 Amp (89kg) and 800 Amp (136kg) models are named by amp size, so match the model to your welding setup and check the amp rating with Magswitch if you need it confirmed
Key specifications
| Specification | Detail |
|---|---|
| Brand | Magswitch |
| Models and part numbers | 300 Amp (8100746), 600 Amp (8100747), 800 Amp (8100552) |
| Magnet strength (maximum breakaway) | 300 Amp: 90 lb / 40kg. 600 Amp: 200 lb / 89kg. 800 Amp: 300 lb / 136kg |
| Pole footprint | 300 Amp: 40mm diameter. 600 Amp: 69mm diameter. 800 Amp: 89mm diameter |
| Net weight | 300 Amp: 0.4kg. 600 Amp: 0.8kg. 800 Amp: 1.6kg |
| Overall height | 300 Amp: 57.3mm. 800 Amp: 74mm |
| Warning | Do Not Operate Unless In Contact With Ferrous Target |
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 40 | A0160204 | |

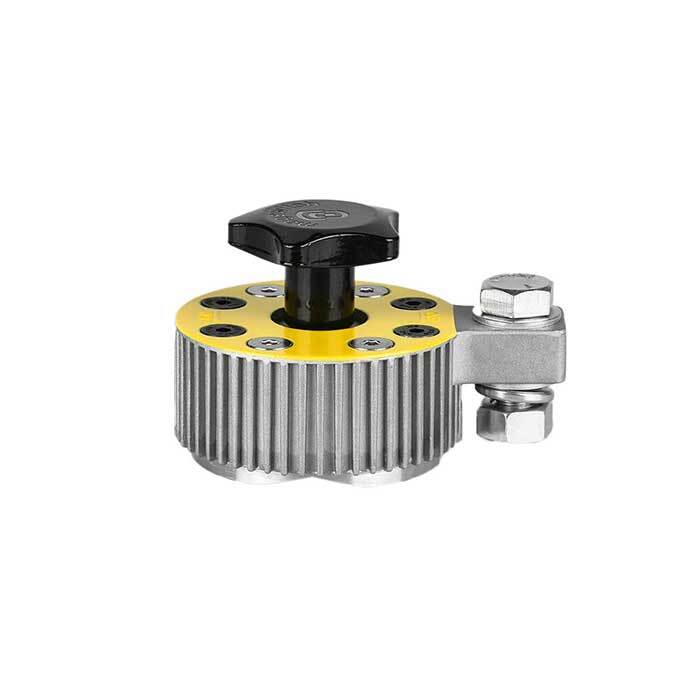

| 89 | A0160205 | |
| 136 | A0160206 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Magswitch Magnetic Ground Clamp With Fins: 40
SKU: A0160204 | Model: 8100746

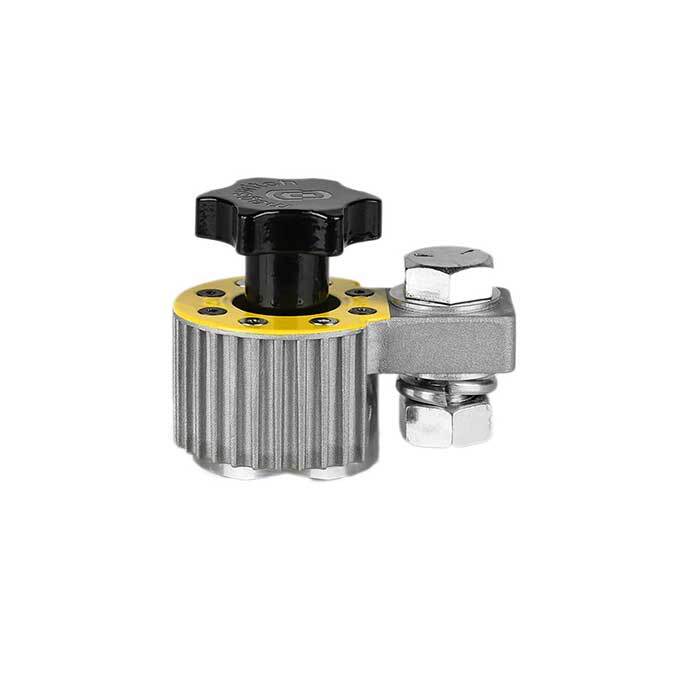

The option labelled 40 is the Magswitch 300 Amp Finned Magnetic Ground Clamp, part number 8100746. The 40 is its magnet strength in kg (90 lb). It is the smallest of the three, with a pole footprint of 40mm diameter. It gives an instant ground on a flat surface or a pipe.
