Magswitch MagSquare switchable workholding magnet, 400
Available

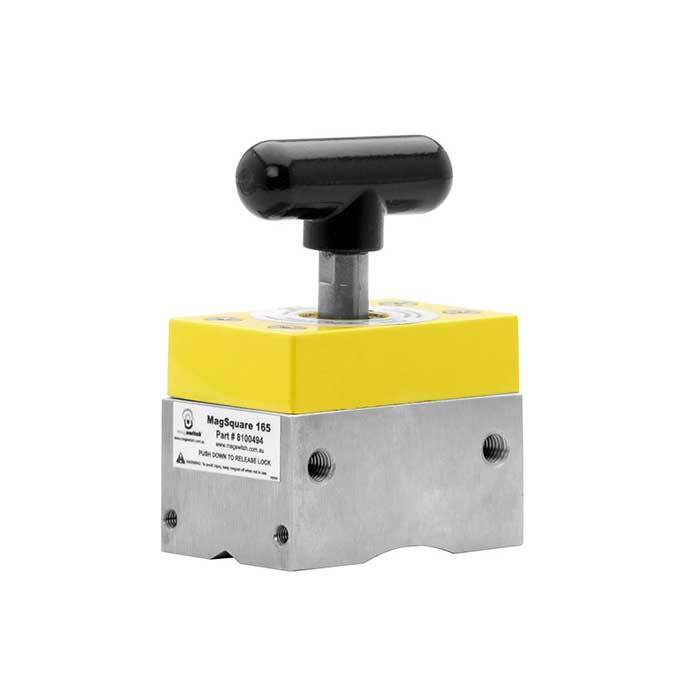

The Magswitch MagSquare is a switchable magnetic block for workholding and fixturing. It is machined at 90 degrees with pre-tapped holes for mounting tools, jigs and fixtures, so you can fabricate angles, pull corners, secure steel for cutting, use it as a guide or build your own fixtures. It works on any steel surface with no edge needed, unlike a C-clamp, and nothing sticks when it is switched off.
It comes in four models: MagSquare 165, 400, 600 and 1000. On the 400 and 1000, a fast 180 degree turn of the knob switches it on and off. Maximum breakaway is the force needed to pull the magnet off clean, flat, thick steel. It is not a safe working load. To choose, start with the weight and thickness of the steel you are holding and size up if in doubt. Always test in your own application before use.
Where this product is used

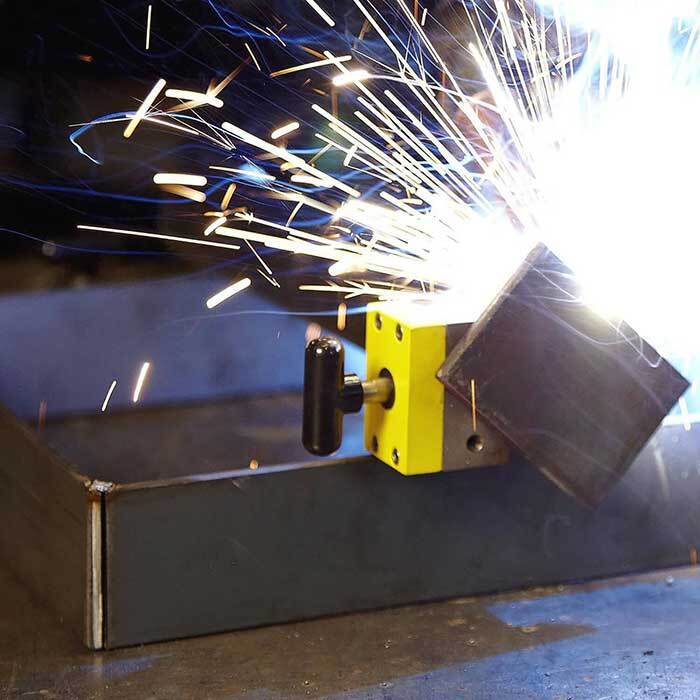

- Fabricating angles and pulling corners

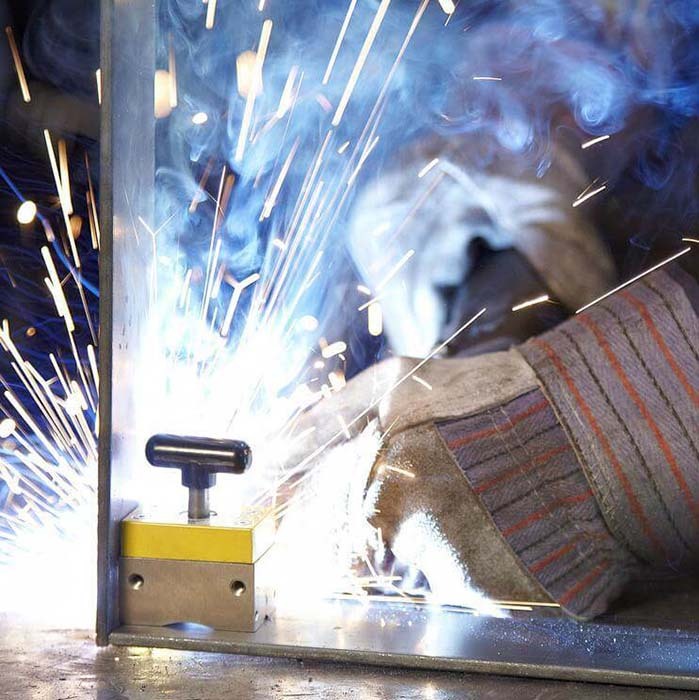

- Securing steel for cutting
- Using as a guide on steel work
- Making your own fixtures and jigs
- Workholding where a C-clamp cannot reach an edge
Features
- Multi-plane workholding capability
- Works on any steel surface, with no edge needed unlike C-clamps
- Machined at 90 degrees, with pre-tapped holes for mounting tools, jigs and fixtures
- Fast 180 degree turn of the knob turns it on and off
- Magnetic field turns completely on and off mechanically, with no electrical power source
- Releases fully when off, so nothing sticks
- Holds flat and round surfaces of steel
- Four models from MagSquare 165 to MagSquare 1000
- How to choose: the 165 suits light steel, the 400 and 600 are the middle sizes and the 1000 is the strongest and largest of the four
Key specifications
| Specification | Detail |
|---|---|
| Brand | Magswitch |
| Models and part numbers | MagSquare 165 (8100494), 400 (8100238), 600 (8100106), 1000 (8100099) |
| Maximum breakaway | 165: 150 lb / 68kg. 400: 400 lb / 181kg. 600: 600 lb / 272kg. 1000: 1000 lb / 454kg |
| Full saturation thickness (steel thickness for full strength) | 165: 0.25" / 6.35mm. 400: 0.25" / 6mm. 600: 3/8" / 10mm. 1000: 0.5" / 13mm |
| Shear holding (sideways load) | 165: 18.5 lb / 8.4kg. 400: 40 lb / 18kg. 600: 61 lb / 27kg. 1000: 148 lb / 67kg (all 2:1 working loads) |
| Pole footprint | 165: 48mm x 31mm. 400: 64mm x 41.26mm. 600: 75mm x 51.5mm. 1000: 72mm x 108mm |
| Net weight | 165: 0.5 lb / 0.23kg. 400: 2.0 lb / 0.91kg. 600: 3.0 lb / 1.36kg. 1000: 7.4 lb / 3.36kg |
| Overall height | 165: 64.25mm. 400: 90mm. 600: 106mm. 1000: 147mm |
| Breakaway test | Lab test on 2" thick SAE1018 steel, 63 micro inch surface. Maximum breakaway is not a safe working load |
| Warning | Do Not Operate Unless In Contact With Ferrous Target |
Choosing the right option

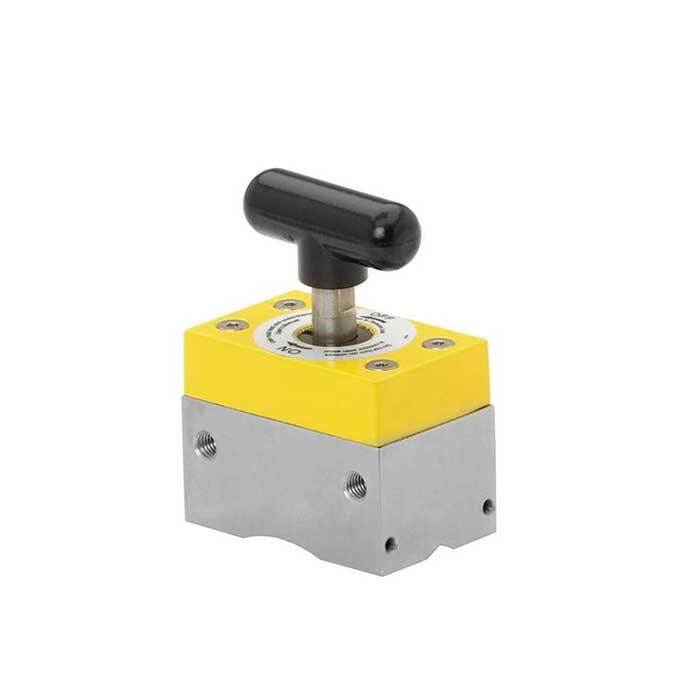

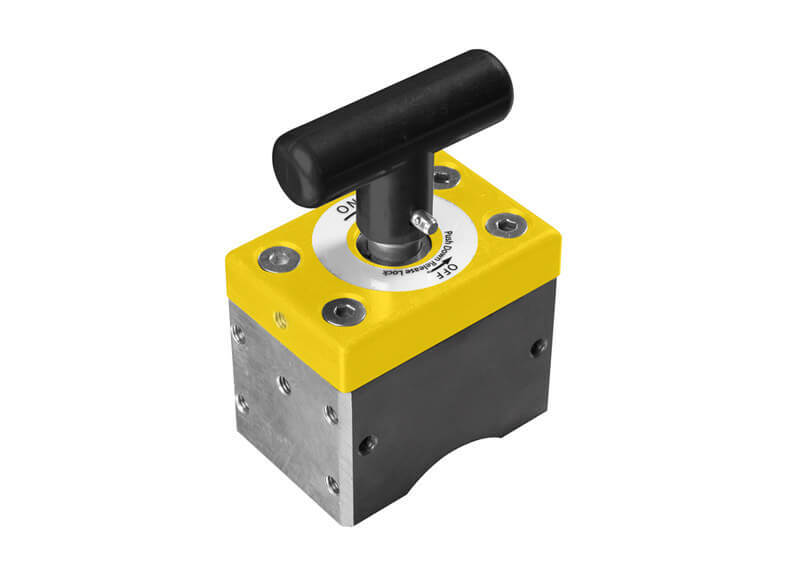

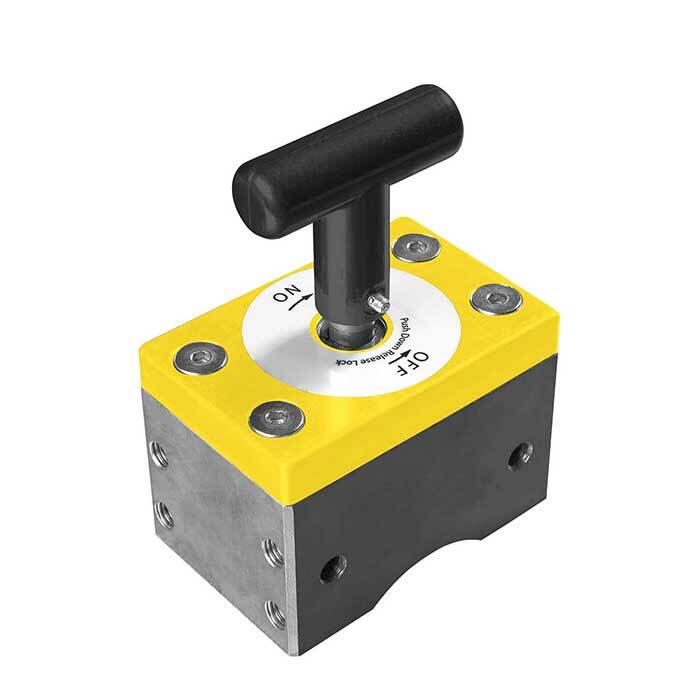

| Option | Part number | SKU |
|---|---|---|
| 150 | A0160212 | |
| 400 | A0160213 | |
| 600 | A0194947 | |
| 1000 | A0160214 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

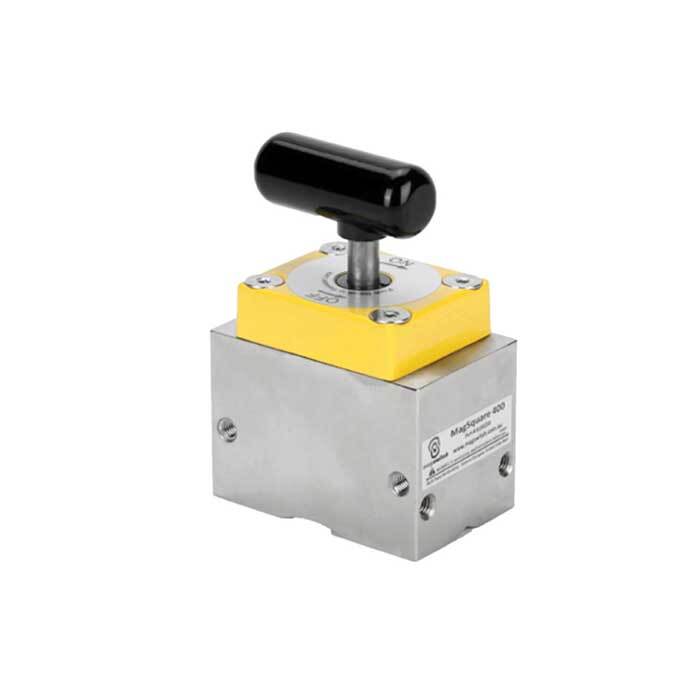

Magswitch MagSquare: 400
SKU: A0160213 | Model: 8100238
The option labelled 400 is the Magswitch MagSquare 400, part number 8100238. It has a maximum breakaway of 400 lb / 181kg, a pole footprint of 64mm x 41.26mm and a net weight of 0.91kg. Steel 0.25 in / 6mm thick gives it full strength.
