Magswitch Mini Multi Angle 400 Magvise Max Breakaway 400lb - 8100438
Available

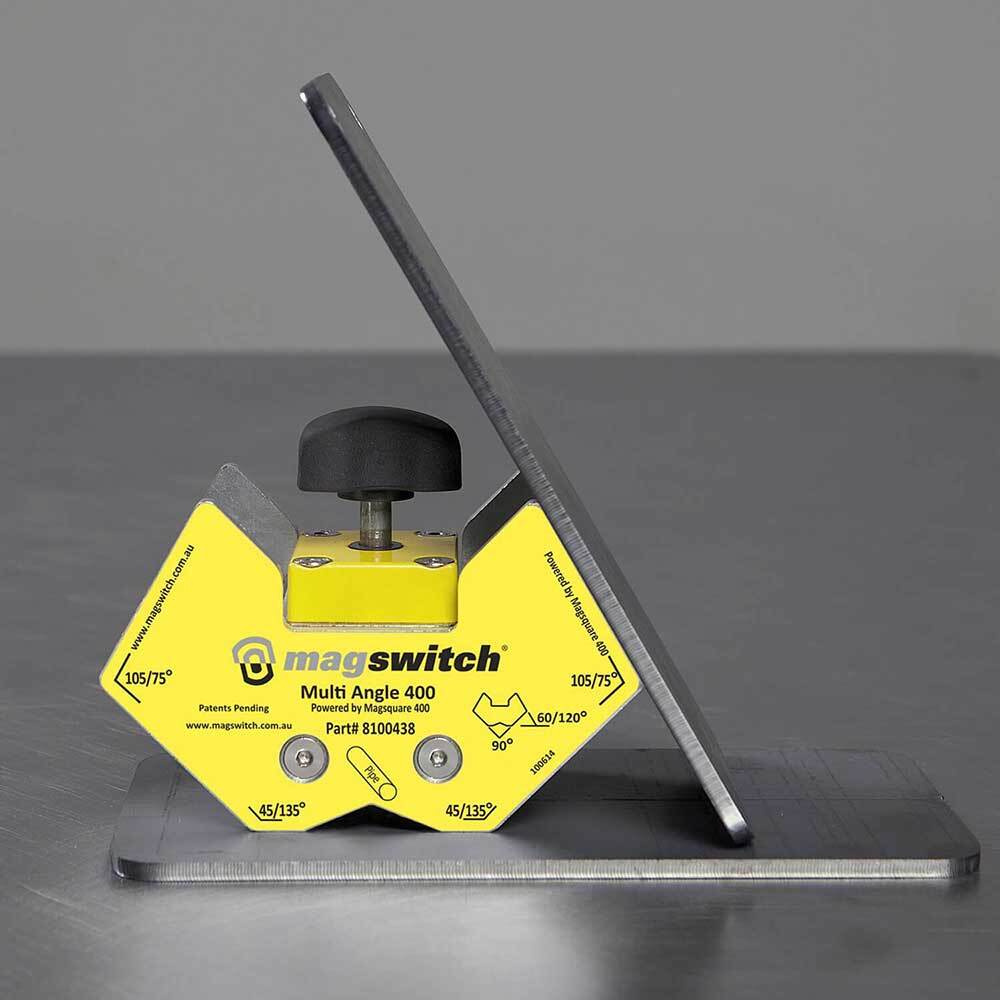

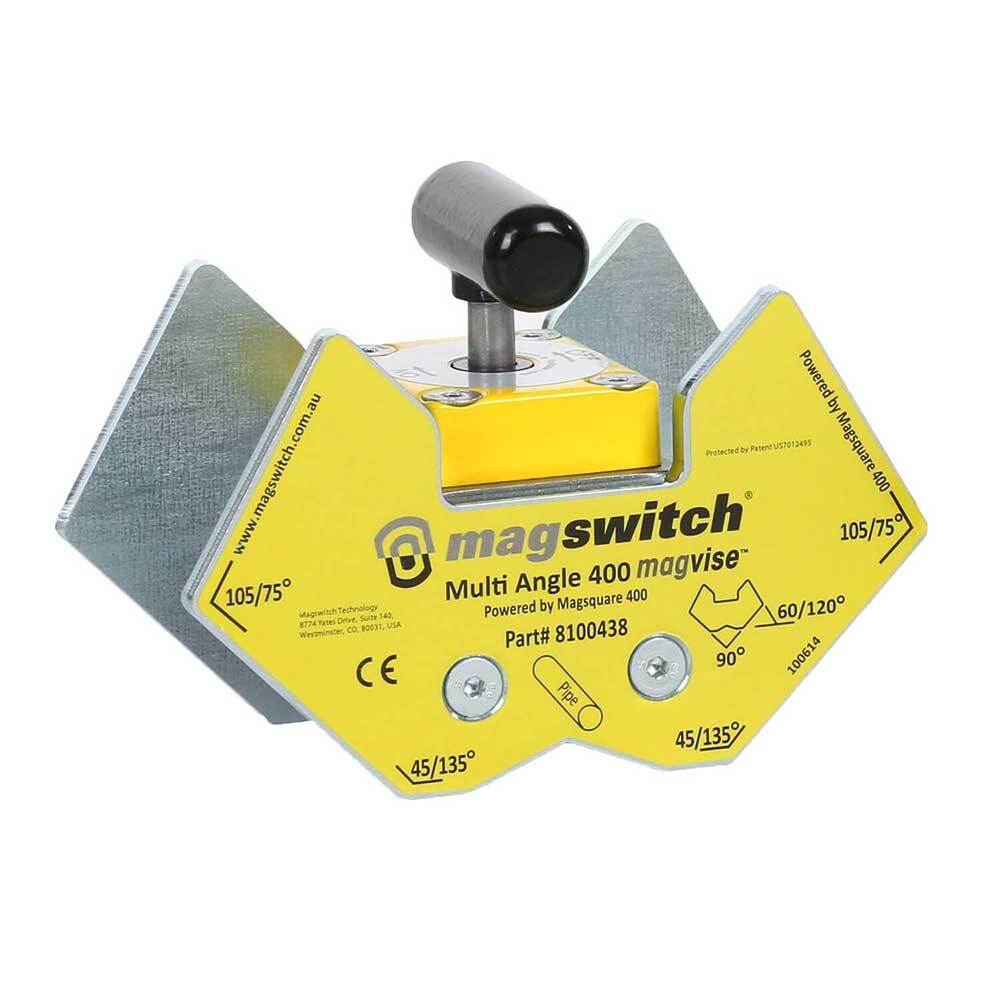

The Magswitch Mini Multi Angle 400 Magvise is a magnetic vise and multi-angle work holder. It does not need to be bolted down, sets up in seconds and holds flat, round or irregular workpieces for drilling, cutting, grinding and bevelling small to medium parts. It also holds work at 45/135, 60/120, 75/105 and 90 degree angles.
It has a maximum breakaway of 400lb (181kg), measured on 50.8mm thick steel. Breakaway force is the force needed to pull the magnet straight off clean, flat, thick steel. It is a lab figure on ideal steel and is not a safe working load. It reaches full force at 0.1345" (3.43mm) steel and weighs 2.6lb (1.2kg). Testing the magnet in your own application before use.
Where this product is used

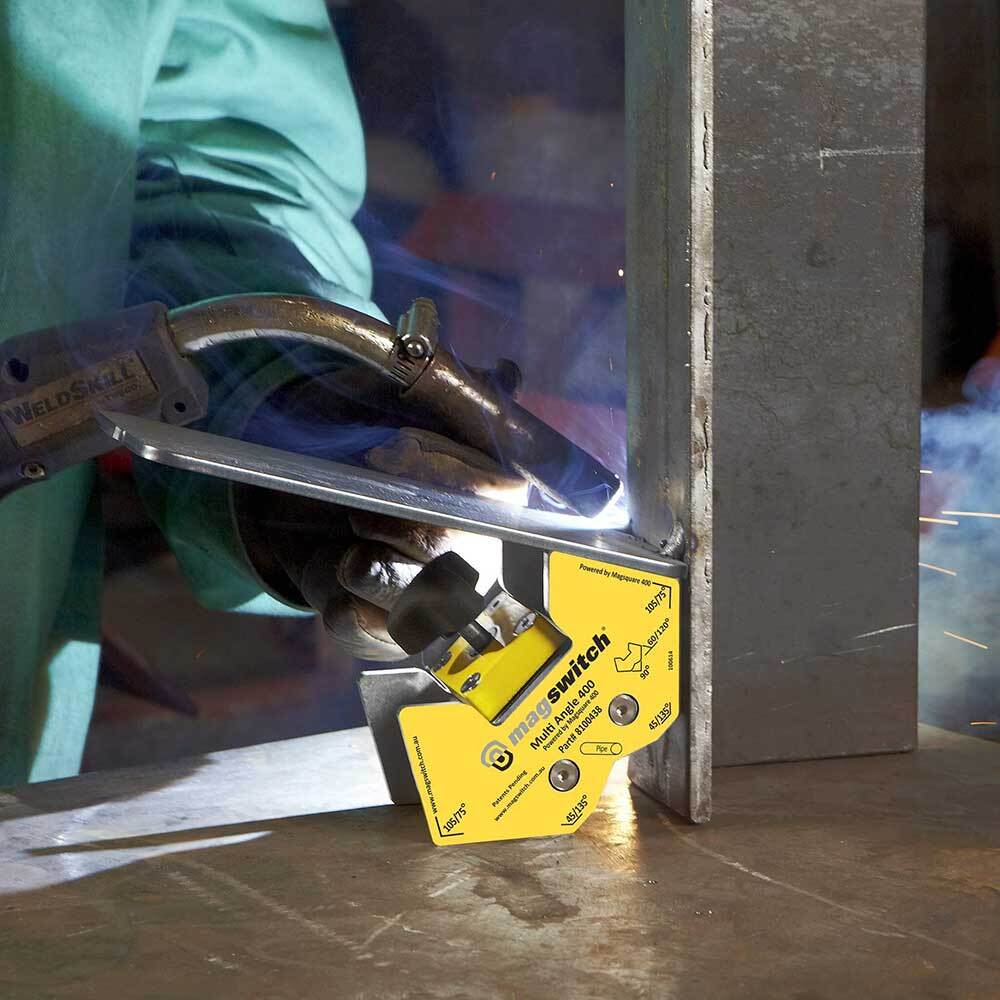

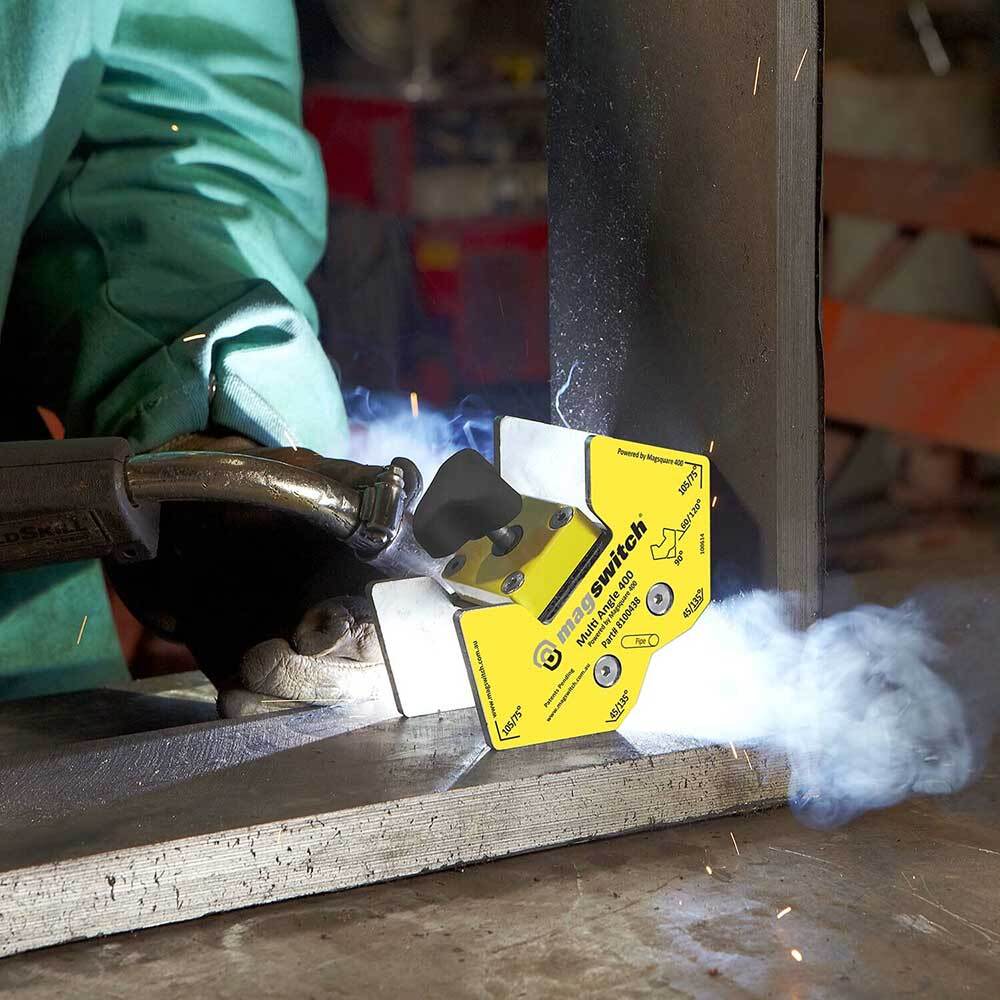

- Holding small to medium parts for drilling and cutting

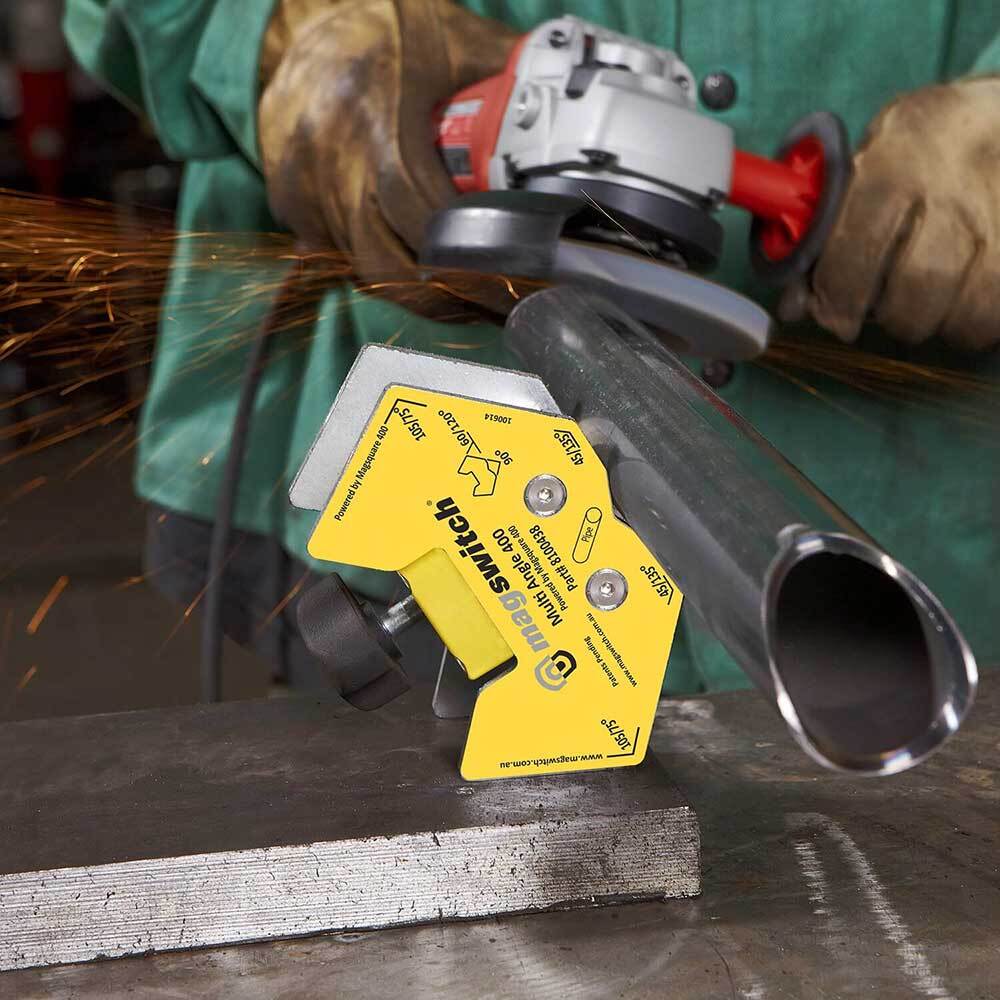

- Holding parts for grinding and bevelling
- Holding flat, round or irregular workpieces without bolting a vise down
Features
- Magnetic vise that does not need to be bolted down
- Sets up in seconds
- Holds flat, round or irregular workpieces
- Four angle settings, 45/135, 60/120, 75/105 and 90 degrees
- Mechanical on and off with no electrical power, and the magnet face stays clean
- Maximum breakaway of 400lb (181kg) on thick, clean, flat steel, a lab figure and not a safe working load
- Warning: Do not operate unless in contact with a ferrous target (iron or steel)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Magswitch |
| Model | Mini Multi Angle 400 Magvise |
| Part number | 8100438 |
| Angles | 45/135, 60/120, 75/105 and 90 degrees |
| Maximum breakaway (lab figure) | 400lb (181kg) |
| Shear working load (sideways load) | 20lb (9kg) at 2:1 |
| Full saturation thickness | 0.1345" (3.43mm) |
| Net weight | 2.6lb (1.2kg) |
| Overall height | 95mm |
| Magnetic pole footprint | 64mm x 41.26mm |
| Breakaway test basis | Lab test on 50.8mm thick SAE1018 steel, surface roughness 63 micro inches |
| Warning | Do not operate unless in contact with a ferrous target (iron or steel) |
