Description
Description

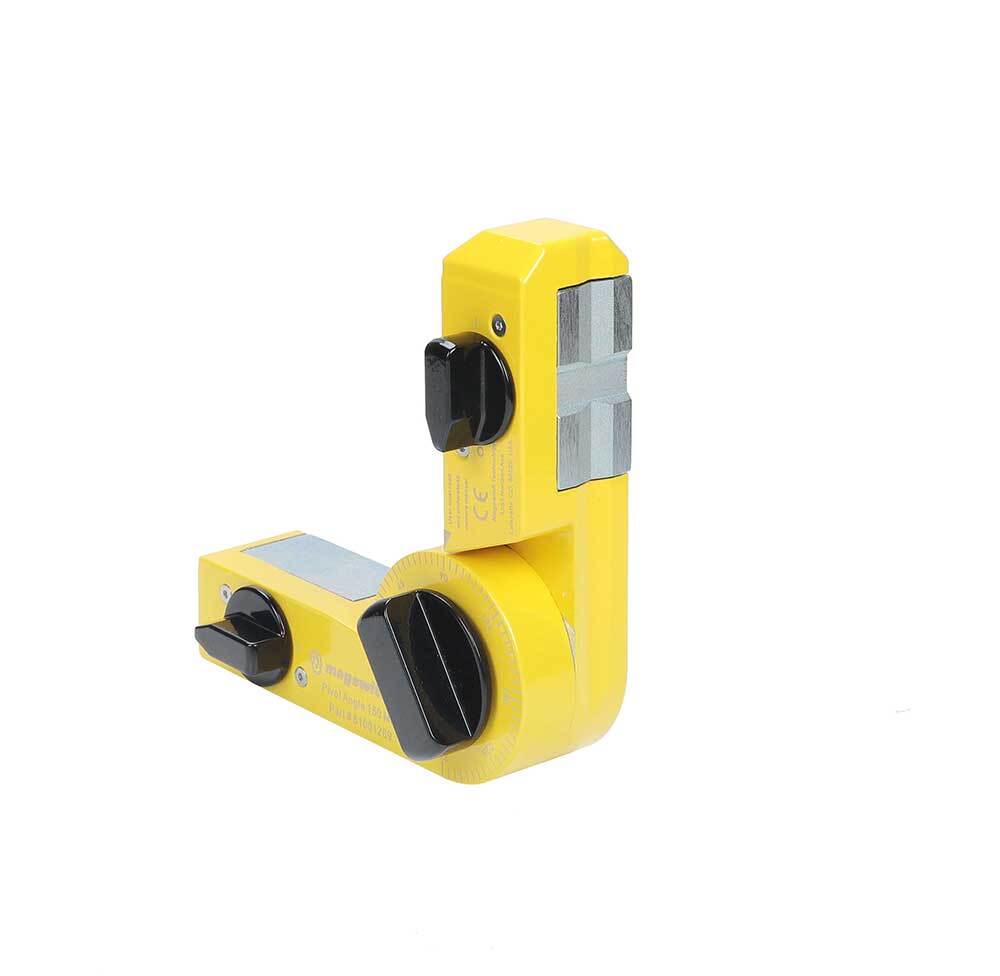

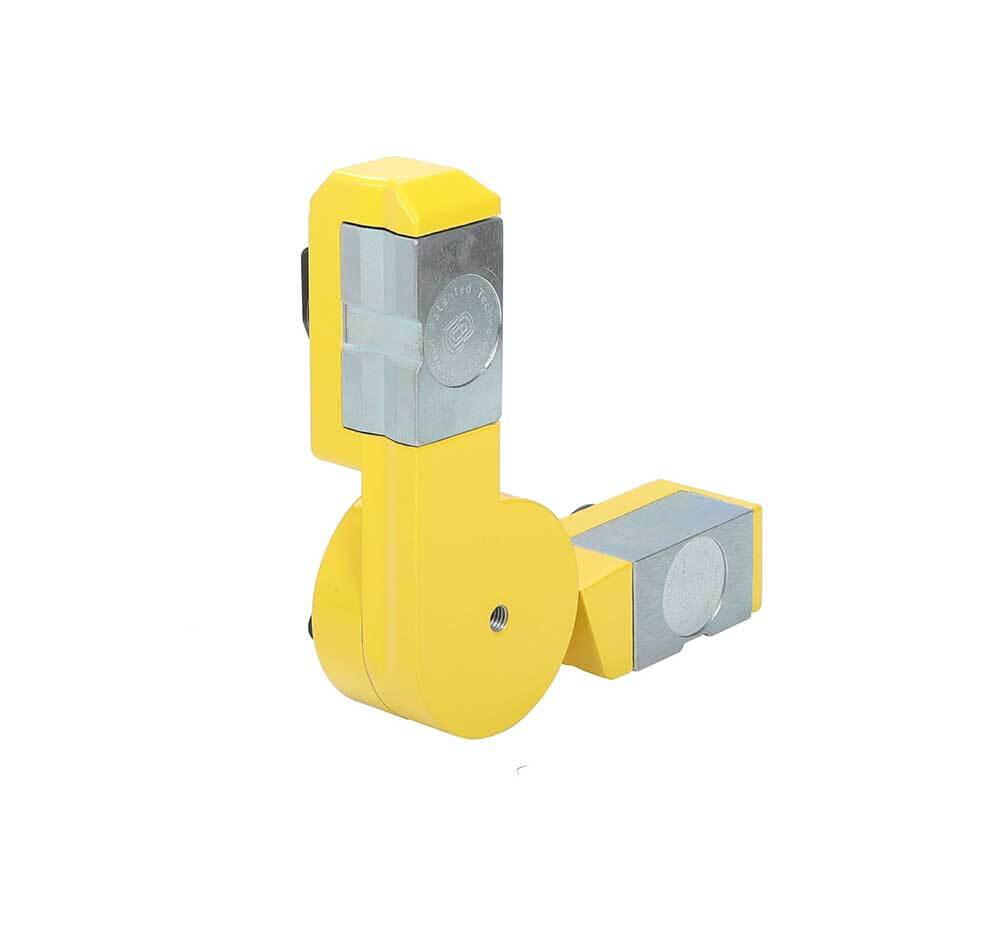

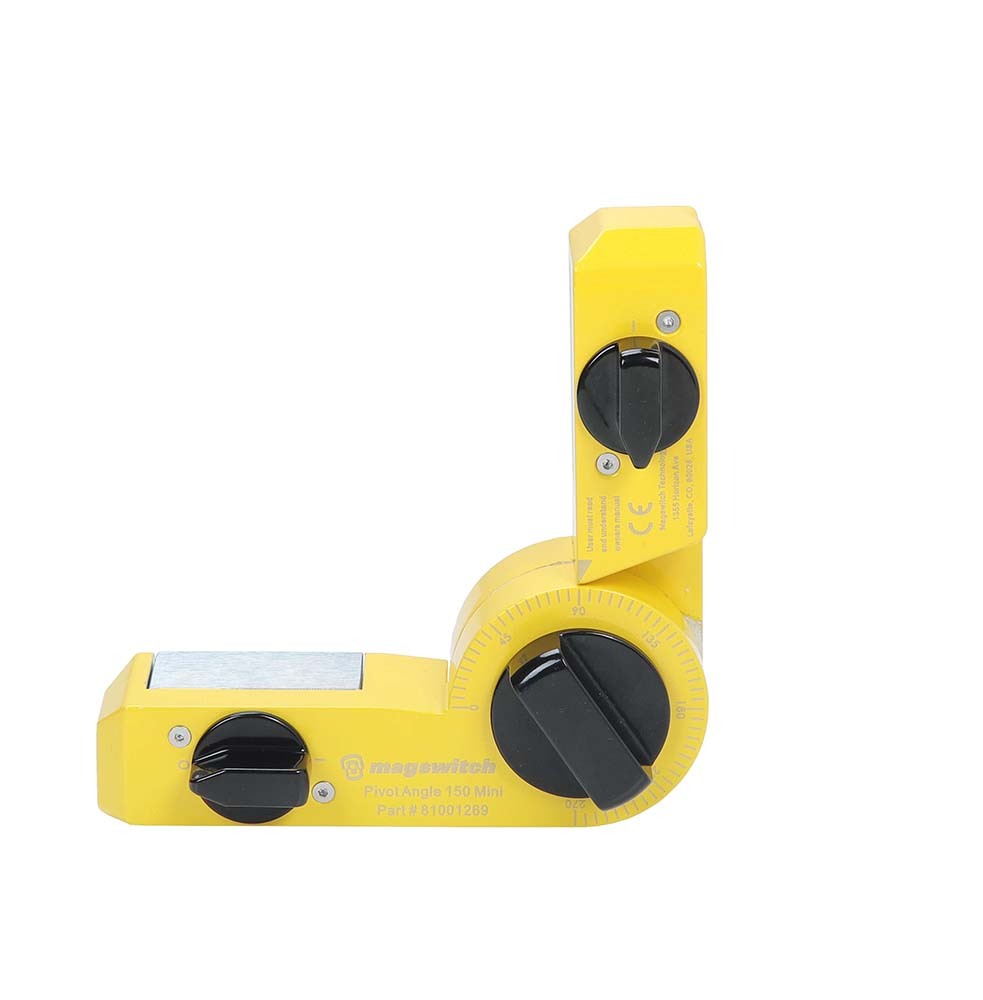

Magswitch Pivot Angle 150 Mini - 81001269
- The Magswitch Pivot Angle offers a range of angles from 0 to 270 degrees.
- Each axis features a Magswitch with a 182lbs (82.6kg) hold capability.
- A single pivot point is located on the elbow.
- The elbow joint locks and unlocks quickly with a thumb screw.
- The dial on the elbow features indicators every 9 degrees.

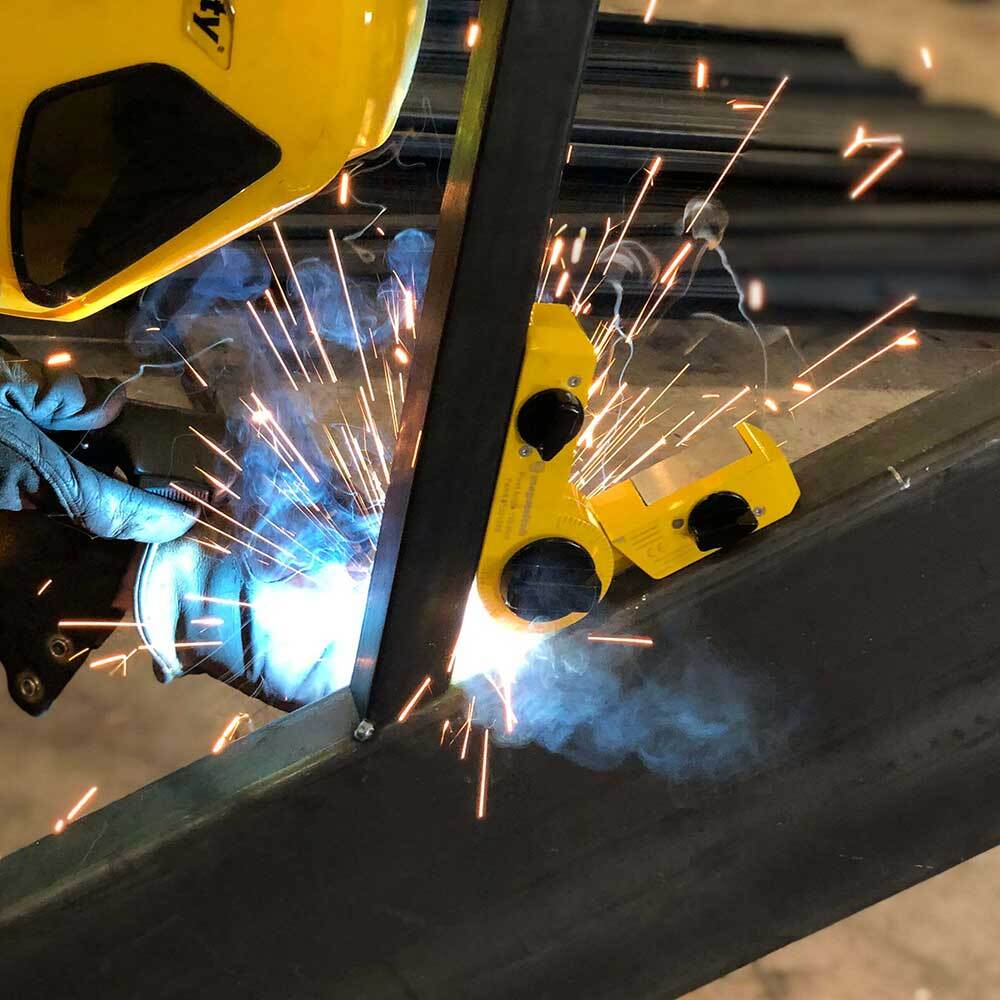

- On each axis a Magswitch magnetic tool is exposed on a side to enable the tool to secure to a table or wall, while simultaneously holding the work piece.
- Perfect for repetitive work on uncommon angles.
Specifications
- Nominal Maximum Breakaway Force: 182 lbs / 83kg
- Nominal Maximum Shear: 25.3 lbs / 11kg
- Full Saturation Thickness: 3/16 in / 4.8mm
- Overall Height (Max): 2.1in / 53.4mm
- Overall Length: 6.1in / 155.5mm
- Overall Width: 2.6in / 66.0mm
- Net Weight: 3 lbs / 1kg
- Magnetic Pole Footprint: 1.0 x 2.1in / 26.4 x 54mm
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Magswitch Pivot Angle 150 Mini 155.5 x 66 x 53.4mm - 81001269
Magswitch Pivot Angle 150 Mini 155.5 x 66 x 53.4mm - 81001269
SKU: A0160230
Type: Pivot Angle
- Wide Range
- Reliable Services
- Proven Trust
Available
The Magswitch Pivot Angle 150 Mini 155.5 x 66 x 53.4mm by Magswitch is a Pivot Angle. It offers a range of angles from 0 to 270 degrees and is suitable for repetitive work on uncommon angles.
