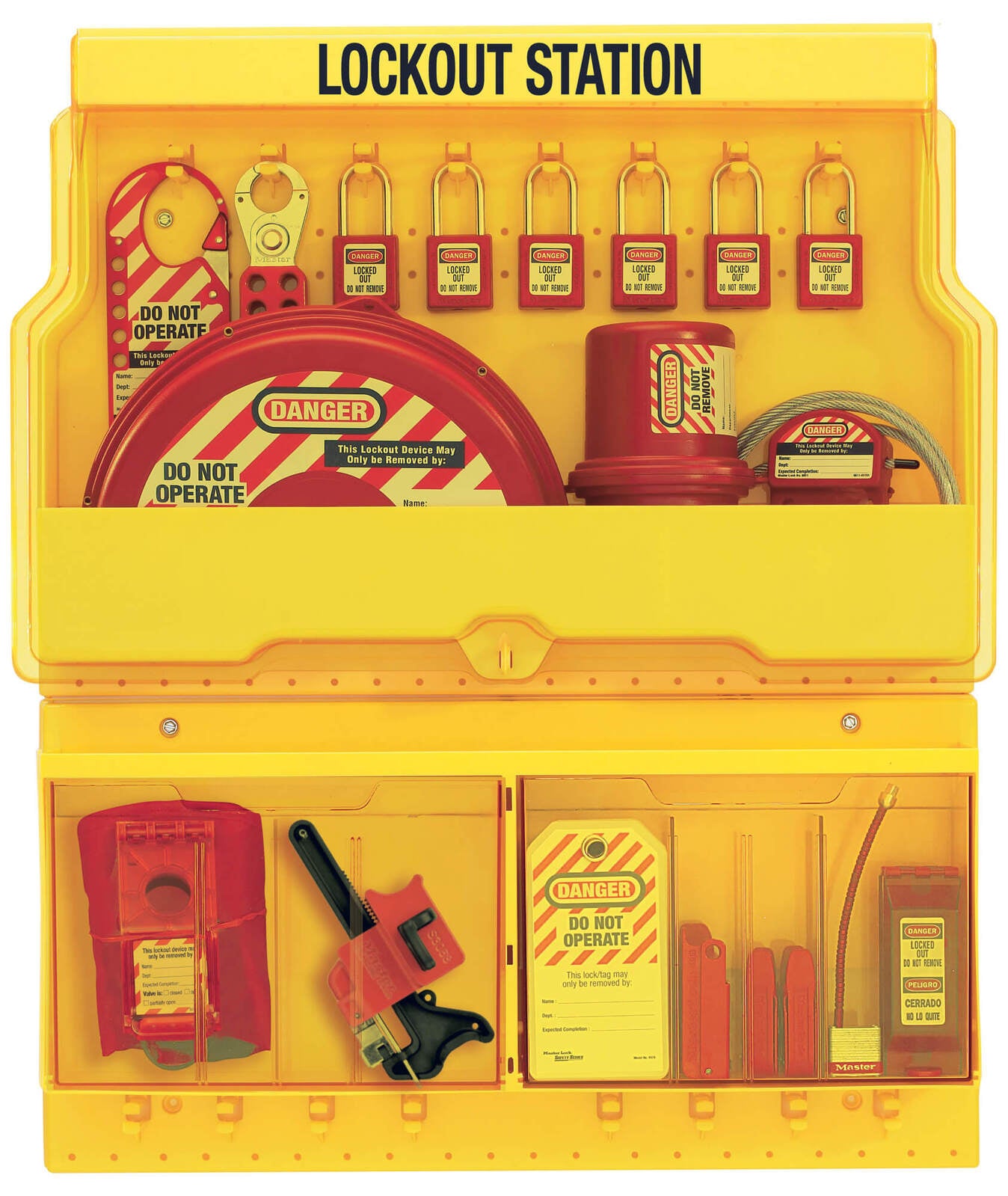

Master Lock 18-piece Lockout Station includes 6 Padlocks + more

Master Lock S1900VE410 is the Deluxe Lockout Station supplied filled, with a valve and electrical focus. It is the S1900 deluxe station with accessories, and the unfilled station is the S1900.

The deluxe station has covered compartments that keep dust and grime out, upper and lower sections that can be locked, 16 hanger clips that each hold 2 padlocks or lockout hasps, moveable dividers in the top and bottom trays, and holes along the bottom for optional peg hook hangers. 0410 padlocks, 0420 and 0427 hasps, an S806 cable lockout, a 0488 plug lockout, 0480 to 0483 gate valve lockouts, 0468L and S3068 ball valve lockouts, 0493B and 0491B circuit breaker lockouts, 0496B wall switch lockouts and 0497A Do Not Operate tags; quantities are in the list below. The 0410 padlock is the Master Lock keyed different Zenex thermoplastic safety padlock with a 38mm shackle opening and 6mm shackle diameter.

Where this product is used

• Keeping lockout padlocks, hasps, devices and tags together
• Having lockout devices available when needed for a lockout

Features

• Covered compartments that keep dust and grime out
• Upper and lower sections can be locked, and a combination lock can be added for access control
• 16 hanger clips, each holding 2 padlocks or lockout hasps
• Moveable dividers in the top and bottom trays
• Holes along the bottom for optional peg hook hangers for large, bulky devices

Key specifications

Supplied with

• 6 x 0410, Zenex thermoplastic safety padlock, keyed different (38mm shackle opening, 6mm shackle diameter)
• 2 x 0420, Steel hasp, 25mm inside jaw, 6 padlock capacity
• 1 x 0427, Aluminium snap-on hasp, red, 5 padlock capacity
• 1 x S806, Adjustable cable lockout, 1.8m x 4mm
• 1 x 0488, Plug lockout, large (240 and 250 volt plugs)
• 1 x 0480, Gate valve lockout, fits 25mm-76mm diameter valve handles
• 1 x 0481, Gate valve lockout, fits 50mm-127mm diameter valve handles
• 1 x 0482, Gate valve lockout, fits 101mm-165mm diameter valve handles
• 1 x 0483, Gate valve lockout, fits 152mm-254mm diameter valve handles
• 1 x 0468L, Seal Tight handle-off ball valve lockout
• 1 x S3068, Seal Tight handle-on ball valve lockout
• 6 x 0493B, Grip Tight circuit breaker lockout, standard single and double toggles
• 2 x 0491B, Grip Tight circuit breaker lockout, tall and wide toggles
• 2 x 0496B, Universal wall switch lockout
• 2 x 0497A, Do Not Operate Danger tags, 12 per pack

Choosing the right option

S1900VE410 is the filled deluxe station. For the empty station, to fill with your own devices, see the S1900 unfilled deluxe station. For smaller filled stations see the S1850V410 valve station and the S1850E410 electrical station.

Related lockout stations: S1900 deluxe station (unfilled), S1850V410 valve lockout station, S1850E410 electrical lockout station.
