Master Lock excell brass covered laminated steel padlocks
Available

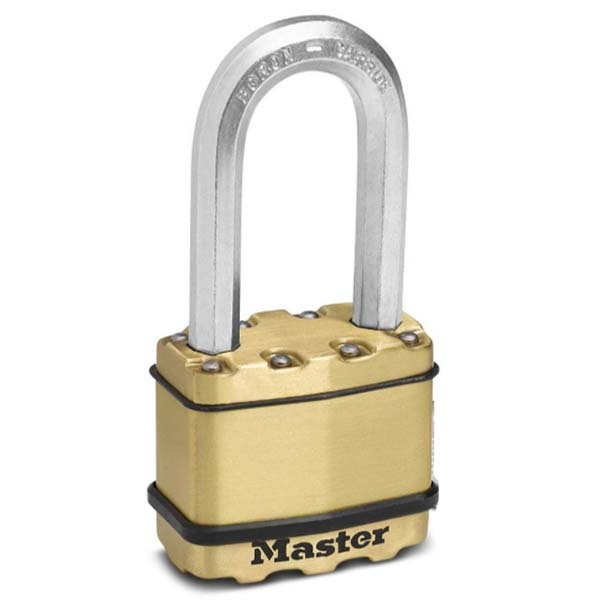

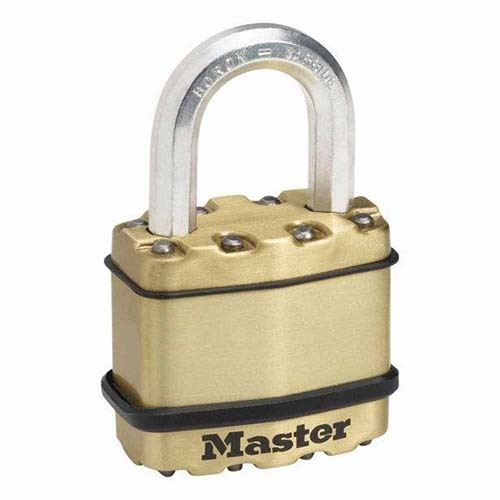

Master Lock Excell brass covered laminated steel padlocks come with 45mm, 50mm and 64mm bodies, in single, 2 pack KA and 4 pack KA versions and with standard or long shackles (11 part numbers, M1BDAU to M15BDLHAU). KA means keyed alike, so every padlock in a pack opens with the same key.
They are Excell padlocks with a brass covered laminated steel body and a boron carbide shackle. The body is brass covered laminated steel for strength and resistance to the elements, the octagonal boron carbide shackle as 50% harder than hardened steel and harder for bolt cutters to grip, the shackle clearance as increased, the ball bearing locking mechanism as providing pull and pry resistance, and 4 keys are included.
Where this product is used
- Securing gates, sheds, lockers, toolboxes and equipment
- Keyed padlock security for workplaces, sites and general use
Features
- Brass covered laminated steel body
- Octagonal boron carbide shackle, stated to be 50% harder than hardened steel
- Ball bearing locking mechanism
- Increased shackle clearance
Key specifications
| Specification | Detail |
|---|---|
| Brand | Master Lock |
| Product | Excell brass covered laminated steel padlock |
| Body widths | 45mm, 50mm and 64mm |
| Shackle | Boron carbide |
| Packs | Single, 2 pack KA and 4 pack KA (4 pack on 45mm and 50mm only) |
| Body width | 45mm, 50mm, 64mm |
| Pack | Single padlock, 2 pack, keyed alike, 4 pack, keyed alike, Single padlock, long shackle |

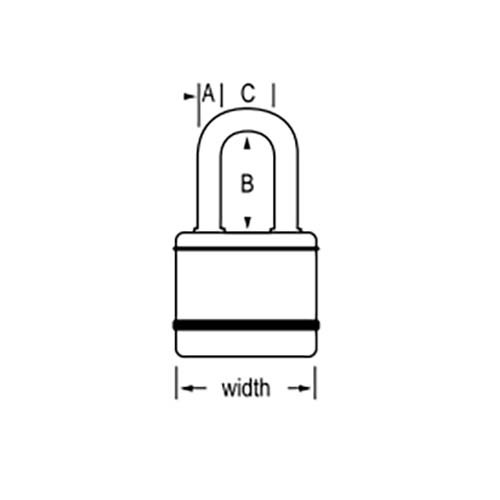

| Shackle diameter x height x width | 8mm x 24mm x 20mm, 8mm x 51mm x 20mm, 9mm x 25mm x 24mm, 9mm x 51mm x 24mm, 11mm x 27mm x 36mm, 11mm x 51mm x 36mm |
Choosing the right option
Choose the body width first (45mm, 50mm or 64mm), then the pack (single, 2 pack KA or 4 pack KA) and the shackle: the codes ending LHAU have the long 51mm opening height and are single padlocks.
Also from Master Lock: Weather Tough covered laminated steel padlocks, 45mm Magnum padlocks, M40DAU stainless steel disc padlock.
| Option | Part number | SKU |
|---|---|---|
| 8 x 24 x 20mm / 1 | M1BDAU | A0164549 |
| 8 x 51 x 20mm / 1 | M1BDLHAU | A0164550 |
| 9 x 25 x 24mm / 1 | M5BDAU | A0164553 |
| 9 x 51 x 24mm / 1 | M5BDLHAU | A0164554 |
| 11 x 27 x 36mm / 1 | M15BDAU | A0164556 |
| 11 x 51 x 36mm / 1 | M15BDLHAU | A0164557 |
| 8 x 24 x 20mm / 2 | M1BTAU | A0164548 |
| 9 x 25 x 24mm / 2 | M5BTAU | A0164551 |
| 11 x 27 x 36mm / 2 | M15BTAU | A0164555 |
| 8 x 24 x 20mm / 4 | M1BQAU | A0164547 |
| 9 x 25 x 24mm / 4 | M5BQAU | A0164552 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Master Lock Excell Padlock Brass Covered Laminated Steel: 8 x 24 x 20 mm / 1
SKU: A0164549 | Model: M1BDAU
Master Lock M1BDAU: 45mm Excell brass covered laminated steel padlock, single, boron carbide shackle 8mm x 24mm.
