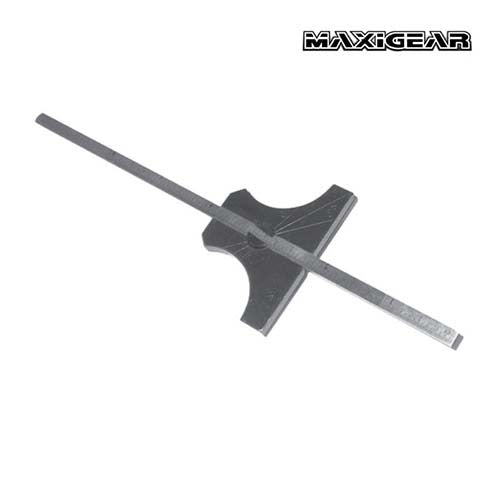

Maxigear DG150 150mm Angular Depth Gauge
Available
Maxigear angular depth gauges are available in two sizes: DG150 (150mm) and DG200 (200mm).
The gauge can be used as a protractor for measuring angles of 15°, 30° and 45°, graduated left and right, and the rule is graduated in metric on one side and inches on the other.
Where this product is used
- Measuring angles of 15°, 30° and 45° as a protractor
Features
- 15°, 30° and 45° angles, graduated left and right
- Rule graduated in metric on one side, inches on the other
- Two sizes: DG150 at 150mm (6") and DG200 at 200mm (8")
- Type: Angular depth gauge
Key specifications
| Specification | Detail |
|---|---|
| Brand | Maxigear |
| Type | Angular depth gauge |
| Part numbers | DG150 and DG200 |
| Sizes | 150mm (6") and 200mm (8") |
| Angles | 15°, 30° and 45°, graduated left and right |
| Rule | Metric on one side, inches on the other |
Choosing the right option
Choose the size that suits the depth you measure: DG150 is the 150mm gauge and DG200 the 200mm gauge. Both carry 15°, 30° and 45° angles. For a protractor with a separate depth rule see the depth gauge protractor.
Angle tools: Round head depth gauge protractor, Degree protractor, Sliding bevel.
| Option | Part number | SKU |
|---|---|---|
| 150 | DG150 | A0144730 |
| 200 | DG200 | A0144731 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Maxigear Angular Depth Gauge: 150
SKU: A0144730 | Model: DG150
Maxigear DG150: angular depth gauge, 150mm (6"), 15°, 30° and 45°, graduated left and right.
