Maxigear Clamp Type Parting Tool Holder, COTB1/2-COTB3/4, 1
Available
Maxigear clamp type blade parting tool holders are available in three part numbers: COTB1/2 (1/2" shank, 3/4" blade), COTB5/8 (5/8" shank, 1" blade) and COTB3/4 (3/4" shank, 1" blade).
These tool blocks are of rigid construction with a hardened and tempered body, usable on front or rear tool posts. Blades are sold separately.
Where this product is used
- Mounting on front or rear tool posts
Features
- Rigid construction tool block
- Hardened and tempered body
- Blades sold separately
- Shank size, body size and blade size for each part number
Key specifications
| Specification | Detail |
|---|---|
| Brand | Maxigear |
| Type | Clamp type blade parting tool holder |
| Part numbers | COTB1/2, COTB5/8 and COTB3/4 |
| Shank sizes | 1/2", 5/8" and 3/4" |
| Blade sizes | 3/4" and 1" |
| Supplied with | Blades sold separately |
Choosing the right option
Choose by the blade and the tool post: COTB1/2 takes 3/4" blades on a 1/2" shank, while COTB5/8 and COTB3/4 take 1" blades on 5/8" and 3/4" shanks. The body size is 90 x 38 x 32mm for COTB5/8 and 90 x 38 x 36mm for COTB3/4. For straight holders with a shank size from 8 x 14 x 90mm to 19 x 41 x 203mm see the straight parting tool holder.
Straight holders: straight parting tool holder.
Blades: HSS M2 parting tool blade, HSS cobalt parting tool blade.
| Option | Part number | SKU |
|---|---|---|
| 1 | COTB3/4 | A0109043 |
| 1-COTB5/8 | COTB5/8 | A0109044 |
| 3/4 | COTB1/2 | A0109042 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

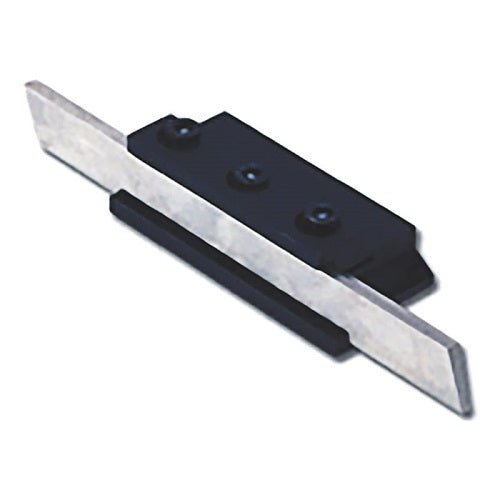

Maxigear Blade Parting Tool Holders Clamp Type: 1
SKU: A0109043 | Model: COTB3/4
Maxigear COTB3/4: clamp type blade parting tool holder, 3/4" shank, 90 x 38 x 36mm body, takes 1" blades.
