Dasqua BG10-18 Dial Bore Gauge, 10-18mm Range, 0.01mm Reading

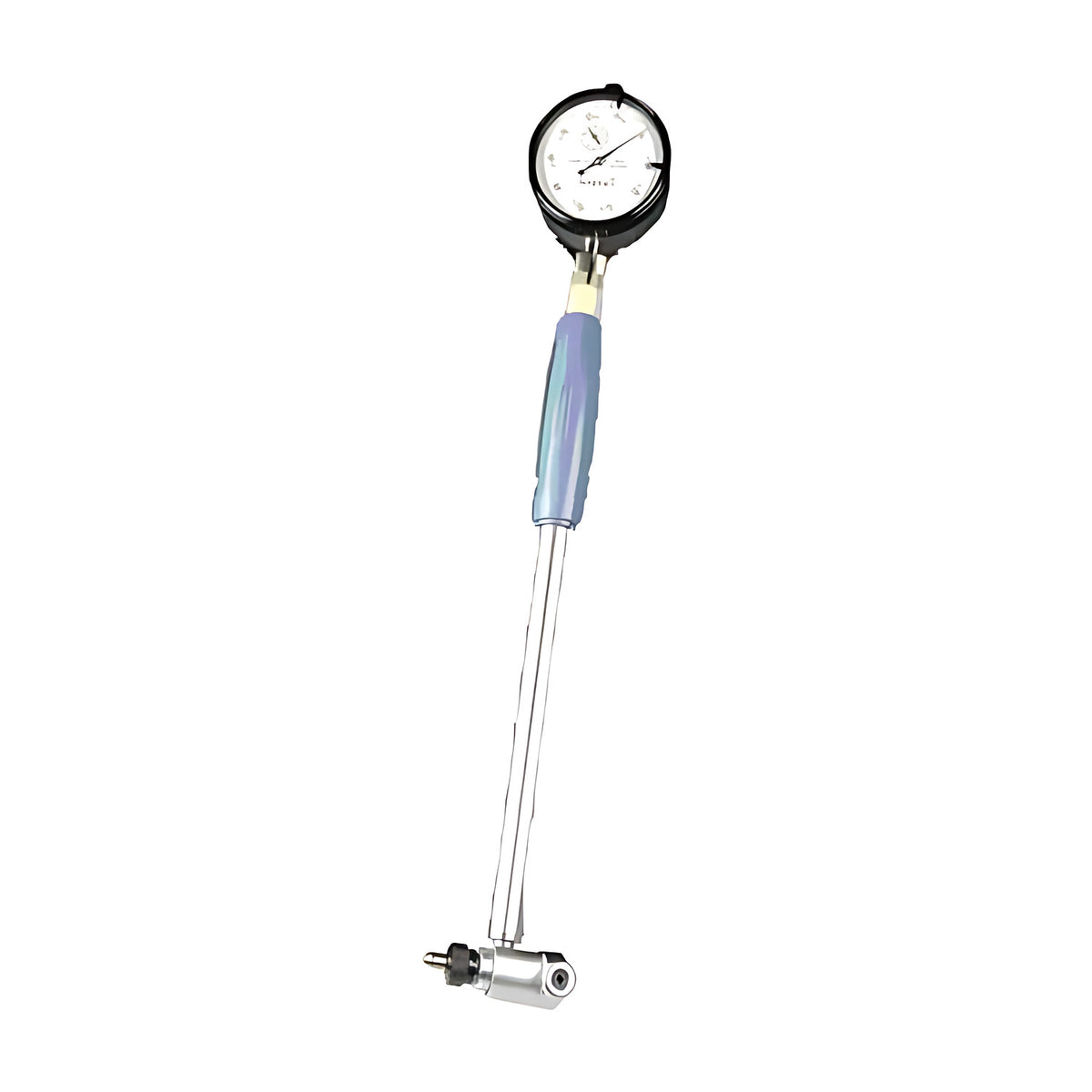

Dasqua dial bore gauges measure the diameter of a bore on a dial. The ranges are 6-10mm (BG06-10), 10-18mm (BG10-18), 18-35mm (BG18-35), 35-50mm (BG35-50), 50-160mm (BG50-160) and 250-450mm (BG250-450), and each reads to 0.01mm (manufacturer-stated).

Dasqua describes the dial bore gauge as a tool for measuring close tolerance of holes, taper and roundness, with a steel body, interchangeable carbide anvils, extension rods and washers, and a dial indicator protected by a rugged cover (manufacturer-stated).

Where this product is used

• Inside measurement of cylindrical objects such as pipes and cylinders (manufacturer-stated)
• Measuring close tolerance of holes, taper and roundness (manufacturer-stated)

Features

• Steel body with interchangeable carbide anvils (manufacturer-stated)
• Extension rods and washers for fine adjustment, to select a specific range (manufacturer-stated)
• Dial indicator protected by a rugged cover (manufacturer-stated)
• Direct reading when measuring, with no second measurement needed (manufacturer-stated)
• Reading of 0.01mm (manufacturer-stated)

Common specifications

Key specifications

Range and reading for each part number.

Selecting the right option

Choose the range that covers the bore you need to measure: 6-10, 10-18, 18-35, 35-50, 50-160 or 250-450mm. Each range has its own part number, and every range reads to 0.01mm (manufacturer-stated).
