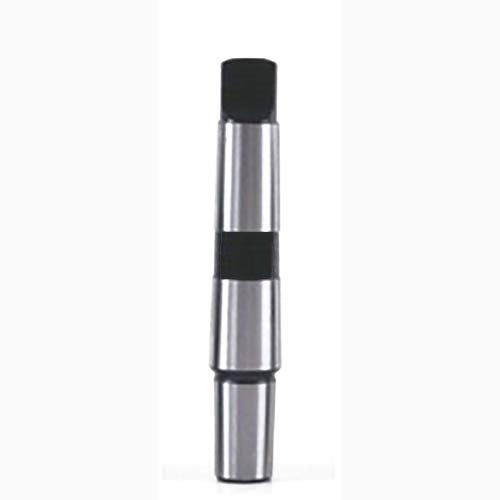

Maxigear Drill Chuck Arbor, Morse Taper to Jacobs Taper

Maxigear Morse taper to Jacobs taper drill chuck arbors are available in Morse taper sizes from 0 to 6 and Jacobs tapers from 0 to 6, plus 33.

These arbors, except CA2MT4JTHA and CA3MT33JTA, are in the Drill Chuck Arbors Economy Range, manufactured in India. Each part number gives its own Morse taper size and Jacobs taper, for example CA4MT5JTA is Morse taper 4 to Jacobs taper 5.

Where this product is used

• Adapting between a Morse taper and a Jacobs taper, in the combinations in the table

Features

• Part of the Drill Chuck Arbors Economy Range (except CA2MT4JTHA and CA3MT33JTA)
• Manufactured in India (except CA2MT4JTHA and CA3MT33JTA)
• Morse taper sizes from 0 to 6
• Jacobs tapers 0, 1, 2, 3, 4, 5, 6 and 33

Key specifications

Choosing the right option

Pick the part number by the two tapers, the Morse taper size and the Jacobs taper. For example CA2MT3JTA is Morse taper 2 to Jacobs taper 3. The part numbers pair them as follows. Morse taper 0: Jacobs taper 0; Morse taper 1: Jacobs taper 0, 1, 2, 3, 6 and 33; Morse taper 2: Jacobs taper 0, 1, 2, 3, 4, 5, 6 and 33; Morse taper 3: Jacobs taper 1, 2, 3, 4, 5, 6 and 33; Morse taper 4: Jacobs taper 2, 3, 4, 5, 6 and 33; Morse taper 5: Jacobs taper 3, 4, 5 and 6; Morse taper 6: Jacobs taper 3 and 6.

Other Maxigear Morse taper drill chuck arbors: Morse taper to DIN taper arbor, Morse taper to threaded shank arbor.

Jacobs taper arbors with a thread: #2 MT - #3 JT, 10 x 1.5 thread, #2 MT - #6 JT, 10 x 1.5 thread, #3 MT - #4 JT, M12 x 1.75 thread, #4 MT - #3 JT, M16 x 2 thread.
