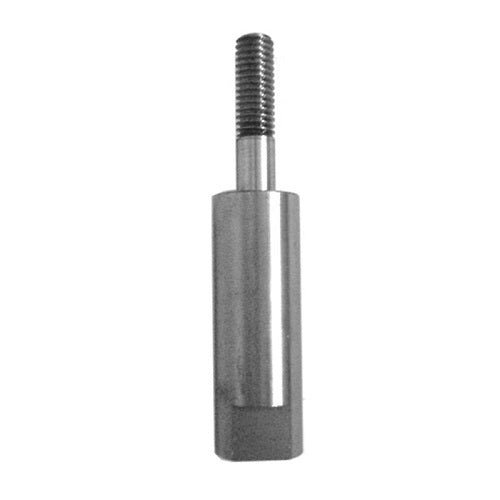

Maxigear ES1/2WLH 1/2 BSW Left Hand Extension Spindle for Bench Grinder
Available
Maxigear extension spindles for bench grinders in 4 part numbers: 1/2 BSW and 5/8 BSW, each in left hand and right hand.
Maxigear lists all four at an overall length of approx. 135mm (manufacturer-stated).
Where this product is used
- Use on a bench grinder, as an extension spindle
Features
- 1/2 BSW or 5/8 BSW thread (manufacturer-stated)
- Left hand and right hand part numbers (manufacturer-stated)
- Overall length of approx. 135mm (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Type | Extension spindle for bench grinder |
| Threads | 1/2 BSW and 5/8 BSW (manufacturer-stated) |
| Hand | Left hand and right hand (manufacturer-stated) |
| Overall length | approx. 135mm (manufacturer-stated) |
| Part numbers | ES1/2WLH, ES1/2WRH, ES5/8WLH and ES5/8WRH |
Key specifications
| Part number | Thread | Hand | Length (manufacturer-stated) |
|---|---|---|---|
| ES1/2WLH | 1/2 BSW | Left hand | approx. 135mm |
| ES1/2WRH | 1/2 BSW | Right hand | approx. 135mm |
| ES5/8WLH | 5/8 BSW | Left hand | approx. 135mm |
| ES5/8WRH | 5/8 BSW | Right hand | approx. 135mm |
Lengths are approximate and subject to change as per manufacturer's specifications (manufacturer-stated).
Selecting the right option
Choose by thread and hand. 1/2 BSW: ES1/2WLH (left hand) and ES1/2WRH (right hand). 5/8 BSW: ES5/8WLH and ES5/8WRH. For other threads see the M16 extension spindle and the 5/8 UNF extension spindle.
Related products
Other spindles: M16 extension spindle, 5/8 UNF extension spindle, Extension spindle for angle grinder, Tapered spindle for bench grinder, Tapered spindle for straight grinder and Round shank tapered spindle.
