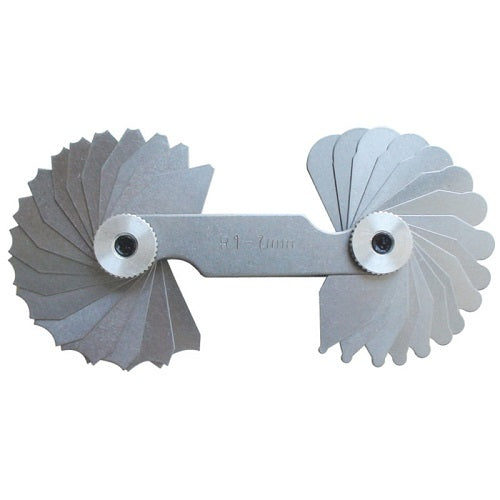

Maxigear 1 - 7mm Radius Gauge, 34 Leaves

The Maxigear Radius Gauge- Metric is part of the Maxigear range — precision engineering tools and machining accessories designed for toolmakers, machinists, and precision engineers across Australian industry. Maxigear products are selected by engineering workshops, tool rooms, CNC shops, trade schools, and industrial maintenance teams for reliable performance in demanding machining and measurement applications.

Where this product is used

Maxigear radius gauges give machinists and toolmakers a quick, reliable check of concave and convex radii on machined and formed components against drawing specifications.

• Checking concave and convex radii on machined components against print specifications
• Toolroom inspection of radii on turned and milled parts before sign-off
• Setting and verifying corner radii on jig and fixture components

Key specifications

Selecting the right option

Select the metric or imperial set based on the drawing standards you work to. The typical set covers concave and convex blades across the common radius range — confirm the set includes the radii specified on your most common components before ordering.
