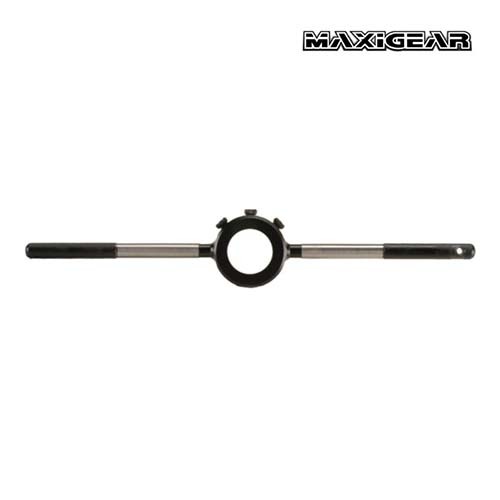

Maxigear Round Die Stock Handle DH1 to DH3, 1" to 3" Die
Available
Maxigear round die stock handles are available in seven part numbers, for dies from 1" OD (DH1, 220mm long) to 3" OD (DH3, 560mm long).
The handles are for holding adjustable round split dies, with a three set screw pattern and single piece construction. Each part number has its own die OD and length.
Where this product is used
- Holding adjustable round split dies
Features
- For holding adjustable round split dies
- Three set screw pattern
- Single piece construction
- Die OD from 1" to 3", length from 220mm to 560mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Maxigear |
| Part numbers | DH1 to DH3 (7 part numbers) |
| Die OD | 1", 1-5/16", 1-1/2", 2", 2-1/4", 2-1/2" and 3" |
| Length | 220mm to 560mm |
| Set screws | Three set screw pattern |
| Construction | Single piece |
Choosing the right option
Choose the handle by the outside diameter of the die: DH1 for 1", DH1-5/16 for 1-5/16", DH1-1/2 for 1-1/2", DH2 for 2", DH2-1/4 for 2-1/4", DH2-1/2 for 2-1/2" and DH3 for 3". Length rises with the die size, from 220mm to 560mm. For holding taps see the bar type tap wrench.
Tap wrenches: Bar type, T type solid jaw, T type ratcheting.
| Option | Part number | SKU |
|---|---|---|
| 220 | DH1 | A0144732 |
| 250 | DH1-5/16 | A0144735 |
| 300 | DH1-1/2 | A0144733 |
| 380 | DH2 | A0144737 |
| 420 | DH2-1/4 | A0144739 |
| 480 | DH2-1/2 | A0144738 |
| 560 | DH3 | A0144740 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Maxigear Round Die Stock Handle: 220
SKU: A0144732 | Model: DH1
Maxigear DH1: round die stock handle for 1" die OD, 220mm long, three set screw pattern.
