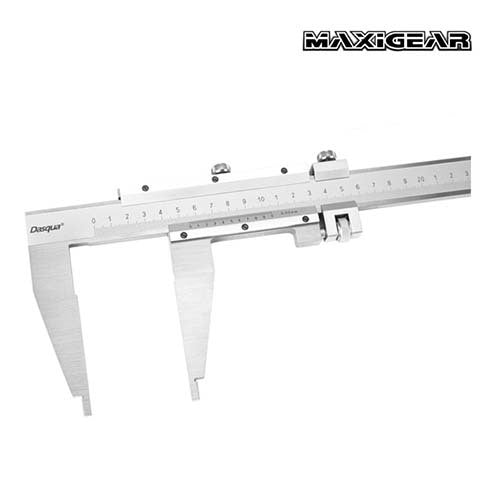

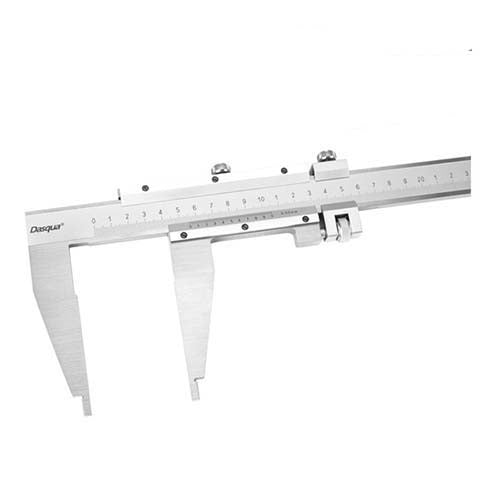

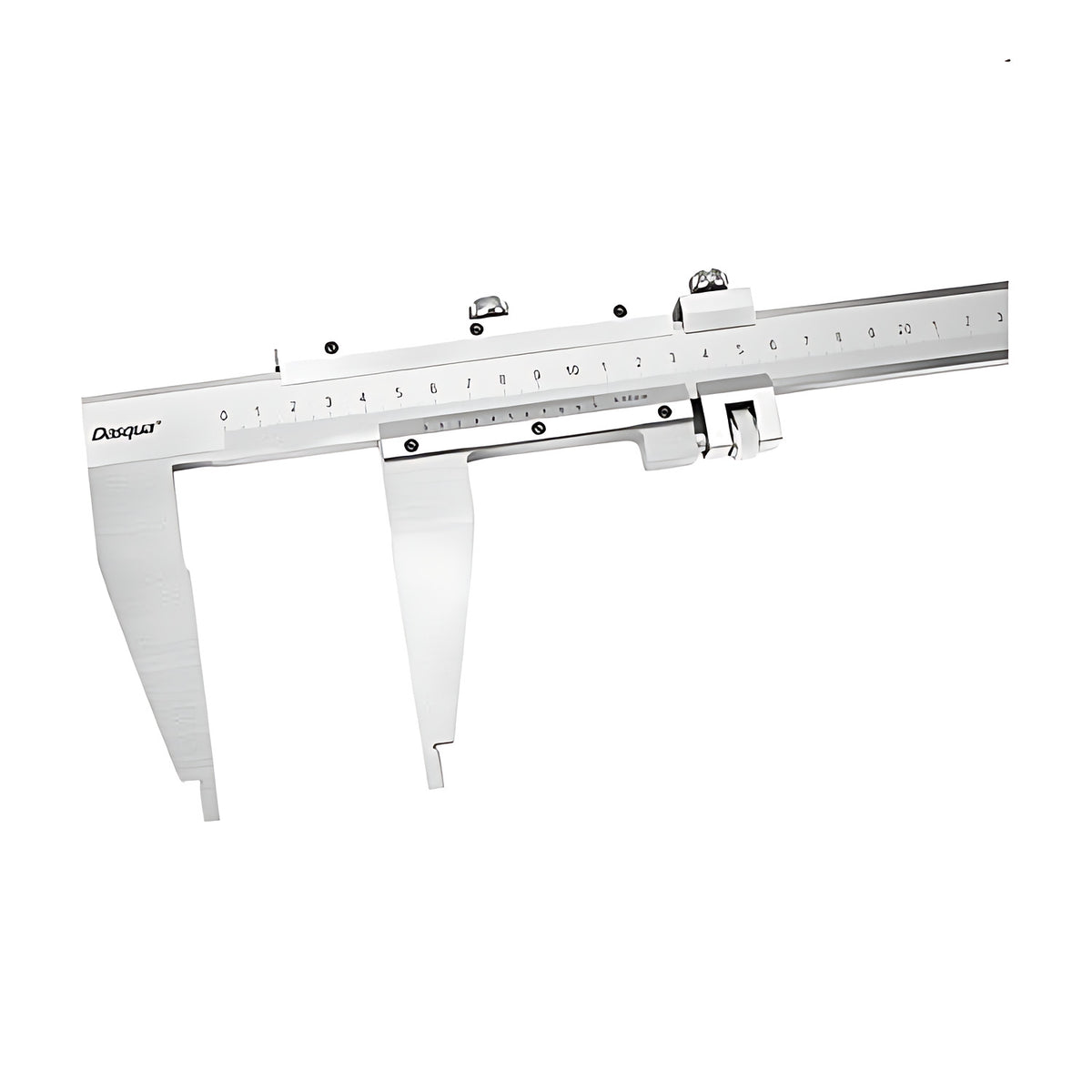

Dasqua CV500MEFALJ Vernier Caliper Fine Adjustment, 500mm
Available
Dasqua vernier calipers with fine adjustment, in ranges from 500mm to 2000mm, each reading 0.02mm / 0.001" (manufacturer-stated).
Jaw length is 90mm on the 600mm model, 125mm on the 1000mm and 1500mm models and 200mm on the 2000mm model (manufacturer-stated).
Dasqua states its vernier calipers are made of stainless steel in accordance with DIN862, with distinct lines and figures etched against a satin chrome finish (manufacturer-stated).
Where this product is used
- Measuring outside diameter, inside diameter, step and depth (manufacturer-stated)
Features
- Fine adjustment (manufacturer-stated)
- Stainless steel (manufacturer-stated)
- Made in accordance with DIN862 (manufacturer-stated)
- Distinct lines and figures etched against a satin chrome finish (manufacturer-stated)
- Jaws from 90mm on the 600mm model to 200mm on the 2000mm model (manufacturer-stated)
- Reading of 0.02mm / 0.001" on every range (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Type | Vernier caliper with fine adjustment |
| Ranges | 500mm, 600mm / 24", 1000mm / 40", 1500mm / 60" and 2000mm / 80" |
| Reading | 0.02mm / 0.001" (manufacturer-stated) |
| Jaws | 90mm (600mm), 125mm (1000mm and 1500mm), 200mm (2000mm) (manufacturer-stated) |
| Material | Stainless steel (manufacturer-stated) |
| Standard | DIN862 (manufacturer-stated) |
| Scale | Lines and figures etched against a satin chrome finish (manufacturer-stated) |
Key specifications
| Part number | Range | Jaws (manufacturer-stated) | Reading (manufacturer-stated) |
|---|---|---|---|
| CV500MEFALJ | 500mm | - | 0.02mm / 0.001" |
| CV600MEFA | 600mm / 24" | 90mm | 0.02mm / 0.001" |
| CV1MMEFA | 1000mm / 40" | 125mm | 0.02mm / 0.001" |
| CV1.5MEFA | 1500mm / 60" | 125mm | 0.02mm / 0.001" |
| CV2MEFA | 2000mm / 80" | 200mm | 0.02mm / 0.001" |
Range, jaws and reading for each part number.
Selecting the right option
Choose the range to suit the longest part: 500mm (CV500MEFALJ), 600mm / 24" (CV600MEFA, 90mm jaws), 1000mm / 40" (CV1MMEFA, 125mm jaws), 1500mm / 60" (CV1.5MEFA, 125mm jaws) or 2000mm / 80" (CV2MEFA, 200mm jaws). All read 0.02mm / 0.001" (manufacturer-stated). For work up to 300mm, see the fine adjustment vernier calipers.
Related products
Shorter ranges, 150mm / 6" to 300mm / 12": fine adjustment vernier calipers. Locking screw model, 150mm / 6": CV150ME vernier caliper.
