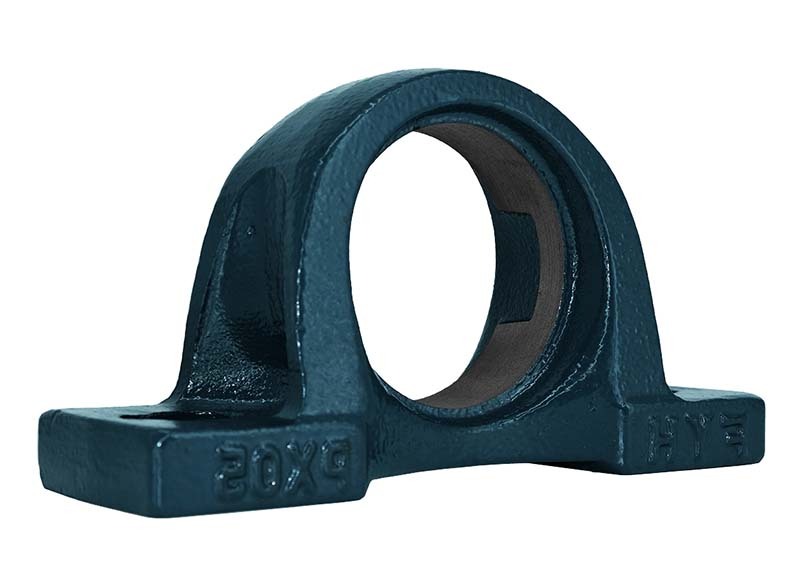

FYH Cast iron pillow block housing, M14, 25mm (1")

FYH PX is a cast iron pillow block (plummer block) bearing housing in the medium duty range. Select the housing from the drop-down; each size has its own dimension set in the Model Details. These pillow block housings are supplied without an insert bearing. A complete unit such as UCPX09 is the PX09 housing fitted with a UCX09 insert bearing, which is ordered separately (see Related products).

Where this product is used

• Conveyor head, tail and idler shafts
• Fans, blowers and pumps
• Line shafts and general industrial machinery
• Agricultural and processing equipment

Features

• Cast iron housing, X series (diameter series code X, medium duty)
• Insert bearings for these housings: UC (set screw) in all sizes, UK (tapered bore, adapter sleeve) in all sizes
• Housing numbers: PX05 to PX12 (8 sizes)
• Shaft diameter, metric: 25 to 60mm

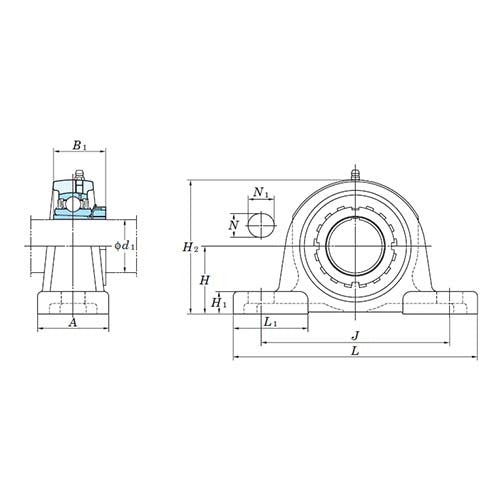

Key specifications

Fitting and use

The housing is supplied without an insert bearing. Order the insert separately and lock it to the shaft in the way its own type requires: a UC insert locks to the shaft with two set screws; a UK insert is a tapered bore insert that mounts on the shaft with an adapter sleeve.

Mount the housing on a flat, rigid surface using the bolt size and bolt hole spacing J shown for the size.

Choosing the right option

Match the housing to the insert bearing and the shaft. For example PX09 takes UCX09 on a 45mm shaft.

Choose the metric size for a metric shaft; for an inch shaft pick the same housing and order the insert with the matching dash number (for example UCX09-27).

The Bolt Size option is the mounting bolt for the housing unit tables (inch equivalent in the Model Details).

Not sure which insert or housing suits your shaft?

See also: UCX metric set screw insert bearings, UCX inch set screw insert bearings, P200 pillow block housings, P300 pillow block housings.
