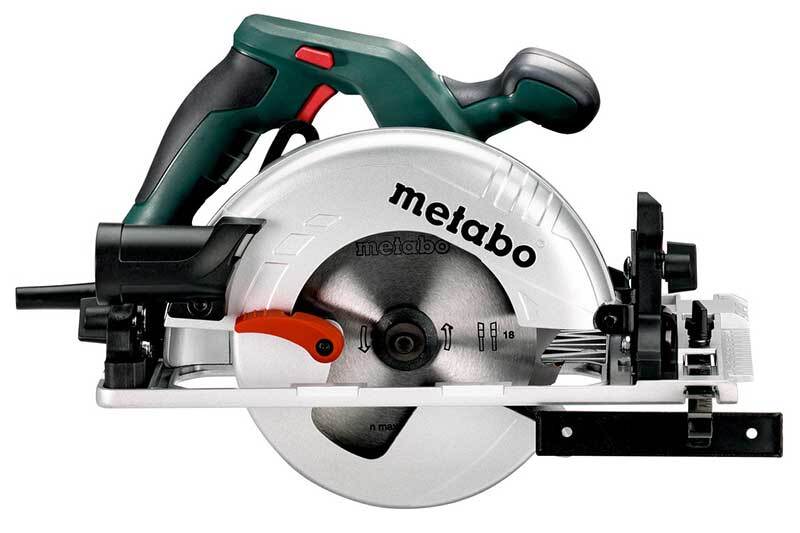

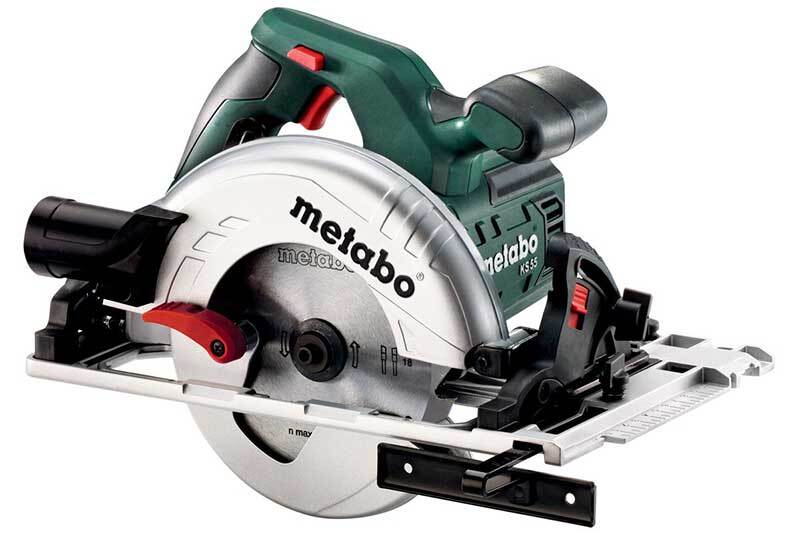

Metabo Circular Saw - KS 55 FS (600955000)

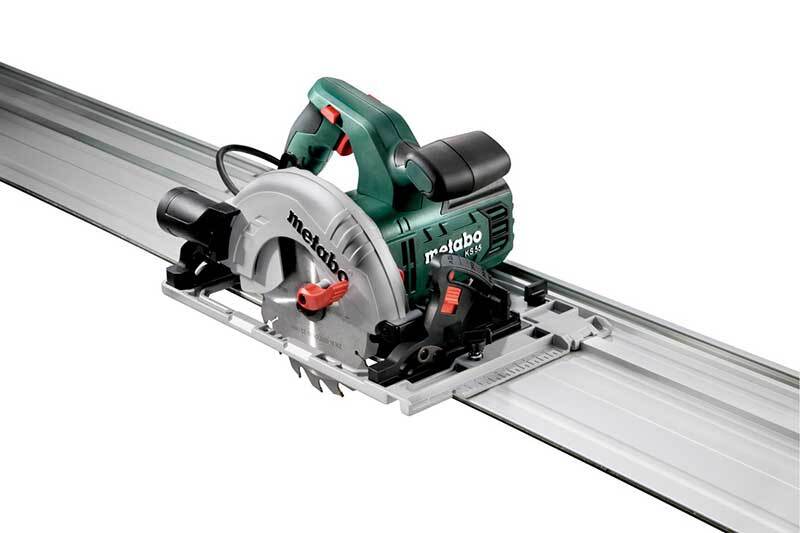

• Robust circular saw, can be used directly on guide rails from Metabo and also Mafell, Bosch, Festool, Makita, HiKOKI, Hilti, and other manufacturers.
• Light guide plate made from die-cast aluminium.
• Grip area with the non-slip soft-grip surface.
• Clearly visible cutting indicator for precise sawing after the initial cut.
• 0° position re-adjustable for highest cutting precision.
• Extraction possibility by means of connecting an all-purpose vacuum cleaner.
• Adjustment of the machine without tools for using with the precision guide rail.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Carbide circular saw blade (18 teeth)
• Hexagonal wrench
• Parallel guide
• Extraction connector

Technical Data

• Rated input power: 1200W
• Maximum cutting depth at 90°: 55mm / 2 5/32"
• Saw blade Ø x bore: 160 x 20mm // 6 1/4 x 0.787"
• No-load speed: 5600rpm

Characteristics

Rated input power
1200 W
Output power
670 W
Maximum cutting depth at 90°
55 mm / 2 5/32 "
Maximum cutting depth at 45°
39 mm / 1 17/32 "
Max. cutting depth with guide rail
50 mm / 1 31/32 "
Saw blade √ò x bore
160 x 20 mm // 6 1/4 x 0.787 "
Swivel range from / to:
‌ 0 / + 47 °
No-load speed
5600 rpm
Revolutions at rated load
4400 rpm
Max. cutting speed
47 m/s / 154 ft/s m/s
Torque
5 Nm / 44 in-lbs
Weight (without power cable)
4 kg / 8.8 lbs
Cable length
4 m / 13 ft

Vibration

Sawing chipboards
3.4 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
93 dB(A)
Sound power level (LwA)
104 dB(A)
Uncertainty of measurement K
3 dB(A)
