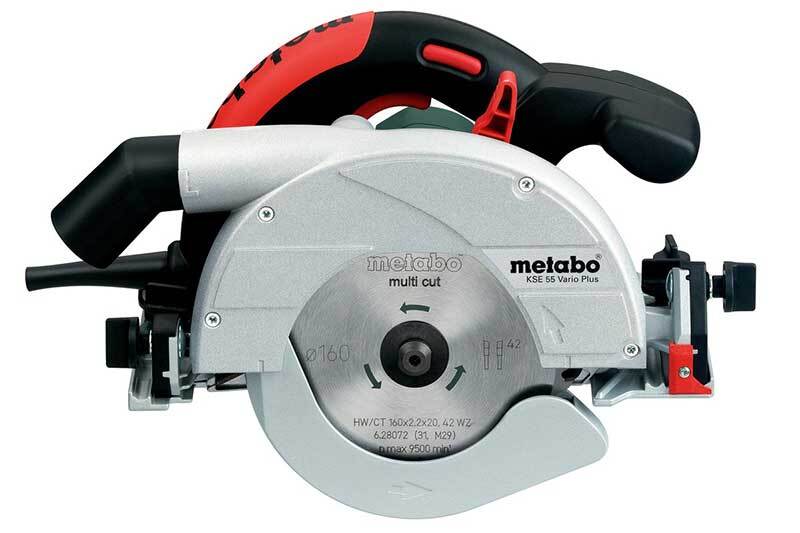

Metabo Circular Saw - KSE 55 Vario Plus (601204700)

• Combined plunge cut circular saw – two high-quality functions in one machine.
• Metabo S-automatic torque limiting clutch: mechanical decoupling of the drive for safe working should the saw blade stop unexpectedly.
• Convenient saw blade change due to simultaneous pendulum saw guard and saw blade stop.
• Particularly light due to magnesium die-cast saw housing and guide plate.
• Grip area with the non-slip soft-grip surface.
• Sawing close to the wall is possible.

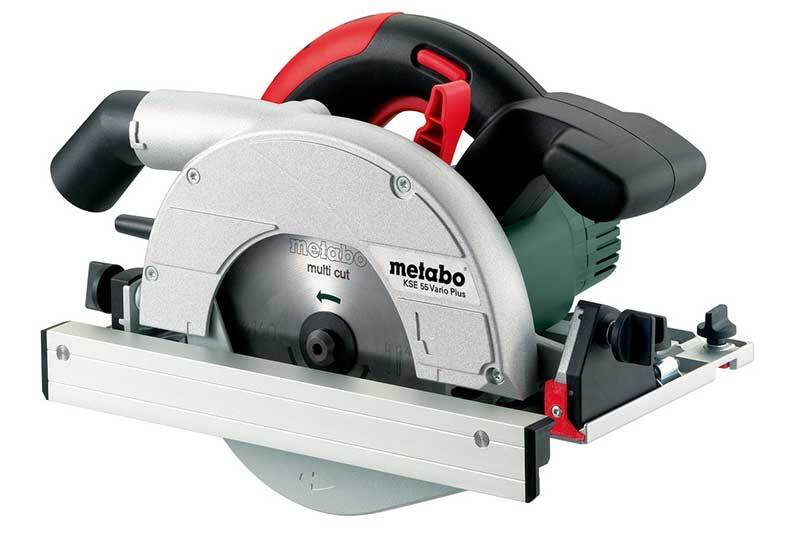

• A precise, double-track aluminium parallel guide makes cutting to size easier.
• Clearly visible cutting indicator for precise sawing after the initial cut.
• 0° position re-adjustable for highest cutting precision.
• Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load.
• Overload protection: protects the motor from overheating.
• Extraction possibility by means of connecting an all-purpose vacuum cleaner.
• The sawdust ejection nozzle for any working position can be rotated and locked individually.
• Auto-stop carbon brushes to protect the motor.
• Adjustment of the machine without tools for using with the precision guide rail.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Carbide circular saw blade (42 teeth)
• Hexagonal wrench
• MetaLoc case
• Parallel guide
• Extraction connector

Technical Data

• Rated input power: 1200W
• Maximum cutting depth at 90°: 55mm / 2 5/32"
• Saw blade Ø x bore: 160 x 20mm // 6 1/4 x 0.787"
• No-load speed: 2000 - 5200rpm

Characteristics

Rated input power
1200 W
Output power
700 W
Maximum cutting depth at 90°
55 mm / 2 5/32"
Maximum cutting depth at 45°
40 mm / 1 9/16"
Saw blade Ø x bore
160 x 20 mm // 6 1/4 x 0.787"
Swivel range from / to:
‌ 0 / + 45 °
No-load speed
2000 - 5200 rpm
Revolutions at rated load
5200 rpm
Max. cutting speed
44 m/s / 144 ft/s m/s
Torque
5 Nm / 44 in-lbs
Weight (without power cable)
3.7 kg / 8.2 lbs
Cable length
4 m / 13 ft

Vibration

Sawing chipboards
2.5 m/s²
Uncertainty of measurement K
1.5 m/s²

Noise Emission

Sound pressure level
94 dB(A)
Sound power level (LwA)
105 dB(A)
Uncertainty of measurement K
3 dB(A)
