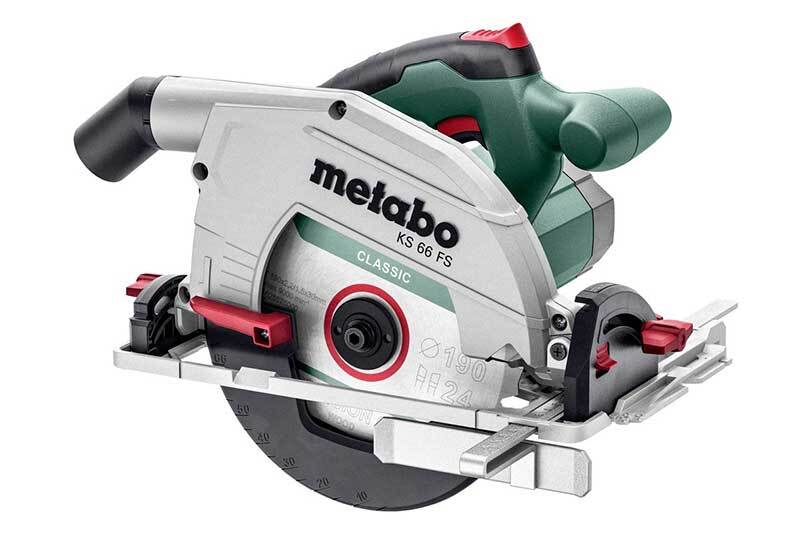

Metabo Circular Saw - KS 66 FS (601066000)

• Robust circular saw, can be used directly on guide rails from Metabo and also Mafell, Bosch, Festool, Makita, HiKOKI, Hilti, and other manufacturers.
• Fast, precise crosscuts thanks to easy coupling with a Metabo cross-cutting rail.
• Light guide plate made from die-cast aluminium.
• Grip area with the non-slip soft-grip surface.
• Clearly visible cutting indicator for precise sawing after the initial cut.
• 0° position re-adjustable for highest cutting precision.
• Extraction possibility by means of connecting an all-purpose vacuum cleaner.
• The sawdust ejection nozzle for any working position can be rotated and locked individually.

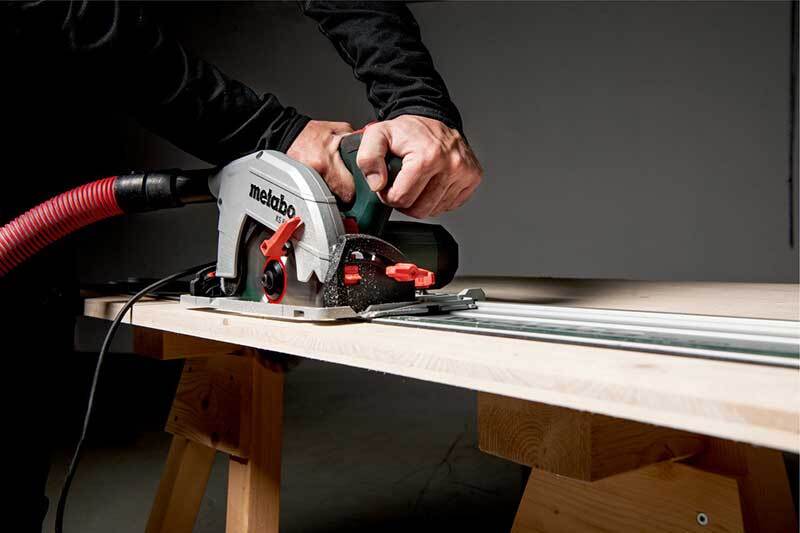

• Precision guide rail available as an accessory.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Carbide circular saw blade (24 teeth)
• Parallel guide
• Hexagonal wrench

Technical Data

• Rated input power: 1500W
• Maximum cutting depth at 90°: 66mm / 2 5/8"
• Saw blade Ø x bore: 190 x 30mm // 7 1/2 x 1 3/16 "
• No-load speed: 5000rpm

Characteristics

Rated input power
1500 W
Output power
840 W
Maximum cutting depth at 90°
66 mm / 2 5/8 "
Maximum cutting depth at 45°
47 mm / 1 7/8 "
Max. cutting depth with guide rail
61 mm / 2 13/32 "
Saw blade Ø x bore
190 x 30 mm // 7 1/2 x 1 3/16 "
Swivel range from / to:
‌ 0 / + 47 °
No-load speed
5000 rpm
Revolutions at rated load
3800 rpm
Max. cutting speed
50 m/s
Weight (without power cable)
4.9 kg / 10.8 lbs
Cable length
4 m / 13 ft

Noise Emission

Sound pressure level
95 dB(A)
Sound power level (LwA)
106 dB(A)
Uncertainty of measurement K
3 dB(A)
