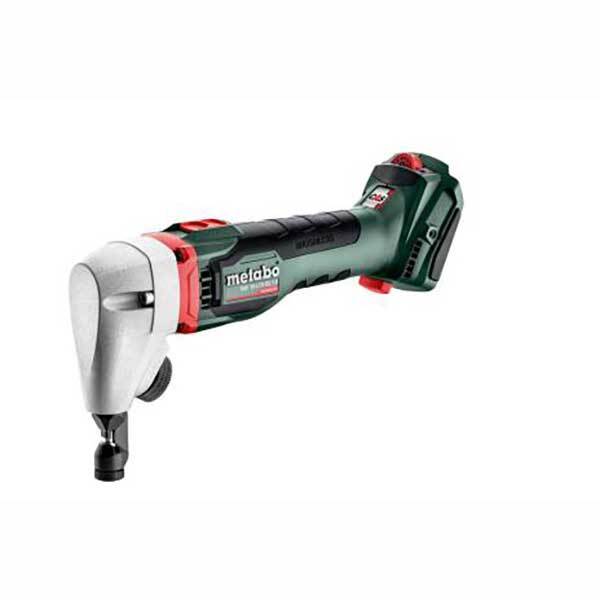

Metabo Brushless Metal Sheet Nibbler - NIV 18 LTX BL 1.6

• Handy, powerful cordless nibblers for effortless cutting of flat and shaped sheets.
• Good cornering ability for notches and interior cut-outs of a radius of 40 mm or more.
• Fast, tool-free adjustment of cutting direction by up to 360°, in 45° steps.
• High feed rate for faster working, thanks to an efficient brushless motor.
• Infinitely adjustable cutting speed for individual customisation to the given material and task at hand.
• Distortion- and spark-free cutting, without the annoyance of metal dust.
• Comfortable handling thanks to low weight, slim grip area and switch located on the top.
• Metabo Quick: tool-free quick changing of dies and punches.
• Electronic overload protection for long service life.
• With chip collection bag to protect against contact corrosion from ejected chips.

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to the content and product description.
• Accessories are included only if listed in the contents.

Contents

• Punch
• Combo-spanner
• without battery pack, without charger
• Die
• Chip Collection Bag

Technical Data

• Battery voltage: 18 V
• Max. sheet thickness for steel: 400 N/mm²: 1.6mm / 0.0629"
• Strokes in idle: 660 - 2360 rpm
• Smallest curve radius: 40 mm / 1.5748"

Characteristics

Type of battery pack
Li-Power
Battery voltage
18 V
Max. sheet thickness for steel: 400 N/mm²
1.6 mm / 0.0629 "
Max. sheet thickness for steel: 600 N/mm2
1.2 mm / 0.0472 "
Max. sheet thickness for steel: 800 N/mm2
0.7 mm / 0.0275 "
Max. sheet thickness for aluminium: 250 N/mm2
2 mm / 0.0787 "
Strokes in idle
660 - 2360 rpm
Cutting speed
1.2 - 2.6 m/min // 47.2 - 102.3 inch/min
Cutting width
5 mm / 0.1968 "
Starting hole diameter
21 mm / 0.8267 "
Smallest curve radius
40 mm / 1.5748 "
Weight without battery pack
1.3 kg / 2.9 lbs
Weight with battery pack
1.7 kg / 3.7 lbs

Vibration

Cutting of sheets
8 m/s²
Uncertainty of measurement K
1.6 m/s²

Noise Emission

Sound pressure level
96 dB(A)
Sound power level (LwA)
107 dB(A)
Uncertainty of measurement K
3 dB(A
