Metabo 18V 165mm Brushless Circular Saw 4800rpm - Tool Only
Available

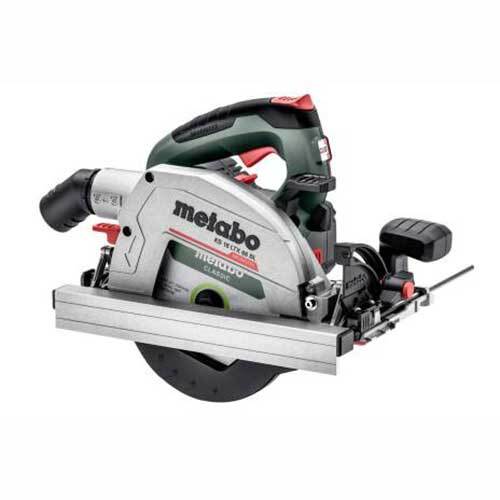

The Metabo KS 18 LTX 66 BL (order number 611866850) is an 18V cordless circular saw with a 165 x 20mm saw blade and a no-load speed of 4800rpm. It is a powerful, light, cordless circular saw for universal use on construction sites.
It has a carbide circular saw blade (18 teeth), a parallel guide and a hexagonal wrench. The saw is supplied without battery pack and without charger.
Where this product is used

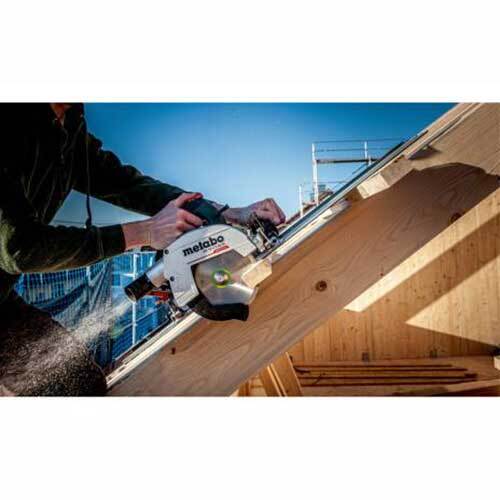

- Universal use on construction sites
- Fast, precise cross cuts when coupled with a Metabo cross cutting rail

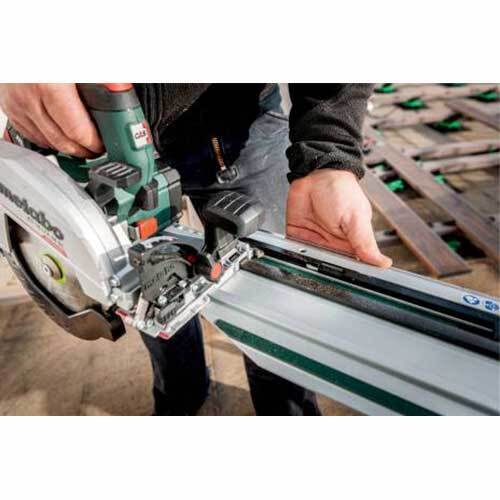

- Cutting along guide rails, with a maximum cutting depth with guide rail of 61mm
- Cutting to a depth of 66mm at 90° and 43mm at 45°
Features
- The aluminium base plate can be used directly on guide rails from Metabo and Mafell, Bosch, Festool, Makita, HiKOKI, Hilti and other manufacturers
- Brushless motor, used with LiHD high-performance battery packs

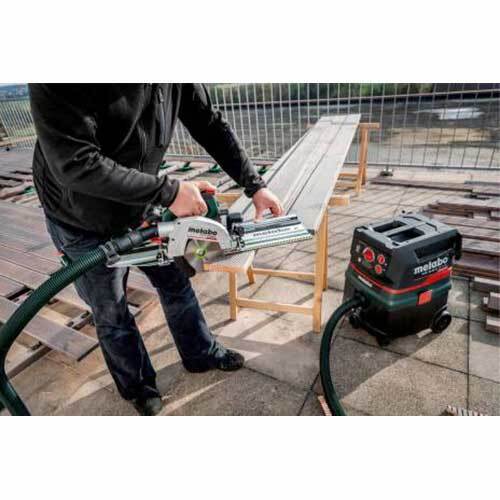

- Automatic switching on and off of a connected vacuum cleaner with CordlessControl (available as accessory)
- Sawdust ejection nozzle for any working position can be rotated and locked individually
- Integrated LED work light for illumination of the cutting line
- 0° position re-adjustable for cutting precision
- Clearly visible cutting indicator for precise sawing after the initial cut
- Aluminium die-cast saw housing
- Handle with non-slip soft-grip surface
- This product can be combined with all 18V battery packs and chargers of the CAS brands
Key specifications
| Specification | Detail |
|---|---|
| Brand | Metabo |
| Model | KS 18 LTX 66 BL |
| Order number | 611866850 |
| Battery voltage | 18V |
| Swivel range from / to | 0 / +46° |
| Adjustable cutting depth | 0 - 66mm (0 - 2 19/32") |
| Maximum cutting depth at 90° | 66mm (2 19/32") |
| Maximum cutting depth at 45° | 43mm (1 11/16") |
| Max. cutting depth with guide rail | 61mm (2 13/32") |
| Saw blade Ø x bore | 165 x 20mm (6 1/2 x 5/8") |
| No-load speed | 4800rpm |
| Max. cutting speed | 43m/s |
| Weight without battery pack | 3.5kg |
| Weight with battery pack | 4.5kg |
| Vibration, sawing chipboards | 2.5 m/s² (K 1.5 m/s²) |
| Sound pressure level | 90 dB(A) |
| Sound power level (LwA) | 98 dB(A) (K 3 dB(A)) |
Supplied with
- Carbide circular saw blade (18 teeth)
- Parallel guide
- Hexagonal wrench
- Without battery pack, without charger
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Metabo 18V 165mm Brushless Circular Saw 4800rpm - Tool Only
SKU: A0174999 | Model: 611866850
The KS 18 LTX 66 BL (611866850) weighs 3.5kg without battery pack and 4.5kg with battery pack. It is supplied without battery pack and without charger.
