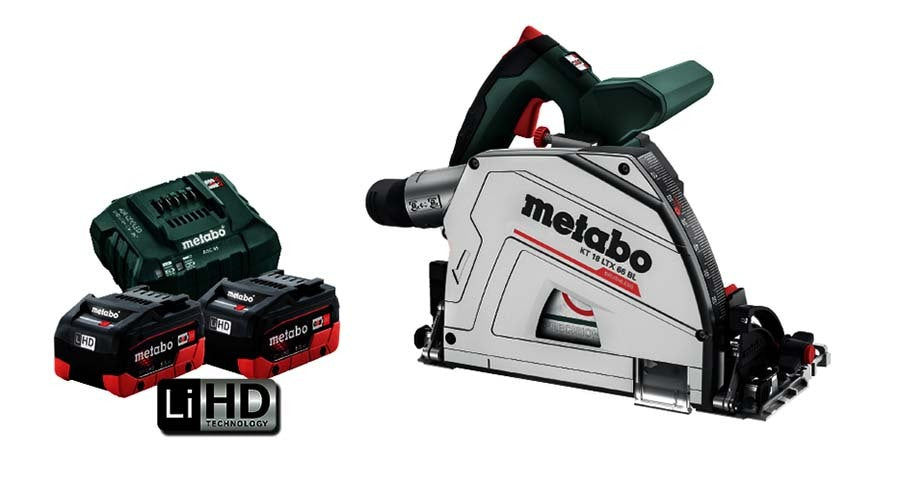

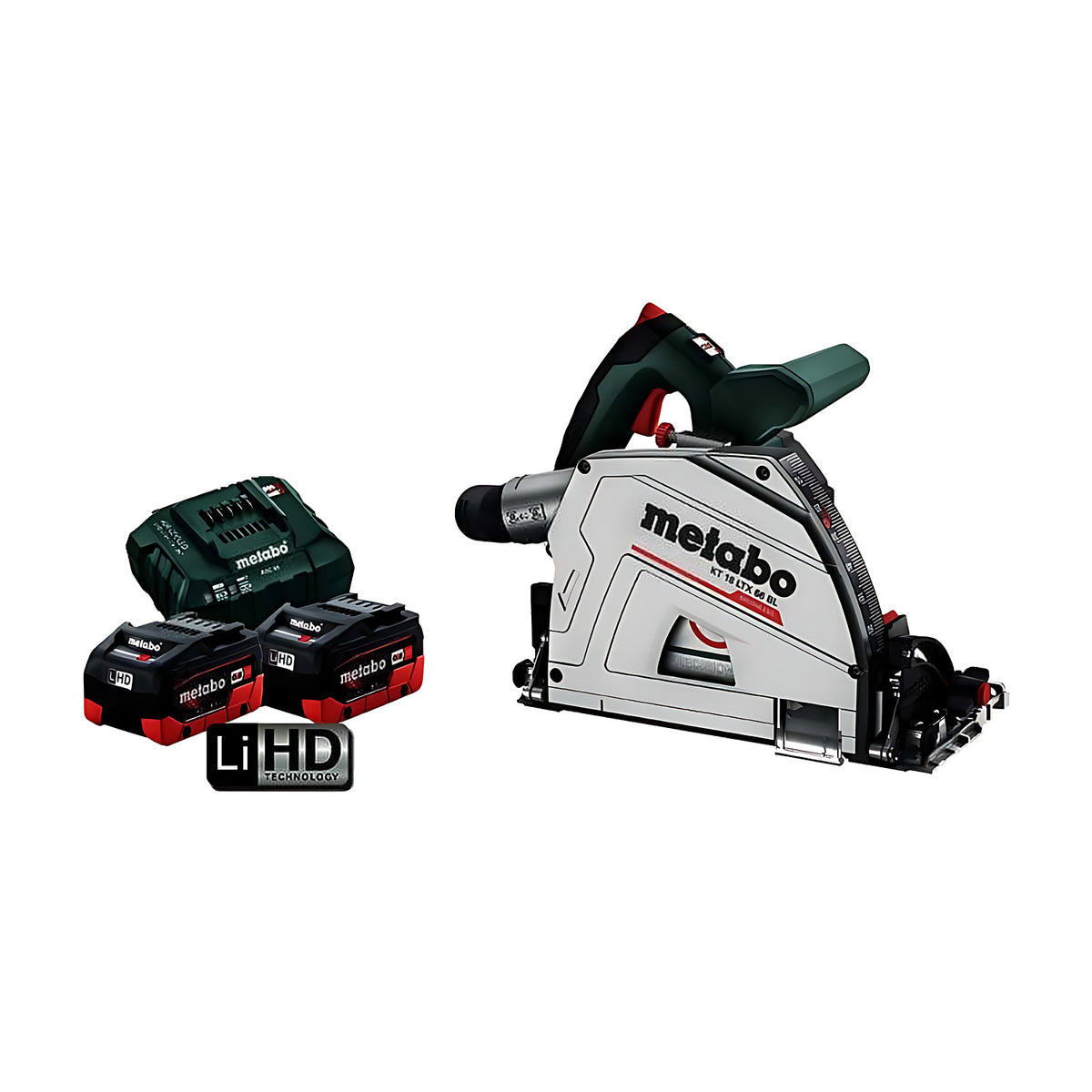

Metabo KT 18 LTX 66 BL 5.5 K 18V 165mm Brushless Plunge Circular Saw Kit - AU60186600

Kit Includes

• 1 x Metabo 18V 165mm Brushless Plunge Cut Circular Saw 2250 - 5000rpm - Tool Only - KT 18 LTX 66 BL (601866840)
• 2 x Metabo 18V 5.5 Ah LiHD Battery Pack (625368000)
• 1 x Metabo Air Cooled Slide-On Battery Pack Charger 55W (ASC 55), 12 -36V (627047000)

Metabo 18V 165mm Brushless Plunge Cut Circular Saw 2250 - 5000rpm - Tool Only

• Cordless plunge cut saw with brushless motor for powerful plunge cuts and precise cuts up to a depth of 66 mm (!)
• Adjustable fit without play on the guide rails from Metabo and other manufacturers for precise cutting results.
• LIHD high-performance battery packs and the Metabo brushless motor guarantee maximum power and enduring sawing (battery pack & charger not included)
• Versatile application thanks to variable speed for different materials
• Double guide for precise setting of the cutting depth with and without guide rail (guide rail not included)
• With undercut function for precise transitions, 0° and 45° position readjustable for highest cutting precision
• Sawing close to the wall possible down to 14 mm
• Low-dust sawing thanks to large-volume dust bag or by connecting a vacuum cleaner
• Sawdust ejection nozzle for any working position can be rotated and locked individually
• Fast brake stops the saw blade quickly and improves safety
• Viewing window in the guard for precise cutting guidance
• Fast and easy changing of the sawblade with lever for locking plunge position and spindle stop
• With metaBOX, the intelligent solution for transport and storage

Note

• The machine shown may differ in equipment and technical details depending on the configuration.
• Kindly pay attention to contents and product description.
• Accessories are included only if listed in the contents.

Contents

• Saw blade "precision cut wood - classic" 165x20 Z42 WZ 5°
• Dust bag
• Hexagonal wrench
• metaBOX 340
• without battery pack, without charger

Technical Data

• Characteristics Type of battery pack: Li-Power Battery voltage: 18 V Swivel range from / to: - 1 / + 46 ° Adjustable cutting depth: 0 - 66 mm // 0 - 2 19/32 " Maximum cutting depth at 90°: 66 mm / 2 19/32 " Maximum cutting depth at 45°: 43 mm / 1 11/16 " Max. cutting depth with guide rail: 61 mm / 2 13/32 " Saw blade Ø x bore: 165 x 20 mm // 6 1/2 x 5/8 " No-load speed: 2250-5000 rpm Max. cutting speed: 43 m/s / 141 ft/s Weight without battery pack: 4.3 kg / 9.5 lbs
• Vibration Sawing chipboards: 2.5 m/s² Uncertainty of measurement K: 1.5 m/s²
• Noise Emission Sound pressure level: 90 dB(A) Sound power level (LwA): 101 dB(A) Uncertainty of measurement K: 3 dB(A)

Metabo 18V 5.5 Ah LiHD Battery Pack

• LiHD battery packs for ultimate performance and extremely long application with minimal temperature generation.
• Intelligent battery management for long-lasting battery packs with a 3-year warranty.
• Patented "AIR COOLED" charging technology.
• Permanent Electronic Single Cell Protection (ESCP) when charging, for a particularly long life.
• Processor-controlled charge and discharge management.
• Capacity display with almost no self-discharge.

Technical Data

• Battery pack voltage: 18 V
• Battery pack capacity: 5.5 Ah
• Energy: 99 Wh
• Weight: 980 g

Metabo Air Cooled Slide-On Battery Pack Charger 55W (ASC 55), 12 -36V

• Patented "AIR COOLED" charging technology for short charging times thanks to cooling the battery pack during the charging cycle.
• Optimal communication between battery pack and charger for maximum service life of the battery packs.
• 3-year warranty on all Metabo battery packs and chargers irrespective of the number of charging cycles.
• Many brands, one battery pack system: charger for charging all battery packs of the CAS.
• "Air Cooled" function: the patented principle is based on air-cooling the battery pack during the charging process.
• The battery packs are gently cooled down to the required charging temperature, and then during the charging process are constantly maintained at optimum temperature.
• With this principle, a higher tool life of the battery packs and up to 30% shorter total charging time can be achieved.

Technical Data

• Battery voltage: 12 - 36 V
• Mains voltage: 220 - 240 V
• Mains frequency: 50 - 60 Hz
• Max. charging current: 3 / 4 A
• Output rating: 55 W
• Charging time for 18 V/4.0 Ah: 80 min
• Charging time for 18 V/8.0 Ah: 160 min
• Weight: 582 g / 20.5 oz
